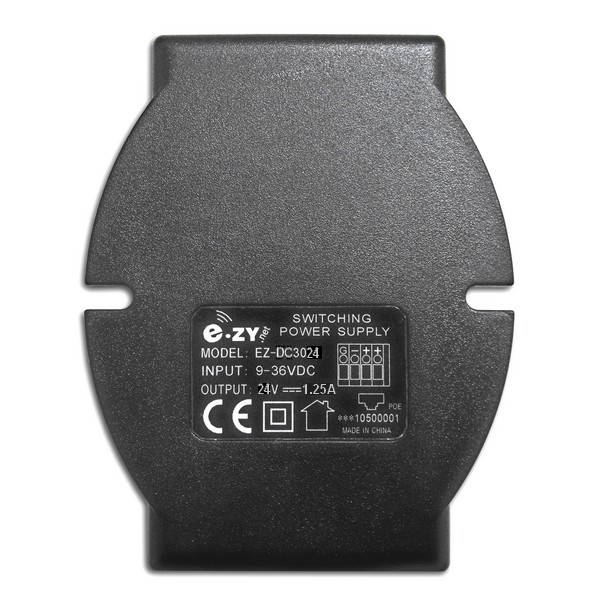

The new EZ-DC3024 DC to DC Converter and PoE Injector with LEDs is made from TPEE material in an aesthetic package and is available with two RJ45 ports to act as “Data-In” and “PoE+Data out”.
The new EZ-DP3024 indoor PoE Injector allows you to use your space efficiently when installing your wireless equipment through the smart wall mount case.
The two PoE LED/ Red and ETH LED/Green allows fast and easy control of your equipment.

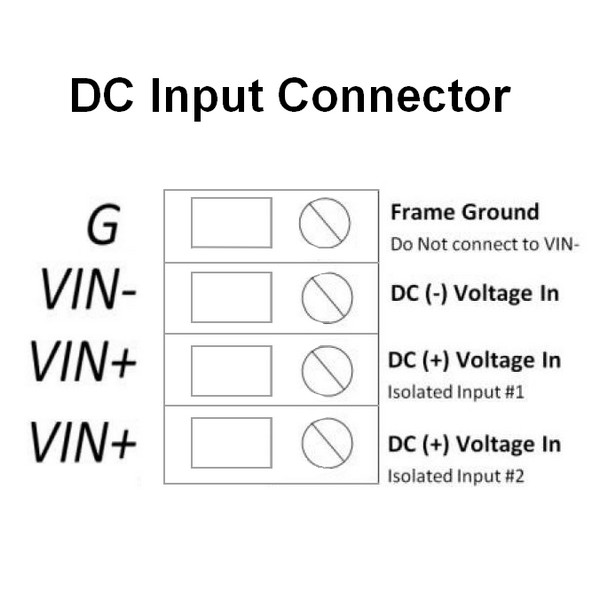

The dual DC input allows you to connect two power sources for redundancy like DC power supplies and 12/24 Volt battery systems, for primary and backup power sources.
Highlights:
9-36v to 24v/1.25A DC to DC Converter + PoE Injector LEDs - Desktop
Input: 9-36V DC
Output: 24V DC / 1250mA
PoE LED : RED - When the PoE Injector is powered on.
ETH LED : GREEN - When Access Point is plugged in.
Features:
* Fast and easy wall mount case.
* All-In-One Power Supply and POE Injector with LED's Included.
* Suitable for 12/24 Volt battery systems.
|
TECHNICAL SPECIFICATIONS |
|
DC Input Voltage |
9-36V |
|

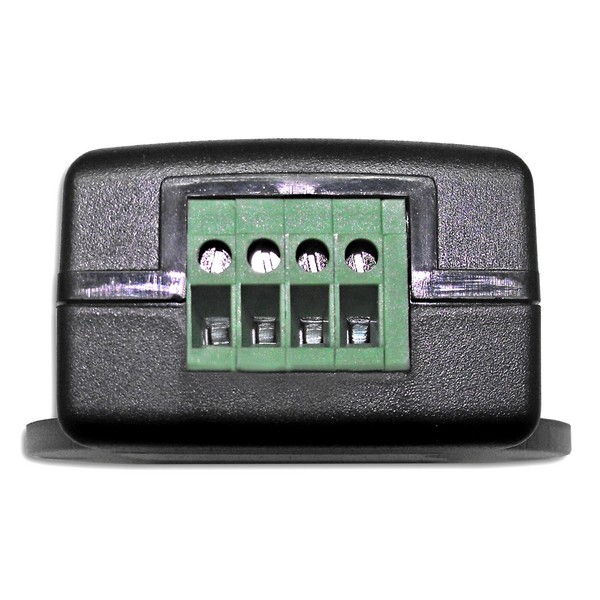

Input Connector |
Screw Type Compression Wire Terminal |
|
Output Connector |
RJ45 (Shielded) |
|
DC Inputs |
Dual Input for connecting 2 power sources |
|
PoE Injector Type |
Integrated PoE Injector |
|
Efficiency |
80% |
|
DC Output Voltage |
24V |
|
DC Output Current |
1.25A |
|
Output Power (Max) |
30 W |
|
Self Consuption Power |
1 W |
|
Line Regulation |
+/- 1% |
|
Load Regulation |
+/- 1% |
|
Ripple |
1 % |
|
Noise |
1 % |
|
Protection |
OCP OVP SCP OPP |
|
DC Connector Dimensions |
22,9x18,2 mm |
|
LED Functions |
Red/PoE Activity, Green/ETH Activity |
|
Mount Type |
Floor / Desktop / Wall Mount |
|
Certifications |
CE / UL / GS / RoHS / EMC |
|
Operating Temperature |
-20ºC~60ºC |
|
Storage Temperature |
-20ºC~+85ºC |
|
Operating Humidity (RH) |
% - 90% |
|
Dimensions |
90,3x70x33mm |
|
Weight |
143 gr |
|
Origin |
China |
