AG-HP-5G27
Ubiquiti AG-HP-5G27, AirGridM5, AirMax AP-CPE (NEW)
[1333][AG-HP-5G27]
The product is
no longer available
Prices exclude VAT

Ubiquiti AG-HP-5G27, AirGridM5, AirMax AP-CPE (NEW)

UPC:810354024849

AG-HP-5G27

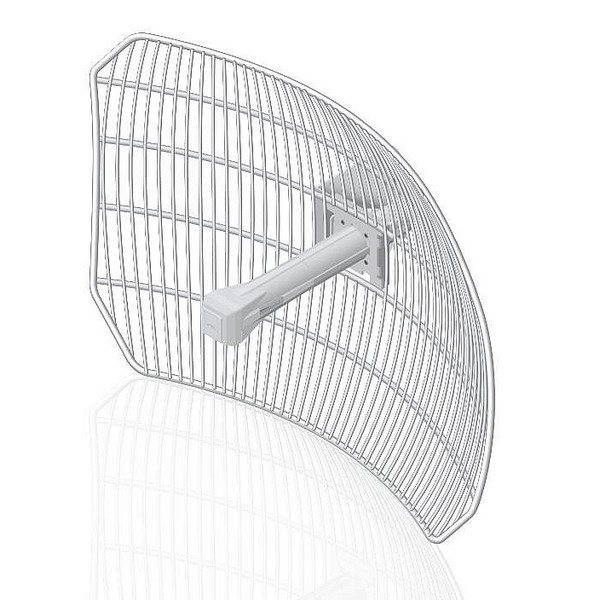

Featuring a grid reflector design and single-polarity, narrow-beamwidth performance, the airGrid M is ideal for applications requiring low-cost and lightweight CPE devices.

Designed to be a highly directive CPE device, the airGrid M performs at a range of up to 50+ km.

Ubiquiti’s InnerFeed technology seamlessly combines the radio and reflector feed for maximum RF performance.

Exhibiting outstanding performance in outdoor environments.

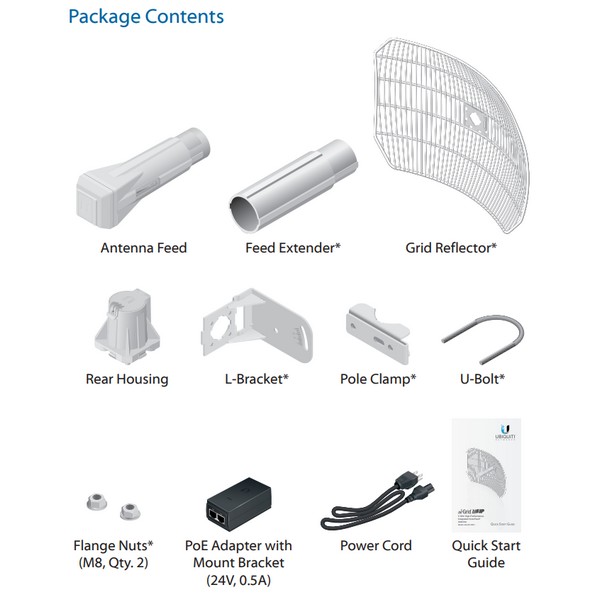

The airGrid M requires no tools for assembly; only a single wrench is required for pole-mounting.

Specifications:
Dimensions(Mount Included) 620 x 460 x 360 mm
Weight (Mount Included) 2585 g
Wind Survivability 200 km/h
Wind Loading 102 N @ 200 km/h
Operating Frequency 5725 - 5850 MHz
VSWR 1.5:1
Gain 27 dBi


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
