IP Control » LANKON-054
Control board ON/OFF/PWM - TR
[LANKON-054]
Price: 15,18€
 Order or Qty  Price
 > 500€  5+   14,88€
 > 1000€  10+   14,57€
 > 2000€  20+   14,27€
 > 5000€  40+   13,97€
 > 10000€  100+   13,66€

Control board ON/OFF/PWM - TR

In Stock: 5
Order Qty:

Control board

The board is designed as an overlay on Lan Controller in the second version and is located in the original housing. It is equipped with 4 high-power MOSFETs that can be used to power devices with power consumption 1-3a

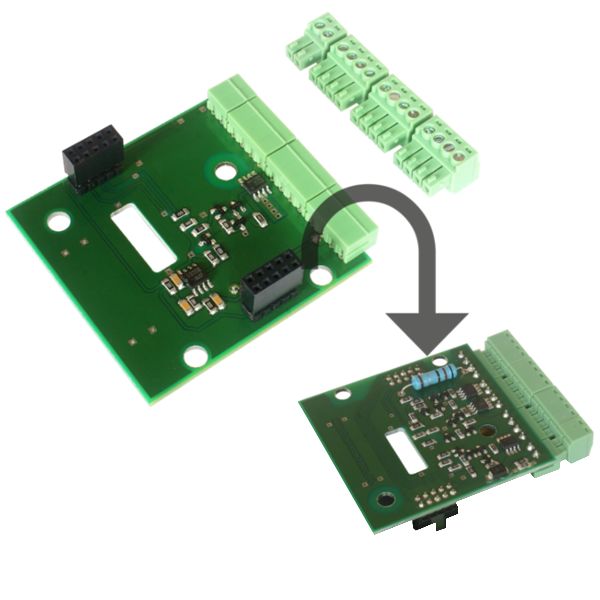

Control board ON / OFF / PWM - overlay TR

The board is designed as an overlay on Lan Controller in the second version and is located in the original housing.

It is equipped with 4 high-power MOSFETs that can be used to power devices with power consumption 1-3a.

By controlling the switching of the transistors of the panel LAN Controller (OUT1-4 output) can be switched on or off load, Power by supply input

- Maximum load is approximately 3A if we use 1 output or 1A it if we use all outputs at the same time.

- TR cap also includes 0.1ohma resistor to measure the current through in INP4 and voltage measurement in output INP5.

Technical Specifications
Number of control channels 4
Control functions ON / OFF / PWM for power supply
Voltage monitor 0-36V
Current monitor 0-3ADC
Supply voltage 9-28V
Maximum current control 1A x 4 channels or 3A x 1 channel

- Power from board TR supplies power Lan Controller, you need to disconnect other power, including POE!

- Power from Lan Controller does not provide supply Board TR
