Connector » N-type » EZ-NF240

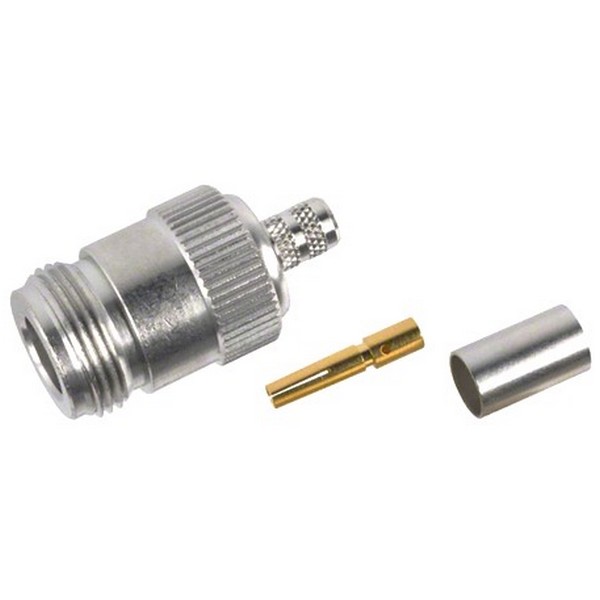

N-Type Female Crimp connector for 240 series cable
[EZ-NF240]
Price: 1,60€
 Order or Qty  Price
 > 500€  5+   1,57€
 > 1000€  10+   1,54€
 > 2000€  20+   1,50€
 > 5000€  40+   1,47€
 > 10000€  100+   1,44€

N-Type Female Crimp connector for 240 series cable

In Stock: 693
Order Qty:

N-type Female Crimp connector for 240 series cable.

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The N series connector is impedance matched to 50 ohm cables.

Materials/Finish :
Body Brass Nickel
Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a

Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min

Connector
N-type
Male thread
Female center pin

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
