Connector » N-type » EZ-NB195

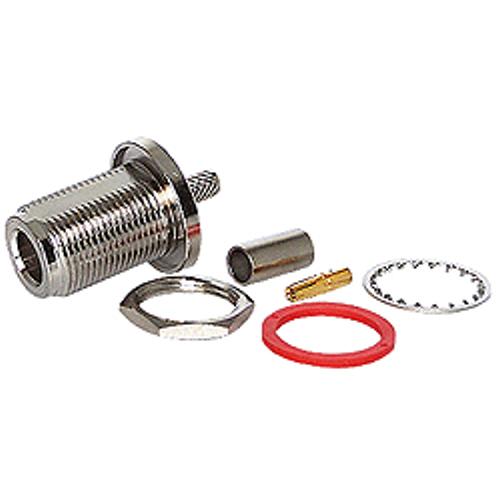

N-Τype Female Bulkhead Crimp connector for 195, RG-58 series cables
[EZ-NB195]
Price: 1,30€
 Order or Qty  Price
 > 500€  5+   1,27€
 > 1000€  10+   1,25€
 > 2000€  20+   1,22€
 > 5000€  50+   1,20€
 > 10000€  100+   1,17€

N-Τype Female Bulkhead Crimp connector for 195, RG-58 series cables

In Stock: 167
Order Qty:

N-type Female Bulkhead Crimp connector for 195 series cable.

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The N series connector is impedance matched to 50 ohm cables.



Materials/Finish :
Body Brass

Nickel

Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a



Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min



Connector
N-type
Male thread
Female center pin Bulkhead
