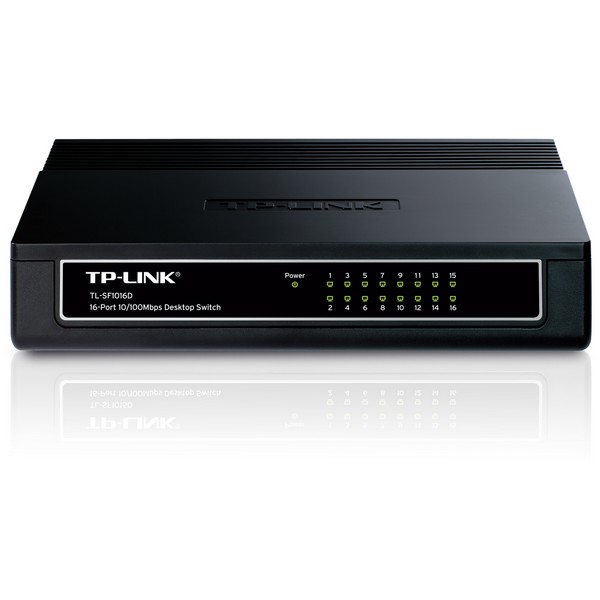

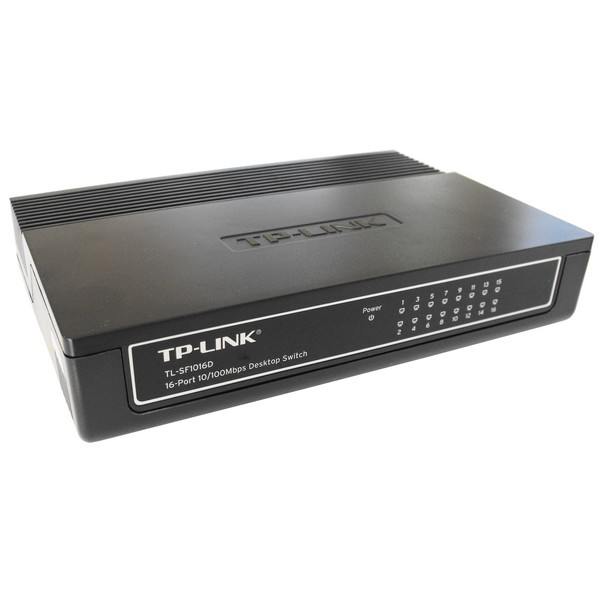

TL-SF1016D 16-port 10/100Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
| Specifications |
|
Standards and Protocols
|
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
|
|
Basic Function
|
Wire-speed Performance
|
|
MAC Address Auto-Learning and Auto-aging
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
|
|
Backbound Bandwidth
|
3.2Gbps
|
|
MAC Address Table
|
1k
|
|
Forwarding Rate
|
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
|
|
Transmission Method
|
Store-and-Forward
|
|
Ports
|
16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
|
Network Media
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
|
|
LED Indicators
|
Power, Link/Act (1, 2, 3, 4, 5)
|
|
Safety & Emission
|
FCC, CE
|
|
Dimensions (W*D*H)
|
7.9*5.6*1.6 in. (200*142*40 mm)
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Power
|
External Power Adapter
|
