Aerial.net :: N-Type Male to RP-SMA Plug Jumper cable, 200 type, 3 meter

TL-ANT24PT3

N-Type Male to RP-SMA Plug Jumper cable, 200 type, 3 meter
[1133][TL-ANT24PT3]

The product is
no longer available

Prices exclude VAT

N-Type Male to RP-SMA Plug Jumper cable 3 meter (aprox 9 feet).

This is the jumper cable used to mate most TP-Link antennas and access points.

What This Product Does

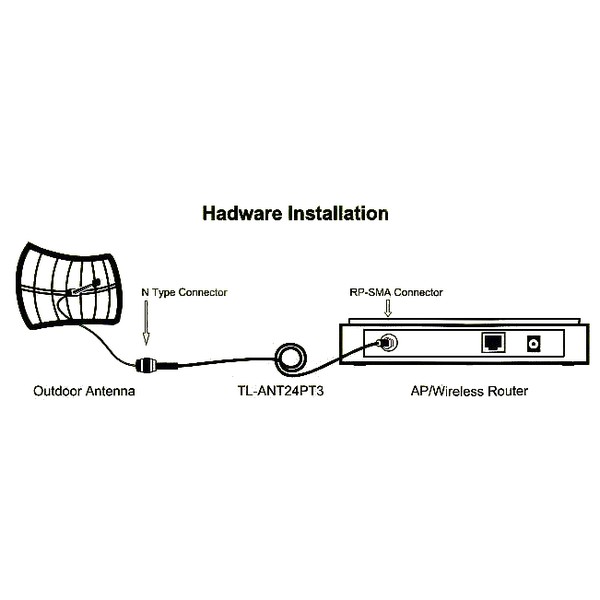

The TL-ANT24PT3 pigtail cable is ideal for flexible connection between rigid outdoor cable and wireless access points/routers. It is very easy to use, no configuration or installation software required.

Features:
* 3m low loss CFD-200 cable
* N Male to RP-SMA Plug connector
* Easy to install and use
* Manufactured using 3m Low Loss CFD-200 cable that provides a higher performance cable with excellent flexibility
* N Male to RP-SMA Plug connector, applicable in most of connections between the wireless AP/Router and antenna

Product Links:
Product Page

Specifications
Length	3 Meters
Frequency Range	DC ~ 3GHz
Impedance	50Ohm Nominal
Insertion Loss	2.9 dB
Connectors	N-Type Male to RP-SMA Plug
VSWR(MAX.)	1.5:1 Max.
operating temp>	-10C~+60C
Storage Temp	-40C~+80C

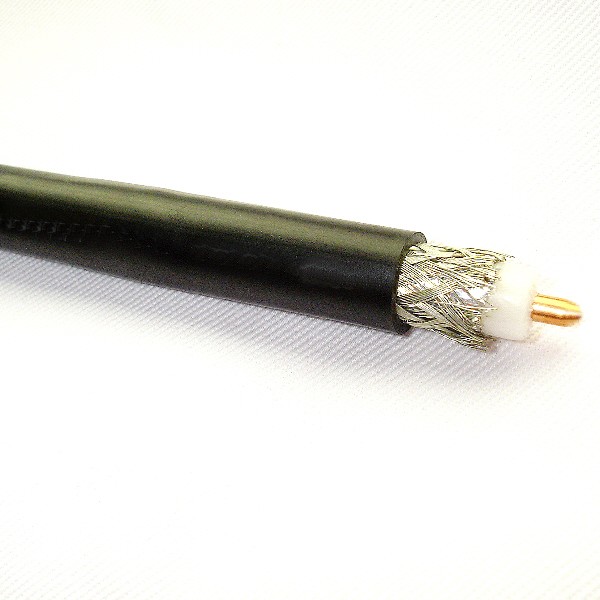

Connector #1 N-Type Male	Connector #2 RP-SMA	CFD 200 Cable

Package Contents:

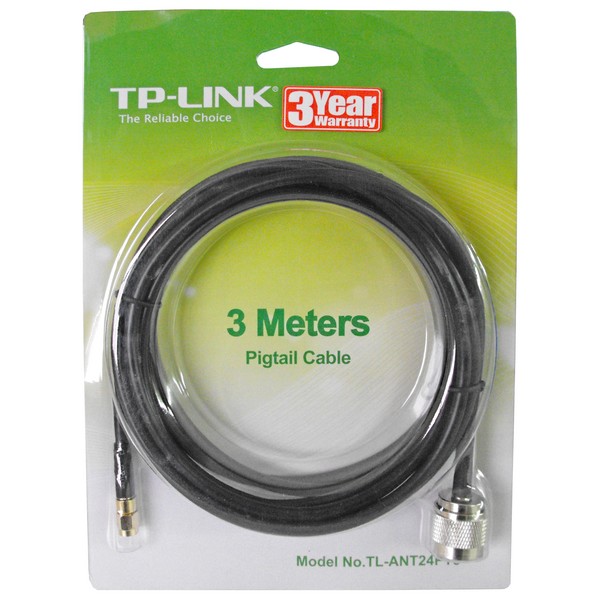

1 x TL-ANT24PT3 N-Type Male to RP-SMA Plug Jumper cable, 200 type, 3 meter

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
