Power Supply » Industrial » SCP-35-24

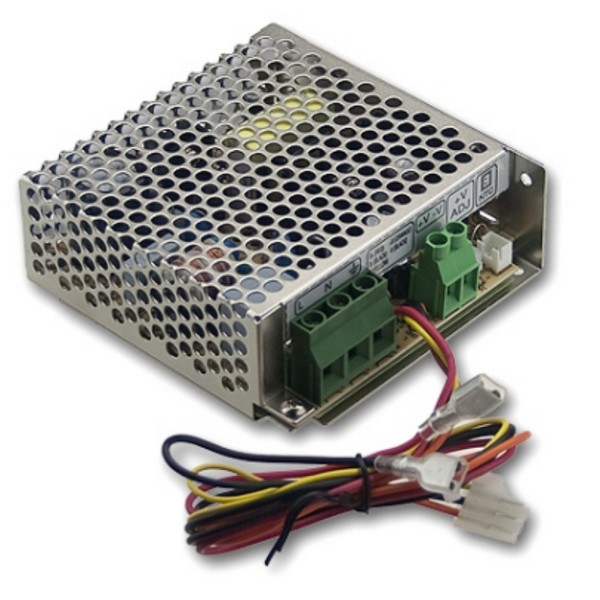

35W 24V/1.4A PS with Battery Charger (UPS Function)
[1200][SCP-35-24]
Price: 14,95€
 Order or Qty  Price
 > 500€  5+   14,65€
 > 1000€  10+   14,35€
 > 2000€  20+   14,05€
 > 5000€  40+   13,75€
 > 10000€  100+   13,46€
Prices exclude VAT

35W 24V/1.4A PS with Battery Charger (UPS Function)

In Stock: 3
Order Qty:
EAN:5901643192105

The new SCP-35-24 power supply is a specific purpose security series product with battery charger and UPS function.

Features:
 * Universal AC input/Full range
 * Protections: Short circuit / Overload / Over voltage/ Battery
 * Polarity protections (by fuse)
 * Built-in temperature compensation function
 * Output voltage detection signal
 * Cooling by free air convection
 * LED indicator for power on
 * No load power consumption <0.75W
 * 100% full load burn-in test

Note: Requires 24V battery (2x12V)  for UPS function.

Specifications
DC Voltage 27.6V
Rated Current 1.4A
Current Range 0-1.4A
Rated Power 38.6W
Input No Load Ripple&Noise 200mVp-p
Voltage Adj. Range +15-5%
Voltage Tollerance +-1.0%
Line Regulation +-1.0%
Load Regulation +-1.0%



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
