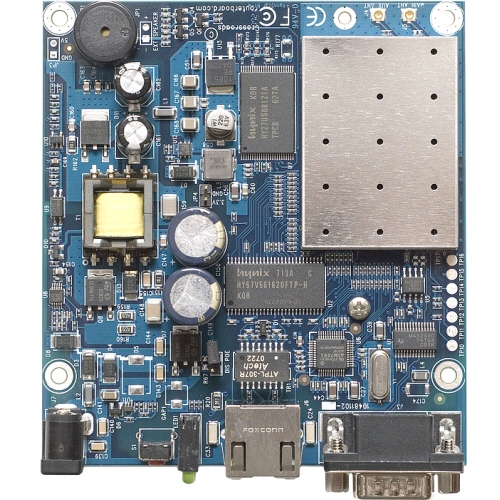

RB/CRD MikroTik Routerboard Crossroads (Level 4)

The product is
no longer available

Prices exclude VAT

RB/CRD MikroTik Routerboard Crossroads (Level 4)

Product Details
PID:	452
SKU:	RB/CRD
Single unit:	14×13×4cm, 190 g
Carton 20pcs:	47×42×15cm, 3.76 Kgs
Return Policy
Refund:	20 days
Store Credit:	40 days
Repair / Warranty:	24 months
Package Contents:
1 x RB/CRD System board in ESP bag

Introducing the RouterBOARD Crossroads.

The perfect AP/CPE. Everything is built in, yet it is the smallest board that MikroTik has ever made.
Faster than most devices in this price range, the RouterBOARD Crossroads has a powerful onboard wireless radio, and supports PoE - just plug in one ethernet cable and your CPE is ready for set-up.

Crossroads also includes RouterOS - the operating system which will turn this small system into a highly sophisticated router/firewall/bandwidth manager or hotspot.

And all this - at a very affordable price

NOTE: Pigtail sold seperately in our U.FL(MHF) pigtail section

Product Links:
Brochure	Manual	Startup Guide	Documentation
Support Page

RouterBOARD Crossroads Specifications :
CPU	MIPS32 4KEc based 184MHz embedded processor
Memory	32MB SDRAM onboard memory chip
Boot loader	RouterBOOT, 1Mbit Flash chip
Data storage	onboard NAND
Ethernet ports	One 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X
Serial ports	One DB9 RS232C asynchronous serial port
Power output	3V and 5V DC fan power output headers, maximal output current - 500mA total
Wireless standards	IEEE802.11b (1..11Mbit/s, auto-fallback); IEEE802.11g (6..54Mbit/s, auto-fallback, IEEE802.11b compatibility option, supports Turbo)
Wireless frequency	2412-2462Mhz (US FCC), with 5Mhz, 10Mhz, 20Mhz, 40Mhz band.
TX Output power	1-54Mbps: 26dBm (2422-2457MHz), 24dBm (2412, 2462MHz)
Receive sensitivity	802.11b: 1Mbps -97, 11Mbps -92. 802.11g: 6Mbps -94, 54Mbps -74
Speaker	Mini PC-Speaker present.
Power options	IEEE802.3af PoE: 12V or 48V DC including over datalines. Power jack: 11..60V DC
Power Consumption	~9W without extension cards, maximum – 35+ W
Temperature	Operational: -20°C to +65°C (-4°F to 149°F)
Humidity	Operational: 70% relative humidity (non-condensing)
Currently supported OS	RouterOS 3.x.x
