EZ-POEPA03
Passive 10/100 PoE Injector - cat5
[0546][EZ-POEPA03]
The product is
no longer available
Prices exclude VAT

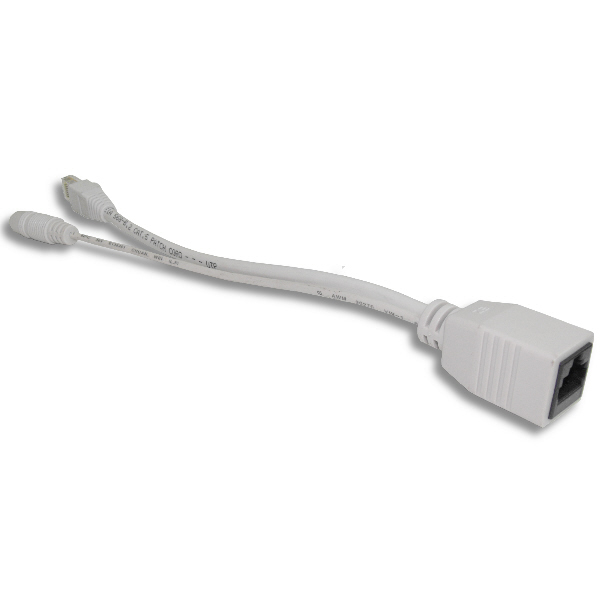

Passive 10/100 PoE Injector - cat5

Features:

Cat5 RJ45 Input connector
Cat5 RJ45 Output connector
Power / Data Mixer
Ethernet switches exapnd to Wireless AP

Product Links:
Datasheet Datasheet



Input / Output Specifications :
DC Input Voltage 48V ± 5 %
DC Output Voltage 48V ± 5 %
Max Output Current 0.4A Max.
Over Current Protection None
General Specifications:
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 50gr
Dimensions 230x25x20mm
Input Pins

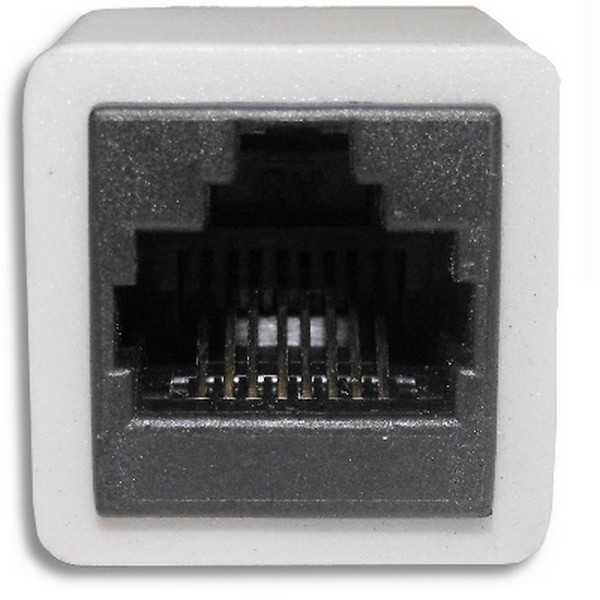

RJ-45 Plug		 Output Pins
RJ-45 Jack
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 N.C. V+ 4
5 N.C. V+ 5
6 Rx (-) Rx (-) 6
7 N.C. GND 7
8 N.C. GND 8

Package Contents:
1 x

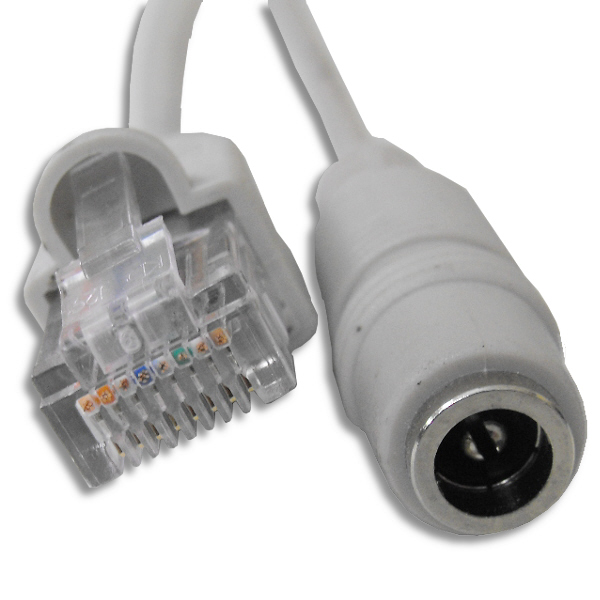

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
