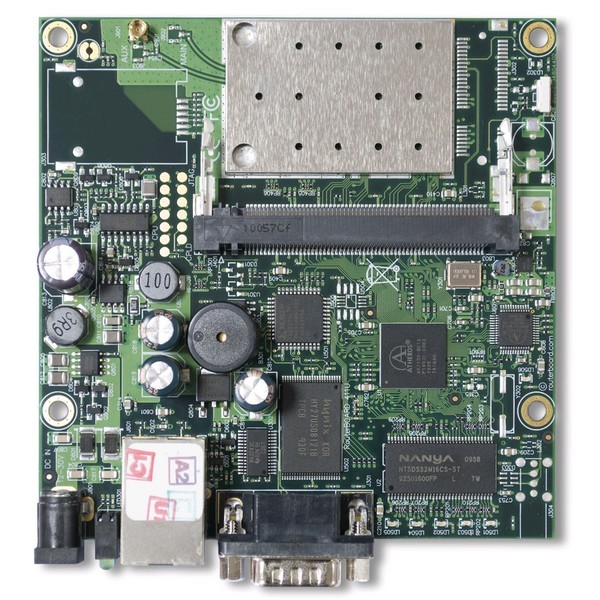

RouterBOARD 411AR Specifications : |
|
CPU |
Atheros AR7130 300MHz embedded processor |
|
Memory |
64MB SDRAM onboard memory chip |
|
Boot loader |
RouterBOOT, 1Mbit Flash chip |
|
Data storage |
64MB onboard NAND memory chip |
|
Ethernet ports |
1 x 10/100 Mbit/s Fast Ethernet Auto-MDI/X |
|
MiniPCI slot |
One MiniPCI Type IIIA/IIIB slots |
|
Wireless |
Built in AR2417 802.11b/g wireless device |
|
Extras |
Reset switch, Beeper |
|
Serial port |
One DB9 RS232C asynchronous serial port |
|
LEDs |
Power, NAND activity, 5 user LEDs |
|
Power options |
Power over Ethernet: 10..28V DC
Power jack: 10..28V DC |
|
Dimensions |
10.5 cm x 10.5 cm (4.13 in x 4.13 in) |
|
Weight |
82 g (2.9 oz) |
|
Power Consumption |
~3W without extension cards, maximum – 12 W |
|
RX sensitivity |
802.11g: –87 dBm @ 6Mbps to -69 dBm @ 54 Mbps
802.11b: –92 dBm @ 1Mbps to –83 dBm @ 11 Mbps |
|
TX power |
Up to 20 dBm |
|
Modulations |
802.11g: OFDM,64QAM,16QAM,QPSK,BPSK
802.11b: CCK,DSS,DQPSK, DBPSK |
|
Temperature |
Operational: -20°C to +70°C (-4°F to 158°F) |
|
Humidity |
Operational: 70% relative humidity |
|
Operating System |
RouterOS 3.x Level4 license included |
