Connector / Adapter » RP-SMA Connector » EZ-RPSMAB100

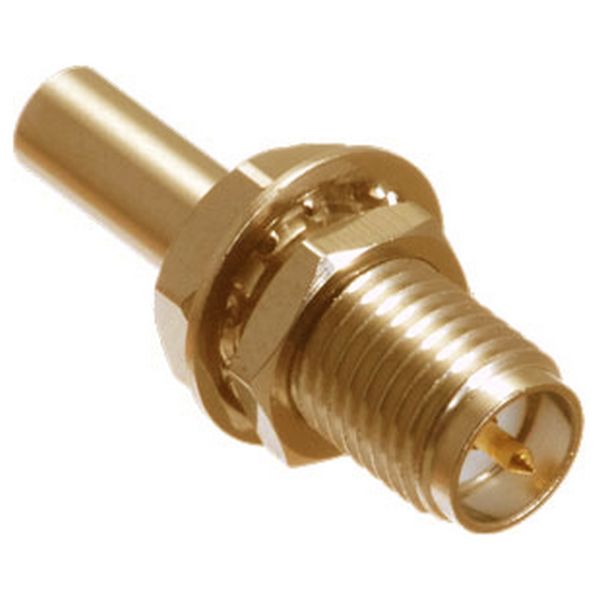

RP-SMA Bulkhead Crimp connector for 100, RG-174 series cable
[0079][EZ-RPSMAB100]
Price: 1,07€
 Order or Qty  Price
 > 500€  5+   1,05€
 > 1000€  10+   1,03€
 > 2000€  20+   1,01€
 > 5000€  50+   0,98€
 > 10000€  100+   0,96€
Prices exclude VAT

RP-SMA Bulkhead Crimp connector for 100, RG-174 series cable

In Stock: 153
Order Qty:

RP-SMA Bulkhead Crimp connector for 100, RG-174 series cable.

Part: Material: Finish:
Body Brass Gold
Center Pin Bronze Gold
Crimp Tube Annealed Copper Gold
Dielectric Teflon n/a
Specifications:
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Connector
RP-SMA Jack
Male thread
Male center pin

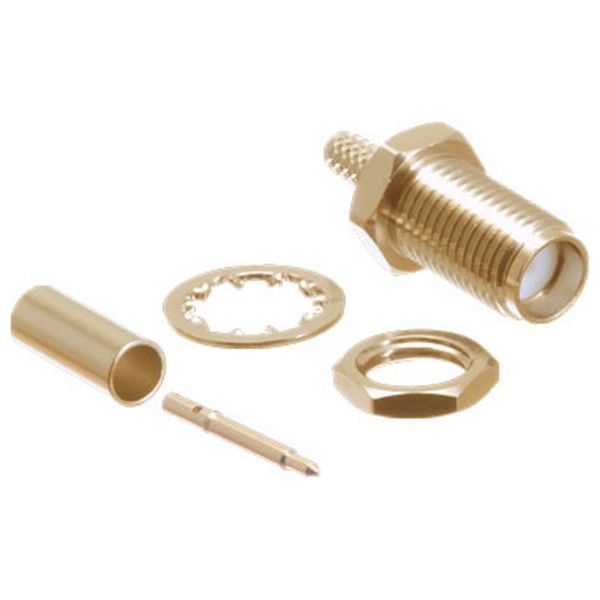

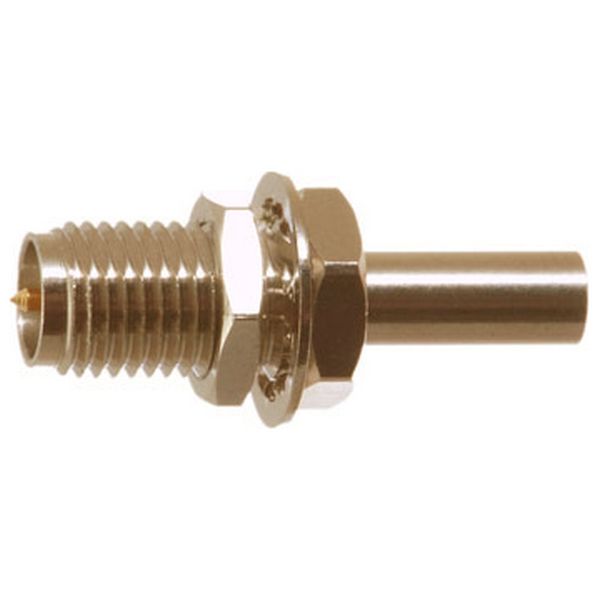

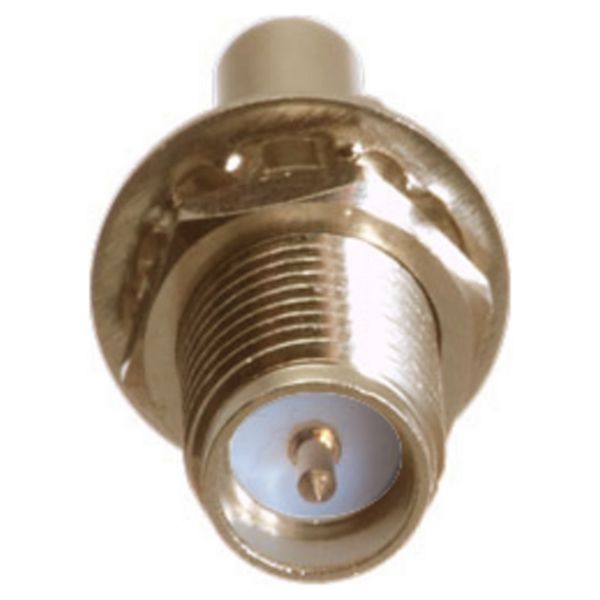

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
