Aerial.net :: 5.1-5.9GHz, EZ-Panel5, 19dBi Panel Antenna N-Type Female

EZ-FP5WR19INF

5.1-5.9GHz, EZ-Panel5, 19dBi Panel Antenna N-Type Female
[0795][EZ-FP5WR19INF]

The product is
no longer available

Prices exclude VAT

Description :

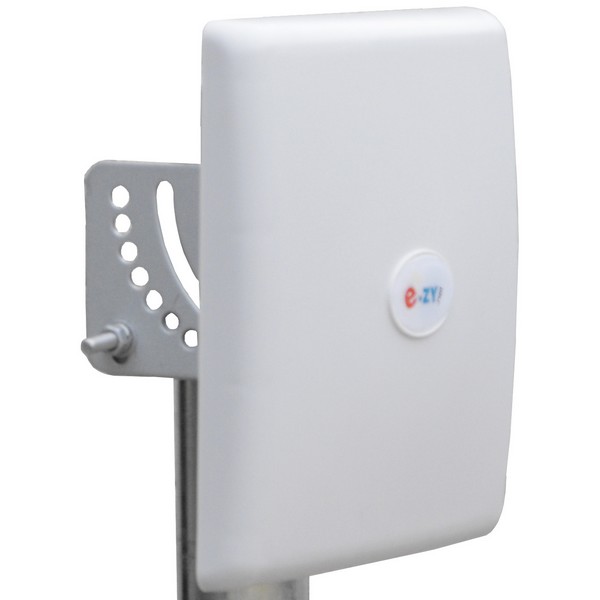

The FP5WR19INF Flat Panel Antenna by e-zy.net offers high gain in a thin low profile package.

The antenna frequency range is from 5150 to 5850 MHz and comes with 19dBi gain.

The antenna can be used in Horizontal or Vertical Polarization with a tight beamwidth of 16^o

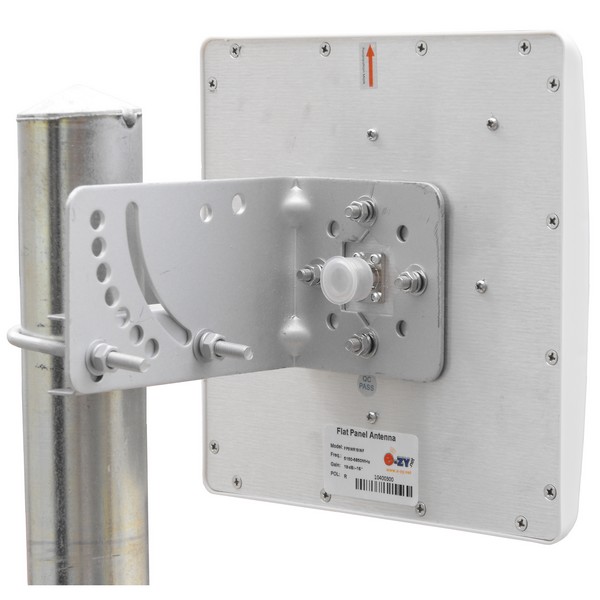

The FP5WR19INF Flat Panel Antenna comes equipped with Mounting Bracket which provides ± 35^o degrees of up/down tilt angle and stainless steel hardware which assure long service life.

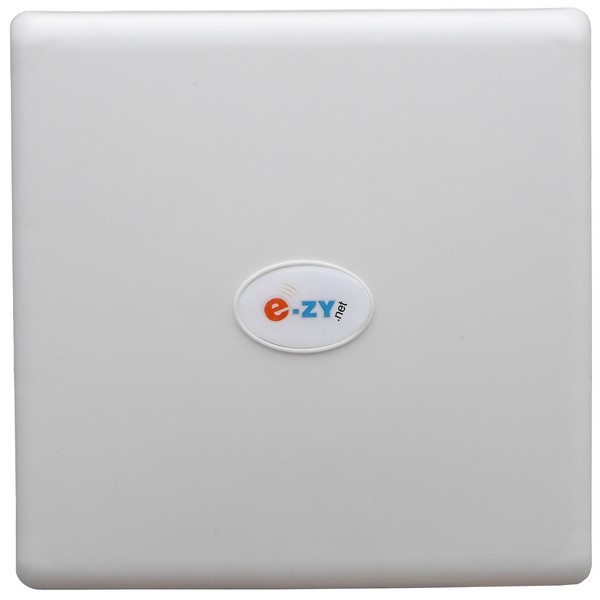

The antenna comes with an embedded N-Type Female connector standard and is constructed of a gray color UV Resistant ABS plastic radome with an aluminum back-plate.

The antenna can be installed in Vertical or Horizontal Polarization.

Product Links:
Datasheet

Specifications :
Freq. Range	5150-5850 MHz
Bandwidth	700MHz
Gain	19 dBi
V.S.W.R	<1.5
Horizontal Beamwidth	16º
Vertical Beamwidth	16º
Max Power	50 W
Polarization	Rotatable (Ver or Hor or 45o)
Impedance	50 ohm
Connector	N-Type Female (embedded)
Antenna Dimensions	190 x 190 x 25 mm
Weight	1 Kg
Radome Material	UV stabilized ABS
Color	Grey
Mounting mast diameter	Ø30 to 50mm

Package Contents:
1 x
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
