EZ-SD5WD29INF
5150-5850MHz 29dBi Dual Polarity Solid Dish
[0796][EZ-SD5WD29INF]
The product is
no longer available
Prices exclude VAT

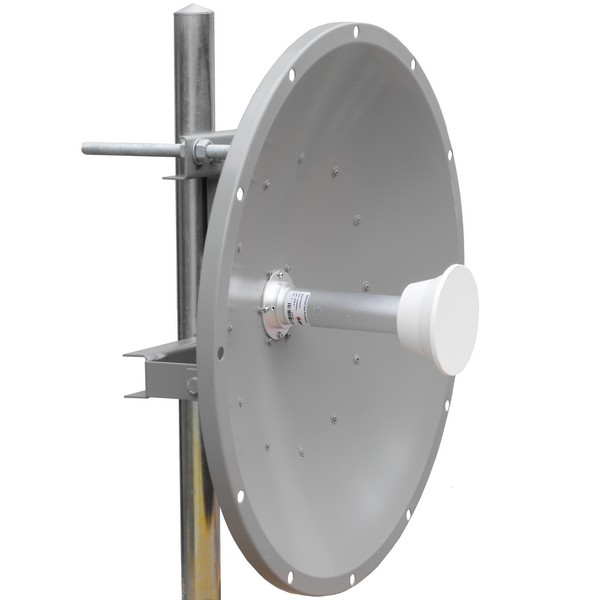

5150-5850MHz 29dBi Dual Polarity Solid Dish

The new Dual Polarity SD5WD29INF Solid Dish antenna by e-zy.net offer the system engineer the best performance available on the market. The antennas meet the most stringent specifications for point to point BackHaul antennas.

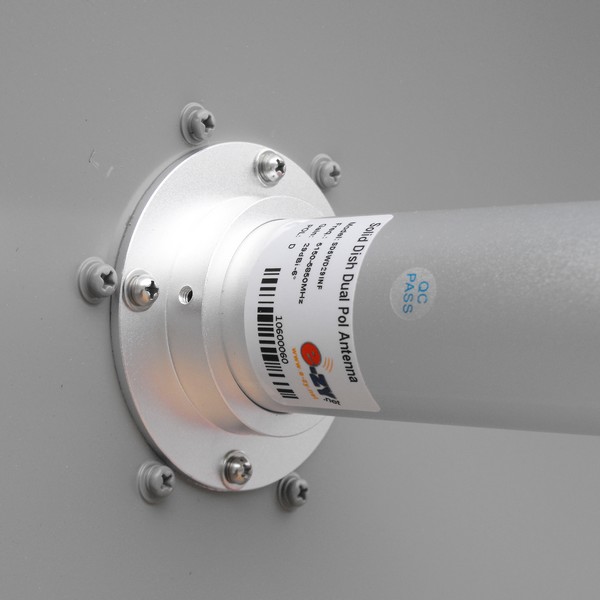

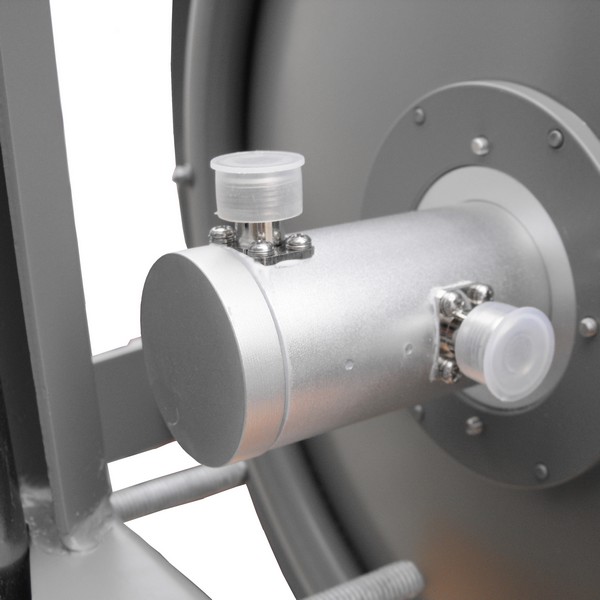

The Antenna FeedHorn has two N-Female connectors, one for vertical polarization and one for horizontal polarization. This feature makes this antenna ideal for polarization diversity systems.

Since the antenna can transmit and receive on both vertical and horizontal polarities, it can be used with increased bandwidth systems.

The antenna frequency range is from 5150 to 5850 MHz and comes with 29dBi gain.

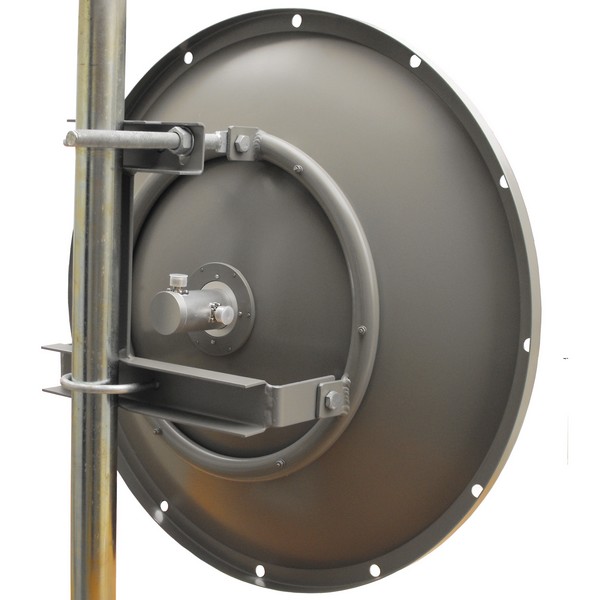

The SD5WD29INF Solid Dish Antenna comes equipped with heavy duty Mounting Bracket which provides ± 35o degrees of up/down while assures the antenna's longevity.

An optional fiberglass radome is available for added environmental protection.



Specifications
 Freq. Range  5150-5850 MHz
 Bandwidth  700MHz
 Gain  29dBi
 V.S.W.R  <1.5
 Horizontal BeamWidth  6º
 Vertical BeamWidth  6º
 Front to Back Ratio  >35dB
 Isolation  >28dB
 Max Power  100 W
 Polarization  Dual Polarity FeedHorn
 Impedance  50 ohm
 Connector  2 x N-Type Female (embedded)
 Antenna Dimensions  Diameter 600 mm
 Weight  5 Kg
 Material  Powder Coated Steel
 Color  Grey
 Mounting mast diameter  Ø50 to 150mm
