EZPS1518E
18v 0.8A Power Supply Wallplug EU type
[0835][EZPS1518E]
The product is
no longer available
Prices exclude VAT

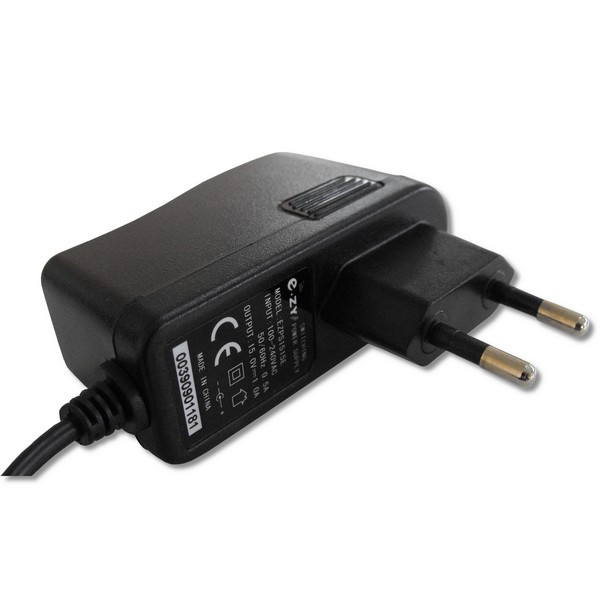

18v 0.8A Power Supply Wallplug EU type

18V AC adapter :

Output: 18V DC / 800mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
AC Prongs : EU type
Origin: China



Description Values
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 18v/0.8A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac

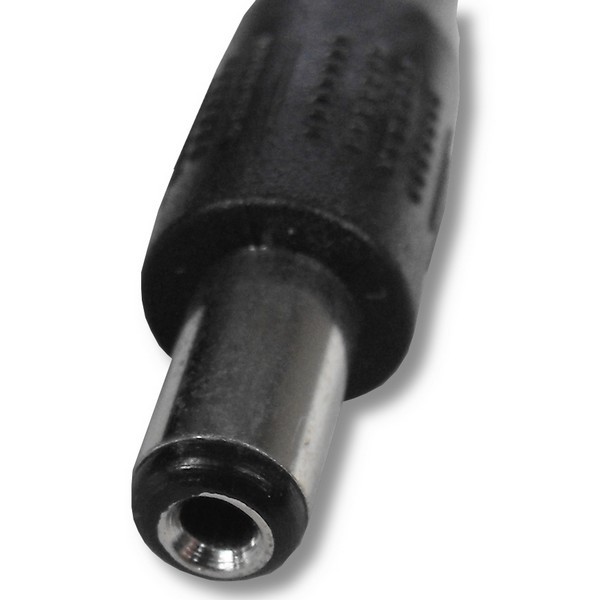

DC Plug Specification 5.5x2.1x11mm
Dimension 35x73x53mm
Operating Temperature Range 0oC~40oC
Storage Temperature Range -20oC~+85oC
