TL-ANT2405CL
5dBi 2.4GHz Indoor Omni-directional Antenna
[0856][TL-ANT2405CL]
The product is
no longer available
Prices exclude VAT

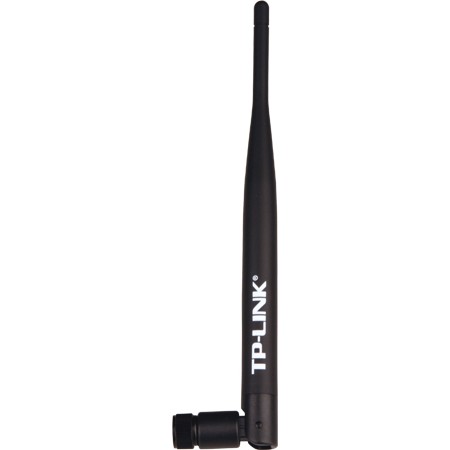

5dBi 2.4GHz Indoor Omni-directional Antenna

The TL-ANT2405CL 5dBi antenna is ideal for upgrading your wireless access points/routers.

It is very easy to use, no configuration or software installation required.

Product Links:
Product page Product page   Datasheet Datasheet

  • Compliant with 802.11b/g
  • Easy to install and use
  • 5dBi Omni-directional gain boosts your signal to a higher range
  • RP-SMA Male connector, compatible with most wifi devices
Technical Specifications :
Frequency Range
2.4GHz~2.4835GHz
Impedance
50 Ohms
Gain
5 dBi
VSWR
1.92 : 1 Max
Polarization
Linear, Vertical
Beamwidth (HPBW)
Horizontal: 360°
Vertical: 32°
Connector
RP-SMA Male
Radiation
Omni-directional
Application
Indoor
Dimensions (W x L mm)
13 x 190 mm
Operating Temperature
-10℃~60℃ (14℉~140℉);
Storage Temperature
-40℃~80℃ (-40℉~176℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
Safety, Emission and others
RoHS



Connector
RP-SMA
Female thread
Female center pin

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
