PoE » Wallplug Adapter » EZ-PP1512E
12v 1.25A Power Supply + PoE Injector LEDs - Wallplug
[0907][EZ-PP1512E]
Price: 5,25€
 Order or Qty  Price
 > 500€  5+   5,15€
 > 1000€  10+   5,04€
 > 2000€  20+   4,94€
 > 5000€  40+   4,83€
 > 10000€  100+   4,73€
Prices exclude VAT

12v 1.25A Power Supply + PoE Injector LEDs - Wallplug

In Stock: 661
Order Qty:

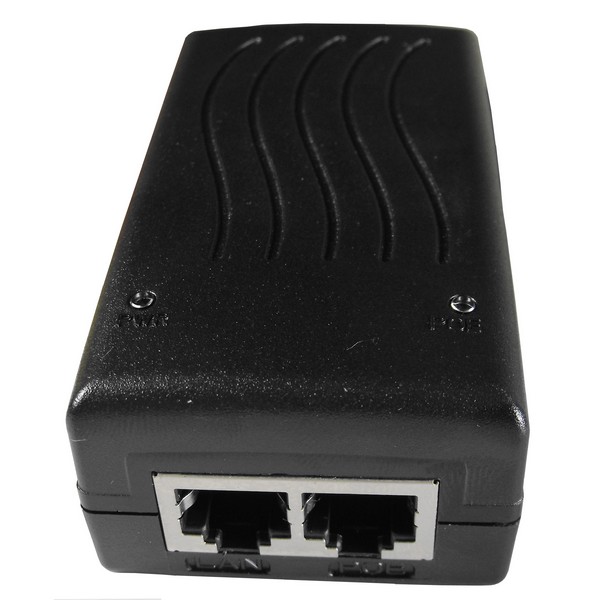

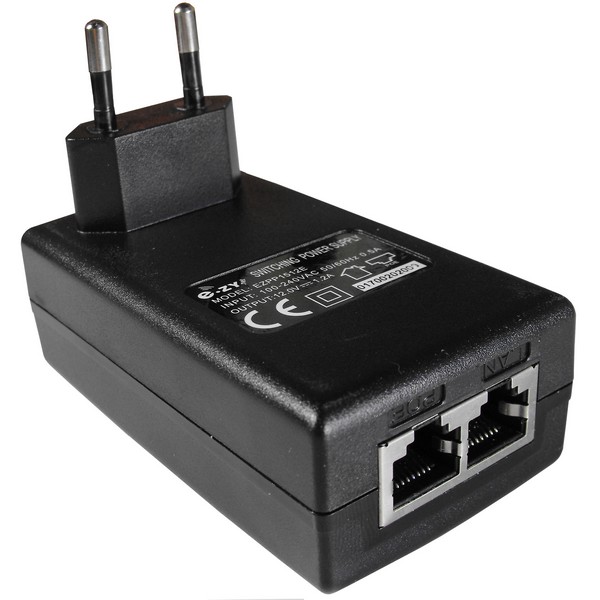

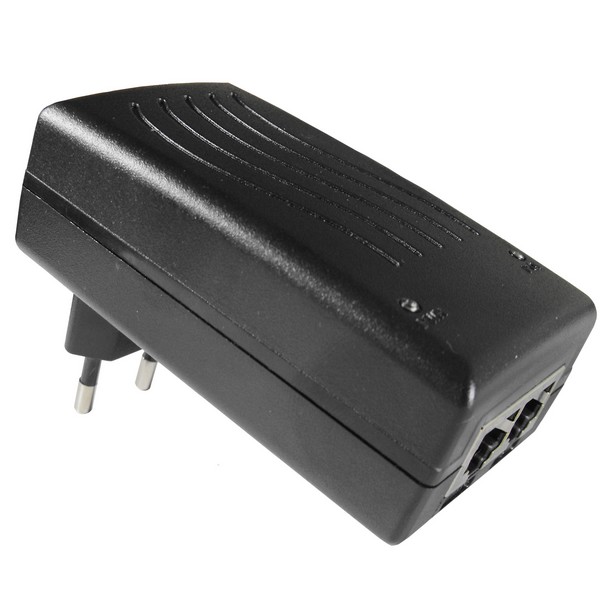

12V 1.25A Power Supply and PoE Injector with LEDs - WALLPLUG

Output: 12V DC / 1250mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China

PoE LED : RED - When the PoE Injector is powered on.

ETH LED : GREEN - When Access Point is plugged in.

Specifications:
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 12v/2.5A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
DC Plug Specification 5.5x2.1x11mm
Dimension 35x73x53mm
Operating Temperature Range 0 to 40oC
Storage Temperature Range -20oC to +85oC


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
