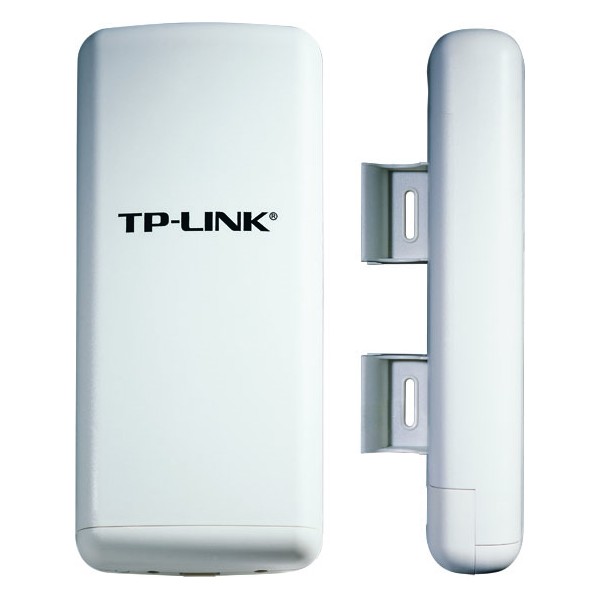

The TL-WA5210G 2.4GHz High Power Wireless Outdoor CPE is dedicated to WISP CPE solution and long distance wireless network solutions. It integrates the functions of a Wireless Access Point, WISP Client, high gain antenna and weatherproof enclosure. It features 12dBi high gain antenna, high output power and high RX sensitivity can significantly extend the transmission range to deliver a more stable wireless connection.

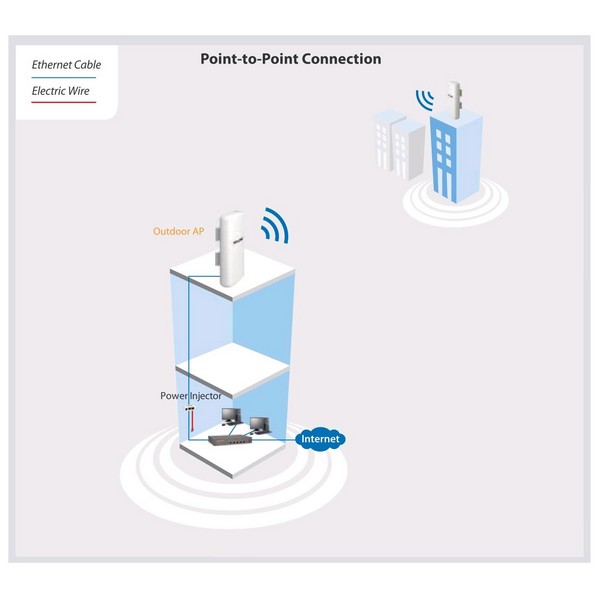

The TL-WA5210G features high output power and high RX sensitivity can significantly extend the transmission range to reduce dead spots and to deliver a more stable wireless connection. With integrated 12dBi dual-polarized antenna, the TL-WA5210G would help you easy to build up to 15km long range wireless link. If you have higher gain antenna, it also supports distance control from 0km to 52.6km, which breaks through distance limitations in normal 802.11g devices, enables ultra-long distance wireless transmission.

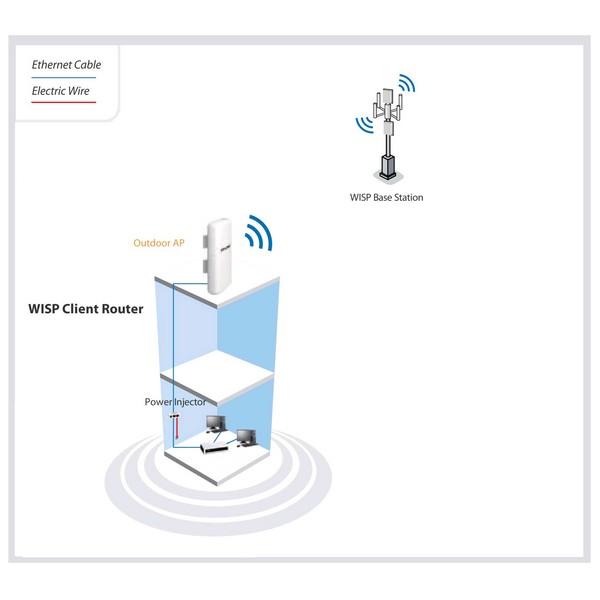

The TL-WA5210G provides three operation modes for multiple users to access the Internet: AP client router, AP router and AP. In AP client router mode, it works as a WISP CPE. In AP router mode, it can access the Internet via an ADSL/Cable Modem. In AP mode it can work in various modes, such as Access Point/Client/WDS Bridge/Repeater. With the most attentive wireless security, the TL-WA5210G provides wireless LAN 64/128bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security.
The TL-WA5210G is easy-to-manage. Quick Setup is supported and friendly help messages are provided for every step. So you can configure it conveniently and share the Internet more quickly and easily.
|
Software Specification
|
|
Standards
|
IEEE 802.11g, IEEE 802.11b
|
|
Wireless Signal Rates With Automatic Fallback
|
11g: 108/54/48/36/24/18/12/9/6M(dynamic)
11b: 11/5.5/2/1M(dynamic)
|
|
Frequency Range
|
2.4-2.4835GHz
|
|
Wireless Transmit Power (MAX)
|
27dBm (MAX Power, For FCC)
|
|
Modulation Technology
|
IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
|
|
Receiver Sensitivity
|
802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm
802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
|
|
Wireless Mode
|
AP Router
AP Client Router (WISP Clent)
AP/Client/WDS
Bridge/Repeater |
|
Wireless Range
|
15km with Integrated Antenna
50km Maximum (High gain directional antenna required)
|
|
Wireless Security
|
SSID Enable/Disable
MAC Address Filter
64/128/152-bit WEP Encryption
WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
|
|
Hardware Specification
|
|

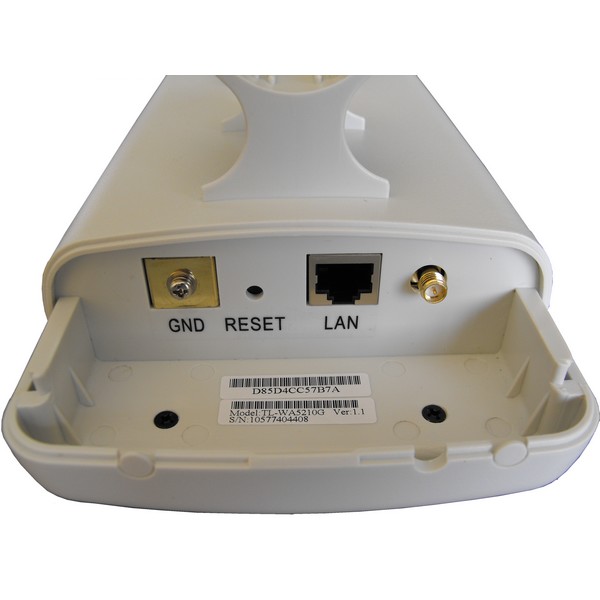

Interface
|

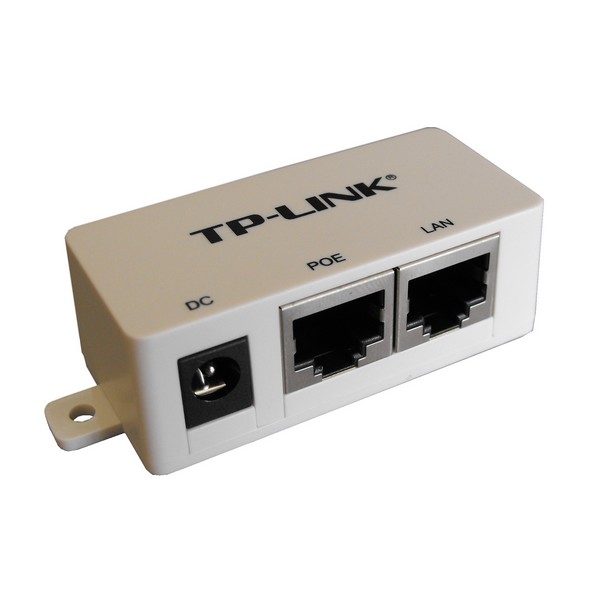

One 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)
One external Reverse SMA Connector One Grounding Terminal
|
|
Antenna
|
12dBi Dual-Polarized Directional Antenna |
| Antenna Beamwidth |
Horizontal: 60° Vertical: 30° |
|
Power Supply Unit
|
Output: 12V DC / 1.0A Linear PSU
|
|
Operating Temperature
|
0°C~40°C (32℉~104℉)
|
|
Storage Temperature
|
-30°C~70°C (-40℉~158℉)
|
|
Relative Humidity
|
10% ~ 90%, Non Condensation
|
|
Storage Humidity
|
5%~95% Non-Condensing
|
|
Dimensions
|
10.4 × 4.7 × 3.2 in. (265x120x83mm)
|
