Aerial.net :: NBE-M5-300 - 5GHz NanoBeam, AIRMAX, 22db, AP-CPE

NBE-M5-300

NBE-M5-300 - 5GHz NanoBeam, AIRMAX, 22db, AP-CPE
[1398][NBE-M5-300]

The product is
no longer available

Prices exclude VAT

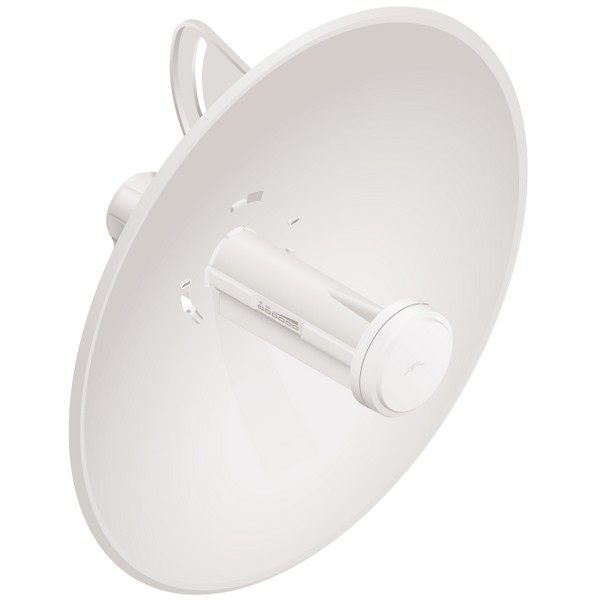

UBIQUITI :: NanoBeam M5 22dBi 5GHz MIMO, High-Performance airMAX Bridge

Improved Noise Immunity The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Mechanical Design
• All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint.
• Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
• Convenient alignment The NanoBeam pivots on its ball joint for easy aiming.

Compact Form Factor
• Efficient footprint The radio and antenna are combined into a single body that takes up minimal space.
• Versatile mounting The NanoBeam can be mounted in almost any position needed for line of sight.
• Aesthetics The NanoBeam is small enough to blend discreetly into the background at a customer's location

Product Links:
Datasheet	Documantation

System Information :
Processor Specs	Atheros MIPS 74KC, 560MHz
Memory Information	64MB SDRAM, 8MB Flash
Networking Interface	1 X 10/100 Ethernet Interface
Regulatory / Compliance information :
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	YES
Physical - Electrical - Environmental :
Enclosure Size	325 x 325 x 256 mm
Weight	1.2 kg
Enclosure Characteristics	Outdoor UV Stabalized Plastic
Mounting Kit	Pole Mounting Kit included
Max Power Consumption	8 Watts
Antenna Gain	22dBi
Power Supply	24V Carrier POE Adapter Included (POE-24)
Power Method	Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Wind Loading	45.4 N @ 200 km/h
Operating Temperature	-40C to +70C
Operating Humidity	5 to 95% Condensing
Shock and Vibration	ETSI300-019-1.4

Package Contents:
1 x Dish Reflector
1 x NBE-M5-300(EU) Antenna Feed
1 x 24V Carrier POE Adapter (POE-24)
1 x Pole Mounting Kit
1 x Quick Start Guide
