Antenna 2.4GHz » Solid Dish » Direct24
24dB 2.4GHz Solid Dish
[Direct24]
The product is
no longer available

24dB 2.4GHz Solid Dish

Direct 24 is a directional parabolic antenna working in 2,4 GHz band.

There is a possibility to use Direct 24 in horizontal polarization or vertical polarization. Antenna is made of a top quality two-layer ABS/Plexiglas (PMMA) material which enables Direct 24 to be used also in more difficult climatic conditions.

The antenna is corrosion resistant and its lifetime is very long. The weight of Direct 24 is very low (up to 1.5 Kg).

Features: Benefits:
● Operating frequency 2400 – 2485 MHz
● Material ABS/plexiglass (PMMA) + Aluminium
● Vertically polarized
● Mounting bracket
● long lifetime
● Low weight – up to 1.5 Kg
● No corrosion
● Easy Installation

Specifications:
Dimension Diameter 500 mm

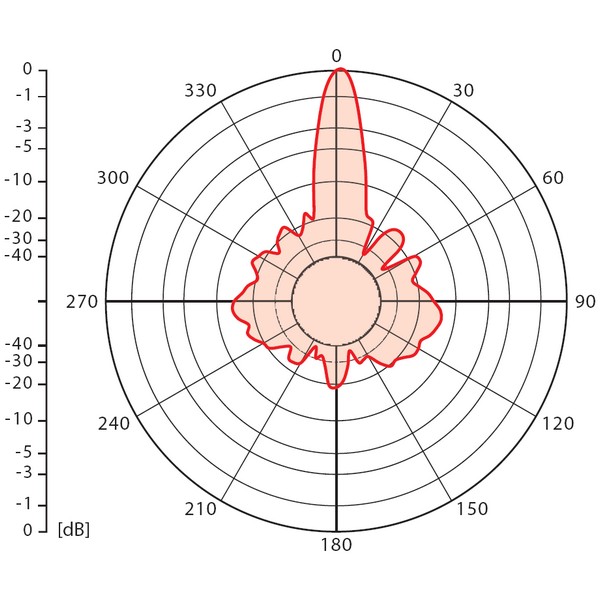

-3 dB Beamwidth 12°
Weight 1.5 Kg
Material Aluminium + ABS
Frequency Band 2400 - 2485 MHz
Gain 24,1 dBi
Connector SMA reverse polarity
Polarization Horizontal / Vertical
Impedance 50 Ω

Additional Images:

Connector
RP-SMA
Female thread
Female center pin

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
