USB » TL-WN7200ND
150Mbps 500mW High Gain Wireless USB Adapter, 5dB detachable antenna, 802.11b/g/n
[0892][TL-WN7200ND]
The product is
no longer available
Prices exclude VAT

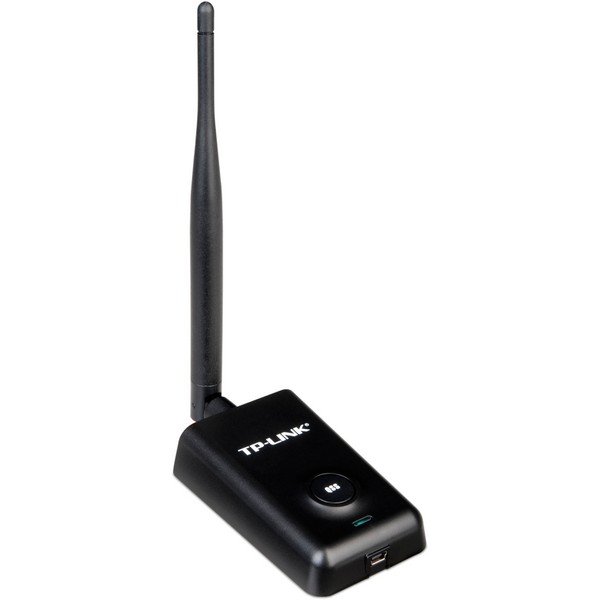

150Mbps 500mW High Gain Wireless USB Adapter, 5dB detachable antenna, 802.11b/g/n

TL-WN7200ND is a 150Mbps high power wireless adapter with transmission output power up to 500mw which could offer longer distance and further wireless range compared with conventional adapters.  For users who require the maximum performance out of the legacy USB adapter, TL-WN7200ND will definitely fit the bill flawlessly with its 500mw transit power and stronger penetrability, as TL-WN7200ND could effectively ensure that signal doesn’t attenuate seriously and keeps useable and reliable when it passes through multiple walls or floors.

High power for strong penetration
With transmission power of up to 500mw, high power USB adapter TL-WN7200ND delivers up to 8 times the range of normal power USB adapter. Moreover, TL-WN7200ND is featured with its incredible and strong penetrability, making that you don’t have to be physically tethered to the walls or floors to access the Internet.

High receive sensitivity for reliable signal
TL-WN7200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN7200ND means that you don’t have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.


One button for security setup
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WN7200ND supports Quick Security Setup that allows users to simply press the QSS button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don’t need to remember any password!


5 dBi external detachable antenna
External antenna can be rotated and adjusted in different directions to fit various operation environments, brings performance enhancement than internal antenna under normal indoor usage. For even more demanding applications, the antenna can also be replaced with diverse indoor antenna or directional antenna (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.


Desktop-style design & 1.5m USB extension cable
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN7200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.

Bundled CD for easy operation
TL-WN7200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.



Software Specification
Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Frequency Range
2.4-2.4835GHz
Wireless Transmit Power
Up to 500mw
Modulation Type
OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity
(without antenna)
802.11n
135M: -68dBm
108M: -72dBm
81M: -76dBm
802.11g
54M: -76dBm
36M: -81dBm
12M: -89dBm
9M: -91dBm
6M: -92dBm
802.11b
11M: -91dBm
5.5M:-93dBm
1M: -94dBm
Work Mode
Ad-Hoc
Infrastructure
Wireless Security
64/128/256 bit WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System
Windows 2000/XP/Vista,Windows 7



Hardware Specification
Interface
Mini USB
Antenna Type
5dBi Detachable Omni-directional Antenna
Certifications
CE, FCC, RoHS
Operating Temperature
0°C~40°C (32℉~104℉)
Storage Temperature
-40°C~70°C (-40℉~158℉)
Relative Humidity
10% ~ 90%, non condensation
Storage Humidity
5%~90% non-condensing
Dimensions
3.6 x 2.4 x 1.0 in (90.8 x 60.8 x 24.5mm)


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
