Mobile Antenna Magnetic Base.
The EZ-MN90N Small Magnetic Mount have two N-Type threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
Corrosion resistant materials used throughout for high durability and weather resistance.
The EZ-MN90N Magnetic Base impedance matched to 50 ohm cables.
-
Features
-

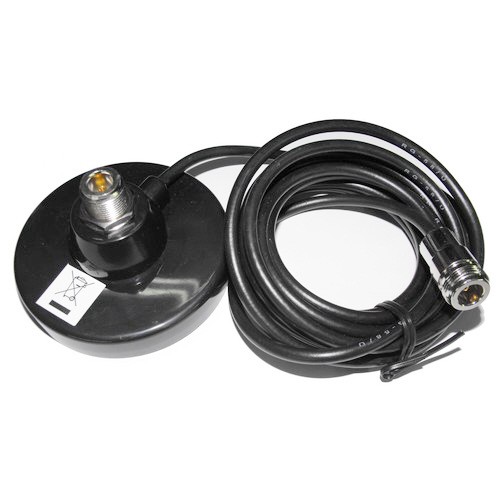

90mm Mobile Antenna Magnetic Base.
-
10Ft. LMR195 cable
-
N Female Connector
|
Tecnical Specifications (Connectors) |
|
Impedance |
50 ohm |
|
Frequency Range |
0 to 11.0 Ghz |
|
V.S.W.R. |
1.3 Max |
|
Working Voltage |
1,000 Volts rms max at sea level |
|
Dielectric Withstanding Voltage |
2,500 Volts rms max at sea level |
|
Contact Resistance |
Center contact=1.0 Milliohms max |
|
Contact Resistance |
Outer contact=1.0 Milliohms max |
|
Insertion Loss |
< 2,5dB |
|
Insulation resistance |
5,000 Megaohms min |
|
Connector Body |
Nickel Plated |
|
Center Pin |
Gold Plated |
|
Dielectric |
Teflon |
|
O-Ring |
Not Present |
|
Tecnical Specifications (Magnetic Mount) |
|
Base Diameter |
90 mm |
|
Base Height |
50 mm |
|
Cable lenght |
3mt |
|
Mount Type |
Magnetic |
|
Connectors |
|
N-type |
N-type |
 |
|
|
Male thread
Female center pin
|
Male thread
Female center pin
|
