02-PR-M22
5.3GHz-5.8GHz, 22dBi Solid Dish N-Type Female connector
[1038][02-PR-M22]
The product is
no longer available
Prices exclude VAT

5.3GHz-5.8GHz, 22dBi Solid Dish N-Type Female connector

Description of product:

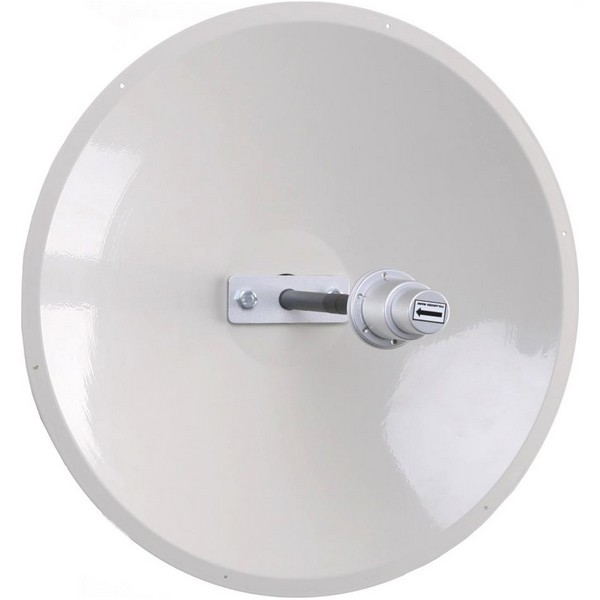

Professional parabolic antenna with 22dBi gain, it's directivity excels on suppression of rear and side lobes, the heart of the dish consists of a Pacific Wireless irradiator and the antenna mount is made of galvanized steel sheet with a 3mm thickness for maximum strength. The antenna's mounting range is 40 ° in the vertical plane. Each dish's VSWR is measured.

Technical Specifications:
Gain 22dBi
Frequency 5.3 to 5.8 GHz
Polarization Horizontal, Vertical
Front to Back Ratio >30 db
Beam Angle 10°

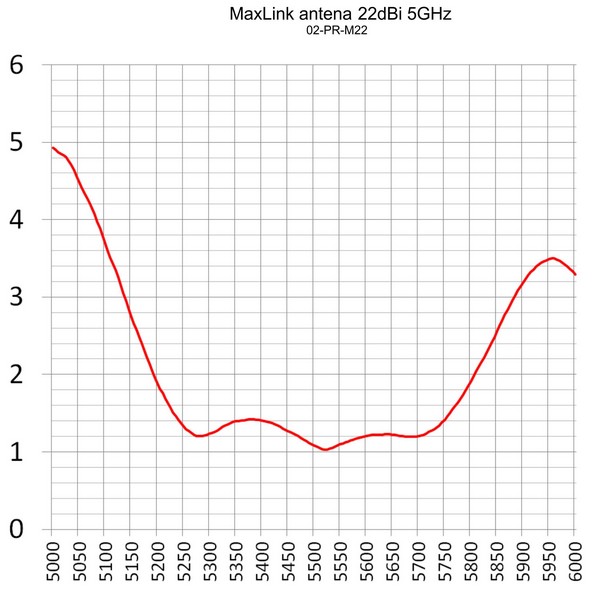

VSWR <1.5
Impedance 50ohm
Completion N-Female
Diameter 320mm
Weight 1.2 kg
Pole Diameter 28-66 mm

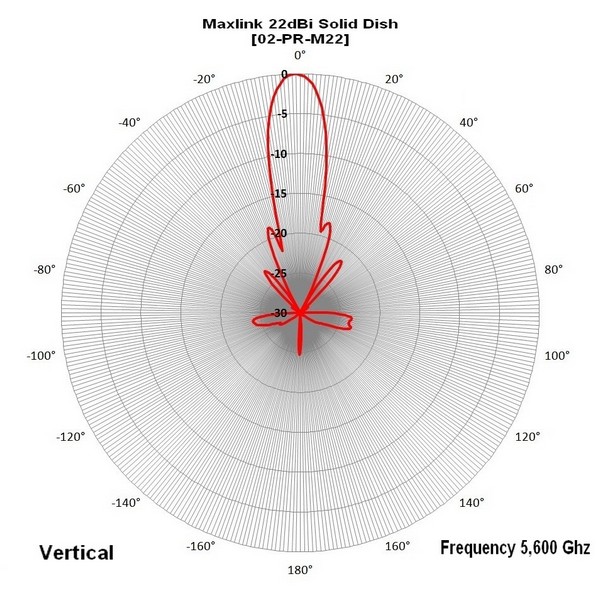

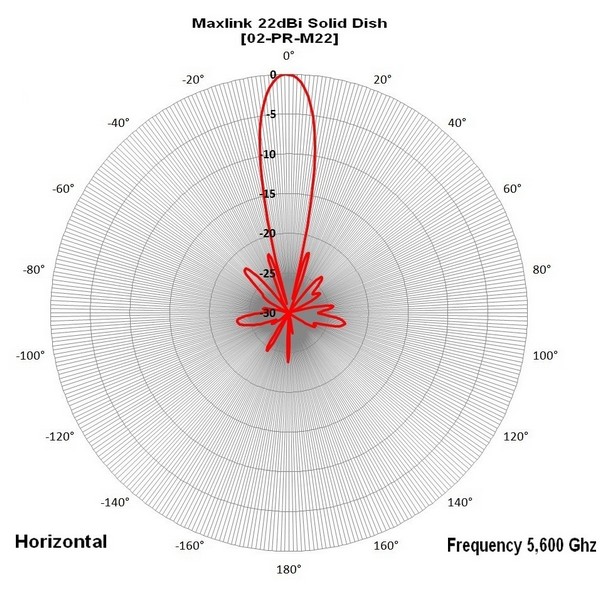

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
