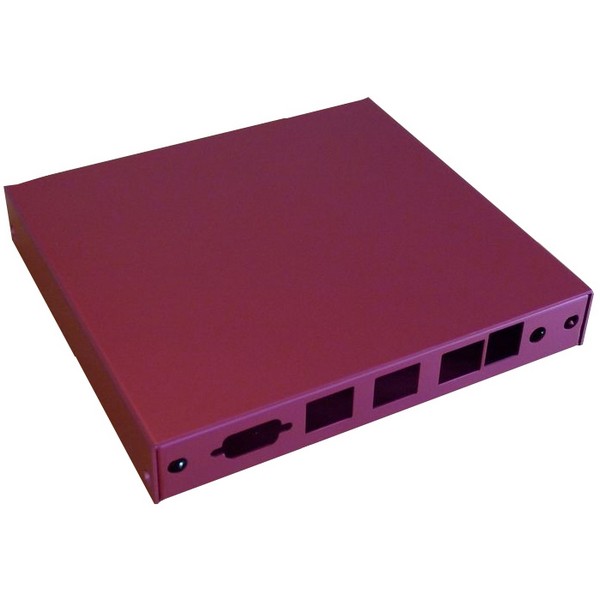

This is a simple Red aluminum enclosure for the 3 ethernet port version of the ALIX board.
Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 3 LAN ports, 2 RP-SMA/SMA connectors, DC jack in back.
Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.
The case has the following cutouts :
3 x Ethernet ports.
1 x Serial port.
1 x Power Supply - DC Jack.
2 x RP-SMA/SMA bulkhead connector holes.
|
Package contents : |
|
1 x Aluminum case |
|
4 x Case screws |
|
4 x PCB mounting screws |
|
4 x Self adhesive rubber feet |
|
2 x Rubber plugs to close unused RP-SMA/SMA holes. |
