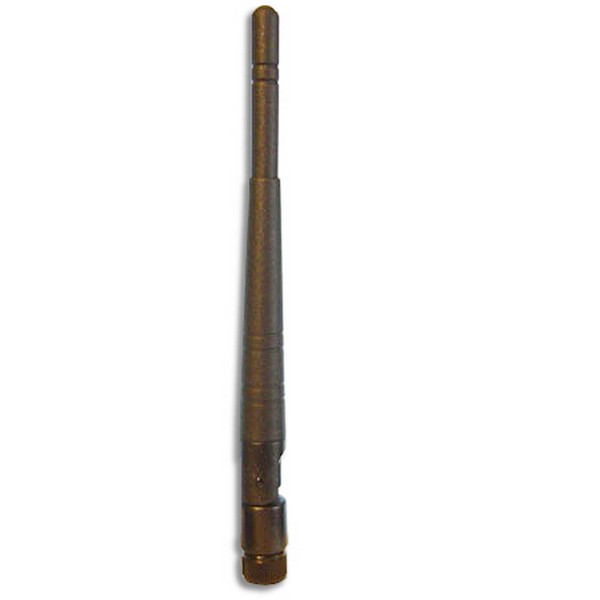

The EZ-RDDUR05IRS TriBand APXtender Indoor Rubber Ducky Omnidirectional Antenna is used to extend the range of indoor access points or client bridges in 2.4GHz, 5.3GHz and 5.8GHz wireless LAN environments. The antenna is a "TriBand" rather then "Wide Band" antenna design in that it will reject out of band signals between the bands of interest. This feature helps to minimize interference and system noise. The antenna features a 360 Degree orizontal Tranmissiong Pattern and a 90 Degree Vertical Transmission Pattern. The transmit / receive element can be tilted in relation to the base to direct signal where it is needed (0,45, 90 degrees).
Features:
* Tri-Band Operation : 2.4GHz, 5.3GHz and 5.8GHz.
* Direct replacement for 2.2dBi rubber ducky antennas on most indoor access points and bridges.
* Extends range of wireless access points or wireless bridges
* Suitable for most 802.11a, 802.11b, 802.11g and OEM wireless equipment.
|
Specifications : |
|
Frequency Range |
2400-5825MHz |
|
Gain @ 2400 MHz |
2,2dBi |
|
Gain @ 5150 MHz |
4dBi |
|
Gain @ 5725 MHz |
5dBi |
|
Polarization |
Vertical |
|
Vertical BeamWidth |
90° |
|
Horizontal BeamWidth |
360° |
|
Nominal Impedance |
50 Ohm |
|
Max. Power |
10 Watts |
|
VSWR |
1,5:1 |
|
Weight |
25 gr |
|
Length |
159 mm |
|
Diameter |
12,7 mm |
|
Radome Material |
TPEE |
|
Radome Color |
Black |
|
Working Temperature |
-40° to 55° C |
|
Connector |
RP-SMA Plug |
|
Connector |
|
RP-SMA |
 |
Female thread
Female center pin |
