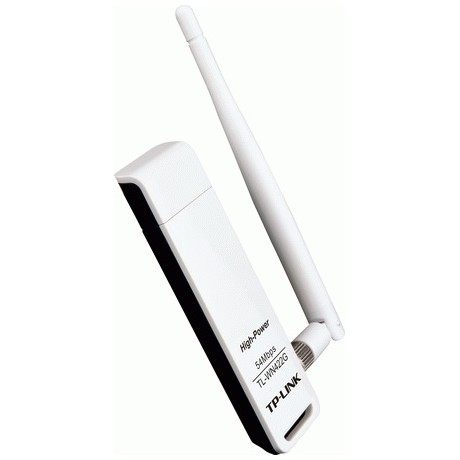

The TP-LINK TL-WN422G Wireless USB Adapter gives you the flexibility to install the PC or notebook PC in the most convenient location available, without the cost of running network cables.
With powerful 4dBi detachable antenna, the TL-WN422G remains excellent performance in the long range and bad environment, it can receive signal from wireless base even separated by 2 floors. The USB adapter can be plugged to the laptop directly or put on the table, convenient and portable to carry, it´ s a right choice if you need a pocket USB adapter.
Its auto-sensing capability allows high packet transfer up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all the 11Mbps wireless (802.11b) products. Your wireless communications are protected by up to 256-bit encryption, so your data stays secure.
Additionally, TL-WN422G supports Soft AP, which supports PSP connection, brings you joyful Online-gaming experience.
|
Software Specification
|
|
Standards
|
IEEE 802.11g, IEEE 802.11b
|
|
Wireless Signal Rates With Automatic Fallback
|
11g:54/48/36/24/18/12/9/6 Mbps (Dynamic)
11b:11/5.5/3/2/1 Mbps (Dynamic)
|
|
Frequency Range
|
2.4-2.4835GHz
|
|
Wireless Transmit Power
|
20dBm(MAX)(EIRP-total effective radiated
power is 20 dBm(100mW), antenna gain
will not influence wireless transmit power)
|
|
Modulation Type
|
1M DBPSK, 2M DQPSK, 5.5M/11M CCK, 6M/9M/12M/18M/24M/36M/48M/54M OFDM
|
|
Receiver Sensitivity
(without antenna)
|
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
256K: -105dBm@8% PER
|
|
Work Mode
|
Ad-Hoc
Infrastructure
Soft AP
|
|
Wireless Security
|
64/128/256 bit WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
|
|
Support Operating System
|
Windows 98SE/ME/2000/XP/Vista
|
|
Hardware Specification
|
|
Interface
|
USB2.0 Hi-Speed connector
|
|
Antenna Type
|
4dBi Detachable Omni-directional Antenna
|
|
Certifications
|
CE, FCC
|
|
Operating Temperature
|
0°C~40°C (32℉~104℉)
|
|
Storage Temperature
|
-40°C~70°C (-40℉~158℉)
|
|
Relative Humidity
|
10% ~ 90%, non condensation
|
|
Storage Humidity
|
5%~90% non-condensing
|
|
Dimensions
|
3.7 x 1.0 x 0.4in. (93.5 x 26 x 11mm)
|
