Price: 21,84€

Order or Qty  Price   > 500€   5+    21,40€  > 1000€   10+    20,97€  > 2000€   20+    20,53€  > 5000€   40+    20,09€  > 10000€   100+    19,66€

In Stock: 10

Order Qty:

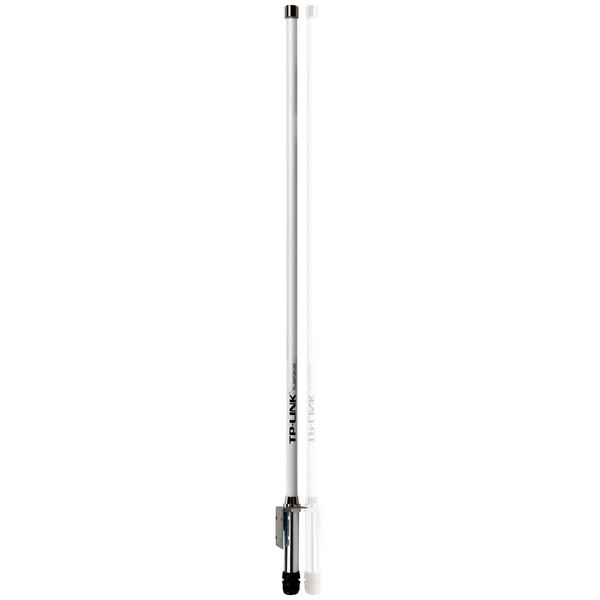

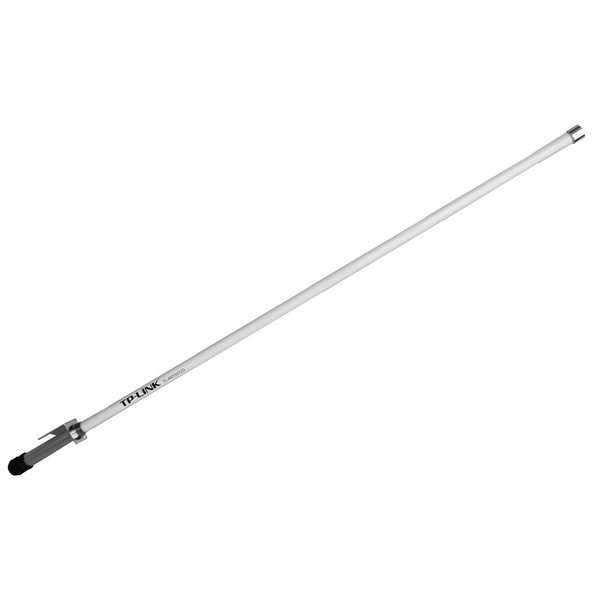

2.4GHz 12dBi Outdoor Omni-directional Antenna

• 12dBi all-directional operation makes your wireless coverage highly extended over a large area
• Weather proof design, suitable for all weather conditions

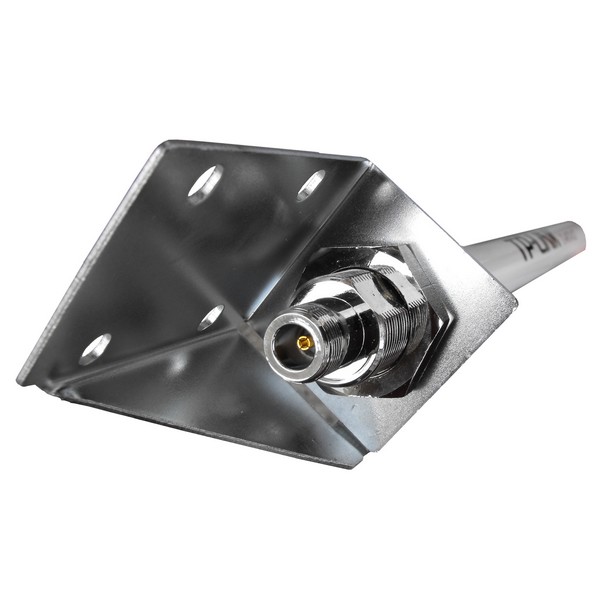

• N Female connector, applicable in most outdoor solutions

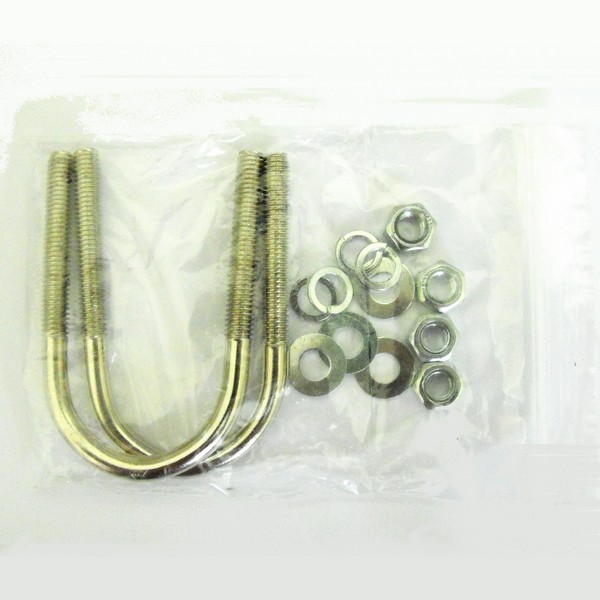

• Provides easy installation mounting kits

Product Links:
Product page

Frequency Range
Frequency Range	2.4GHz~2.5GHz
Impedance	50 Ohms
Gain	12 dBi
VSWR	1.92 : 1 max
Polarization	Linear, Vertical

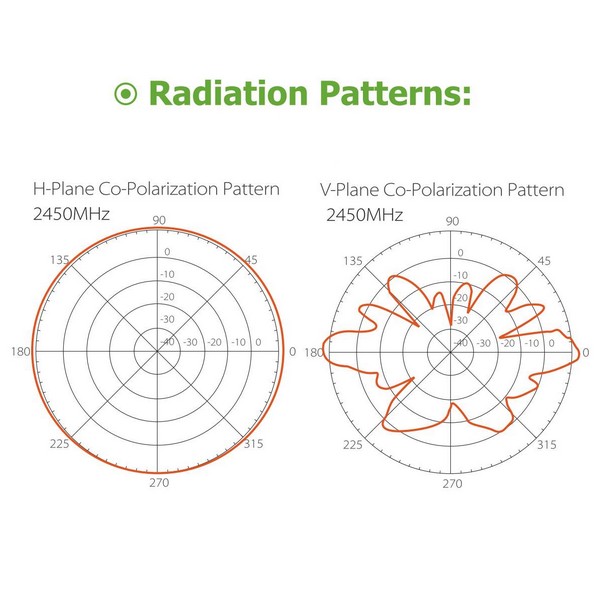

Beamwidth (HPBW)	Horizontal: 360°, Vertical: 6°
Connector	N Female
Cable	N/A
Radiation	Omni-directional
Application	Outdoor

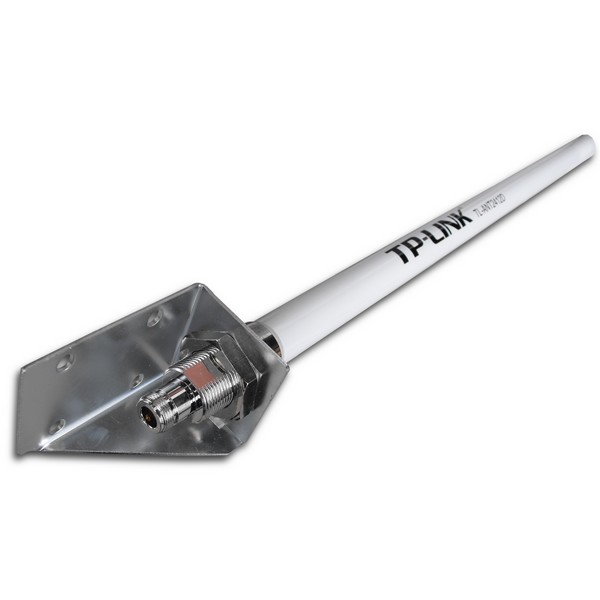

Mount Style	Pole Mount / Wall Mount
Survival Wind Speed	216Km/hr(134Miles/hr)
Lighting Protection	DC Ground
Dimensions (d*L mm)	48*1718 mm
Operating Temperature	-10℃~60℃ (14℉~140℉)
Storage Temperature	-40℃~80℃ (-40℉~176℉)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Safety, Emission and others	CE, FCC, Compliant with RoHS

Package Contents:
1 x

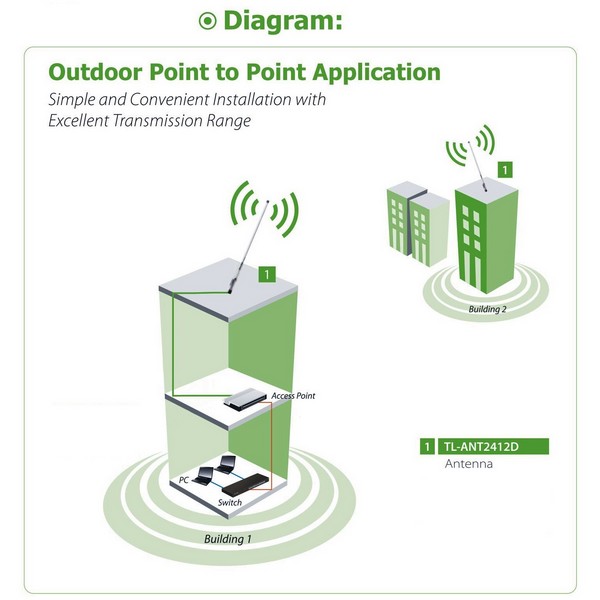

Additional images:
