The product is
no longer available |
| Prices exclude VAT |
|
|
| Product Details |
|---|
| PID: | 760 |
| SKU: | TL-SC3130G |
| Single unit: | 30×23×8cm, 1.10 Kgs | | Carton 20pcs: | 59×47×38cm, 17.40 Kgs | | Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Warranty: | 24 months |
| Package Contents: |
|---|
| 1 x TL-SC3130G IP Camera in retail carton |
| 1 x Power Adapter |
| 1 x Mounting Bracket with three screws, a Lock Ring, a Brace and a Base Plate |
| 1 x RJ45 Cable |
| 1 x Quick Installation Guide |
| 1 x Resource CD, including, Software, User Guide and other helpful information |
|
IP Camera, 2-Way Audio, Wireless Surveillance Camera

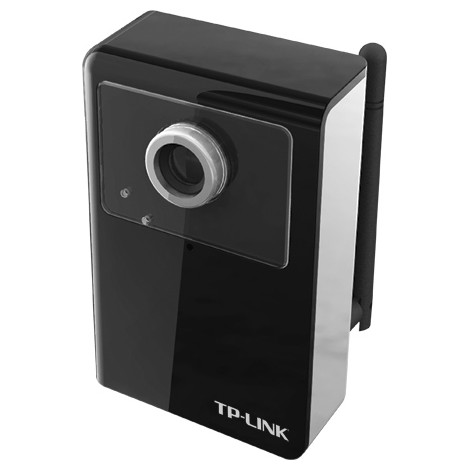

The TL-SC3130G surveillance camera is a versatile solution for your home and office monitoring, whose 54Mbps wireless connectivity enables you to deploy the camera where inaccessible previously by Ethernet connection such as ceiling and walls.
This camera can be placed in your living room, office, or anywhere else you would like to keep an eye on things. After a hassle-free installation, you can view and control the camera from a Web browser, bundled software, or compatible cell phone.
Besides basic monitoring tools such as motion detection and E-mail alerts which is motion triggered sending an alert when the camera detects movement, advanced features of high availability are also added, such as 2-way audio, dual streaming, and 3GPP compatibility, even the error detection tool “Ping Watch Dog”, making TL-SC3130G an excellent indoor surveillance solution.
|
Software Specifications |
|
Standards and Protocols
|
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS,
NTP, UPnP, RTSP, RTP, HTTP, TCP,UDP, 3GPP/ISMARTSP
|
|
Wireless Data Rates
|
Up to 54Mbps |
|
Wireless Security
|
WPA-/WPA2-PSK,WPA-/WPA2-AES,WEP
|
|
Video compression
|
Motion JPEG; MPEG- 4 Part 2 (ISO/IEC14496-2), Profile: SP
|
|
Frame rate & Resolutions
|
Up to 30 fps at 640x480, 320x240, 160x120
|
|
Video streaming
|
Simultaneous Motion JPEG and MPEG-4 (Dual streaming)
|
|
Security
|
Multiple user access levels with password protection, HTTPS encryption |
|
Alarm and Event Management |
Events triggered by motion detection and Schedule; Notification over TCP, email, HTTP
|
|
Bundled Management Software
|
Viewing and recording up to 16 cameras
|
|
|
Rotation:Mirror, Flip, Mirror Flip, brightness, contrast, saturation, hue
Overlay capabilities: time, date, text and privacy image
|
|
Audio
|
Two-way (full duplex)
External microphone input
Audio compression: G.711 PCM, 8 kHz, 64 kbit/s
|
|
Users
|
5 simultaneous users
Unlimited number of users usingmulticast
|
Minimum web browsing requirements
|
Pentium4 1.8GHz (or equivalent AMD), 64MB RAMgraphic cards
(or equivalent on-board graphic cards) 512MB RAM
Windows 98,ME, 2000, 2003, XP, Vista, Mac OS Leapord 10.5
|
|
Hardware Specifications |
|
Interfaces |
RJ- 45 for Ethernet 10/100 Base-T; DC power jack; Reset push switch; 3.5mmjack for line out |
|
Image sensor
|
1/4” Progressive scan CMOS sensor
|
|
Lens |
F2.0, 4.0mm
|
|
Digital zoom
|
10x Digital
|
|
Min Illumination |
0.5 Lux |
|
Safety & Emission |
FCC, CE |
|
Dimensions (HxWxD) |
3.7 x 2 .7 x 1.2 in. (96 x 58 x 31mm) |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|
Power |
5V DC, 2A |
|
