Τιμή: 48,85€

Σύνολο ή Τεμ.  Τιμή   > 500€   5+    47,87€  > 1000€   10+    46,90€  > 2000€   20+    45,92€  > 5000€   40+    44,94€  > 10000€   100+    43,97€

Διαθέσιμο: 122

Ποσότητα:

Description :

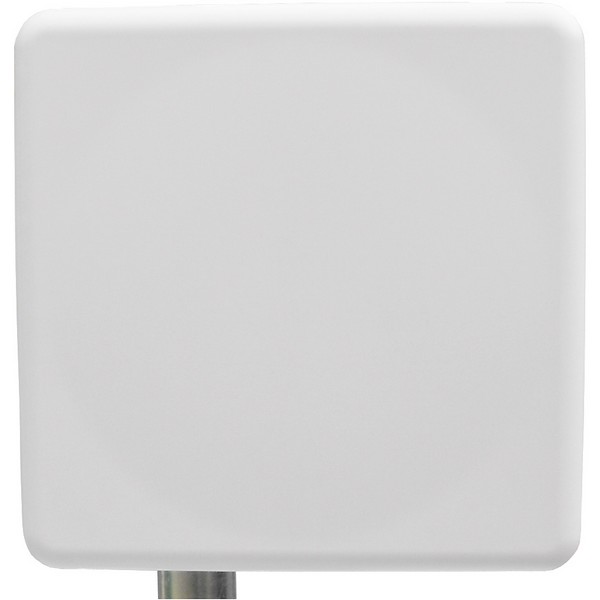

The Panel antenna is constructed of high grade PCB with silver plated pads, UV Resistant ABS plastic radome with aluminum backplate and SMA connector.

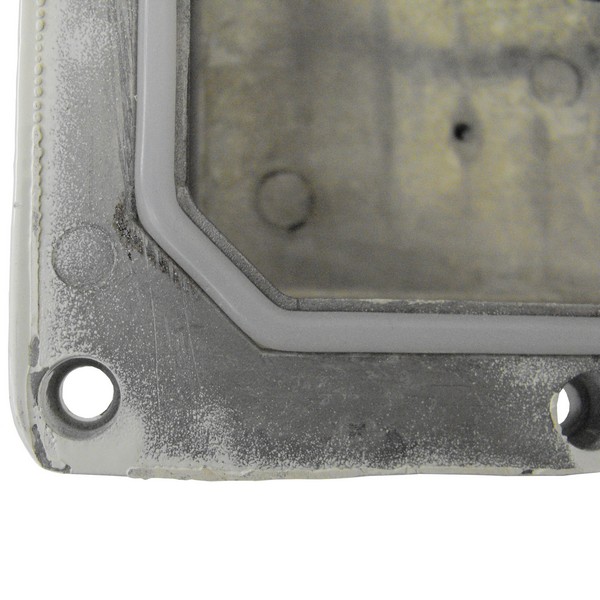

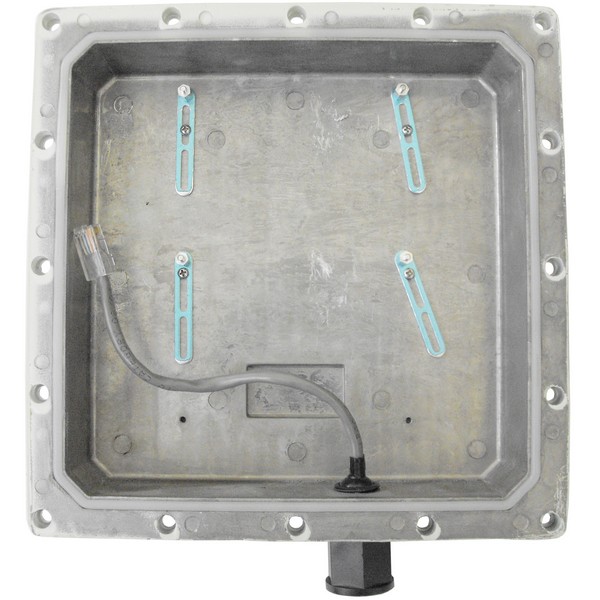

The enclosure is an Aluminum-Magnesium (Al-Mg) alloy die cast construction which is then UV powder coated for additional environmental protection, durability and aesthetics.

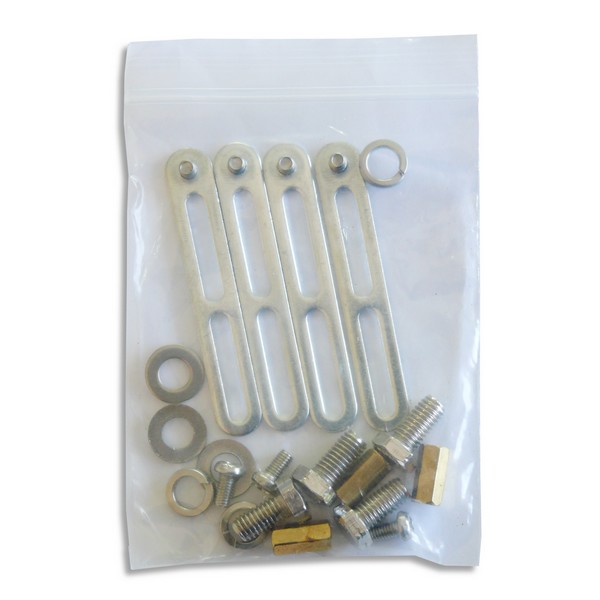

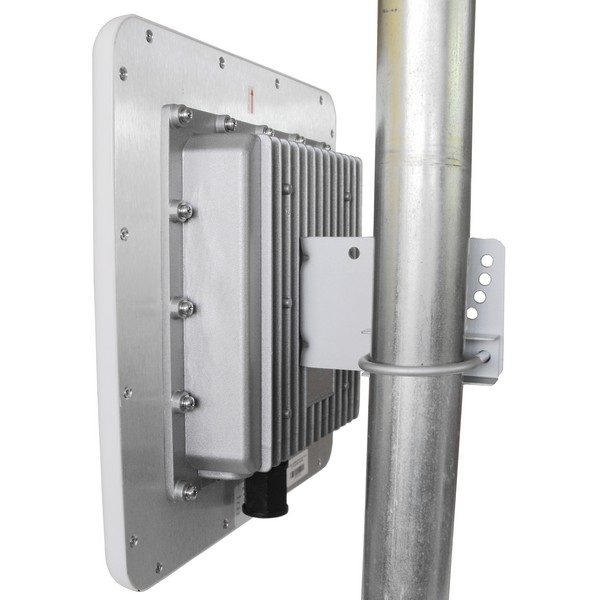

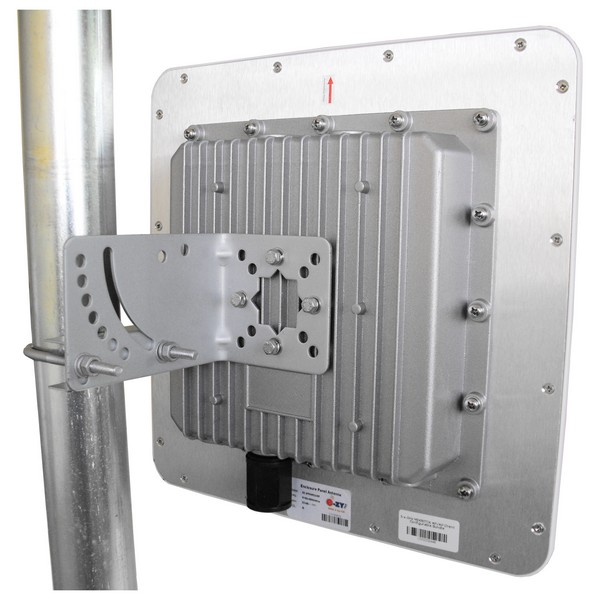

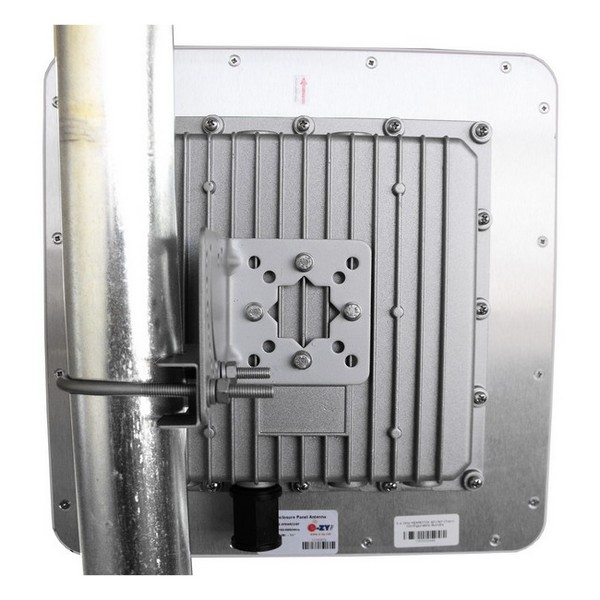

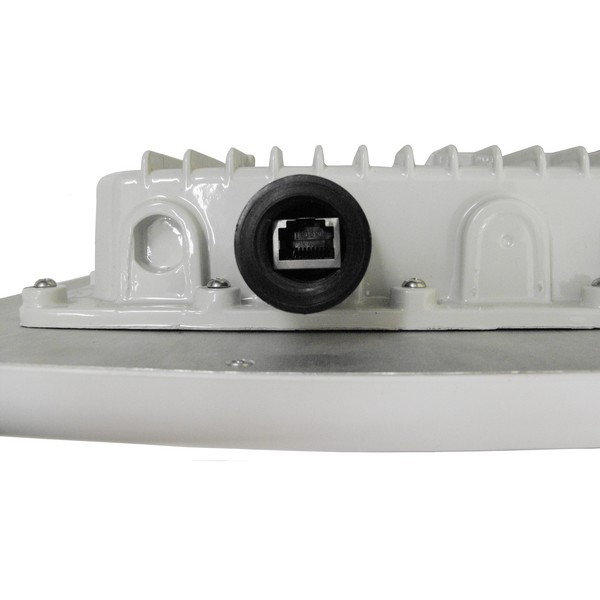

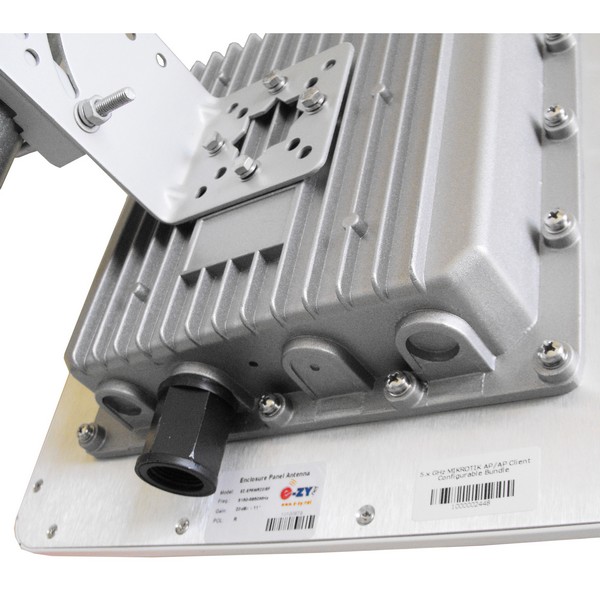

The antenna comes complete with the Panel (SMA connector), Die cast enclosure, RJ45-ECS, 2 optional N Type holes, and heavy duty mounting bracket.

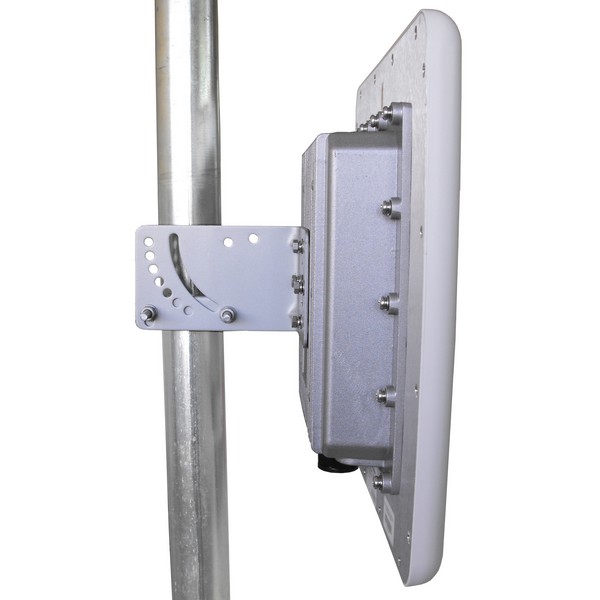

The bracket gives up to 45o of tilt angle.

The antenna can be installed in Vertical or Horizontal Polarization.

Σύνδεσμοι Προϊόντος:
Datasheet

NOTE : Pigtails sold seperately in our Rootenna pigtail section

Parameter Min Typ Max Units Frequency Range 5150   5850 MHz Input Return Loss (S11)  < -14   dB VSWR   1.5 : 1   Impedance   50   OHM Input Power     50 W Operating Temperature -45   +70 Deg C Gain 22 23 24 dBi 3dB Beam Angle   11   Deg Front to Back   >30   dB Cross Pol Rejection   26   dBi Side Lobe     -20 dB Antenna Weight   2.6   Kg Enclosure Weight   1.3   Kg Antenna Dimensions 30.6 x 30.6 x 25 cm Enclosure Dimensions 25 x 25 x 40 cm Wind Speed (MPH) Loading (145 sq. in.) 100 36.5 lb. 125 57.0 lb.

Περιεχόμενα Συσκευασίας:
1 x
1 x
1 x
1 x
1 x

Eπιπρόσθετες φωτογραφίες:
