Price: 32,48€

Order or Qty  Price   > 500€   5+    31,83€  > 1000€   10+    31,18€  > 2000€   20+    30,53€  > 5000€   40+    29,88€  > 10000€   100+    29,23€

No Stock

Order Qty:

Description :

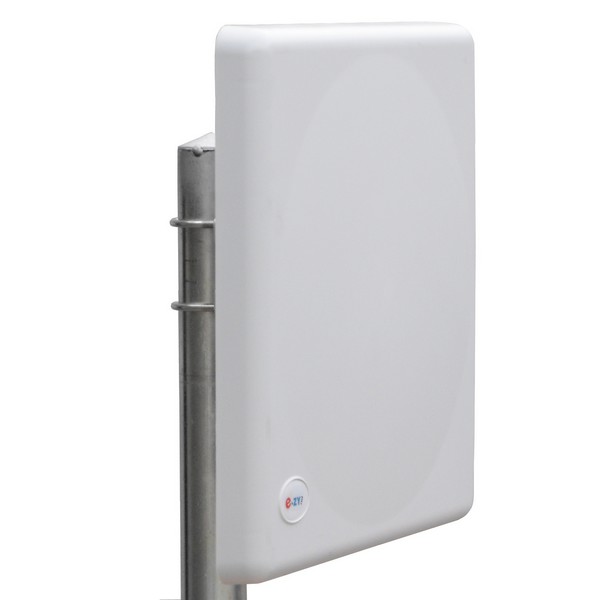

The FP5WR23INF Flat Panel Antenna by e-zy.net offers high gain in a thin low profile package.

The antenna frequency range is from 5150 to 5850 MHz and comes with 23dBi gain.

The antenna can be used in Horizontal or Vertical Polarization with a tight beamwidth of 11o

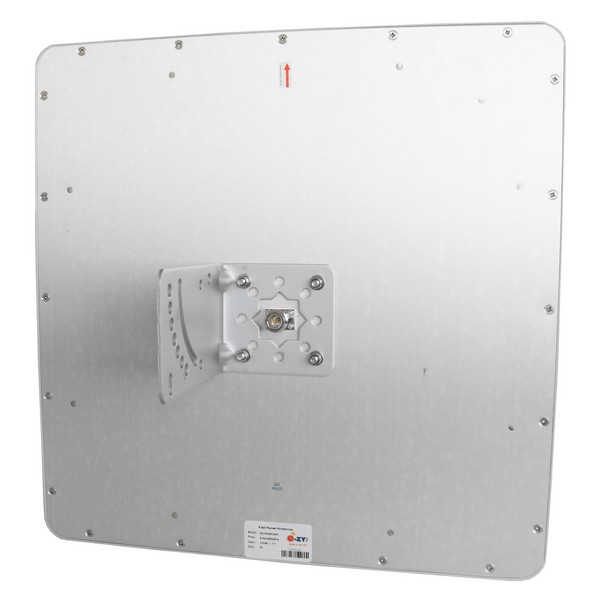

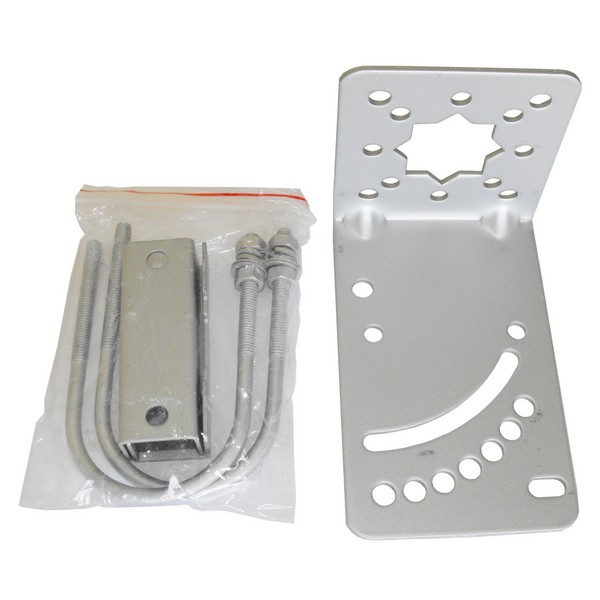

The FP5WR23INF Flat Panel Antenna comes equipped with Mounting Bracket which provides ± 35o degrees of up/down tilt angle and stainless steel hardware which assure long service life.

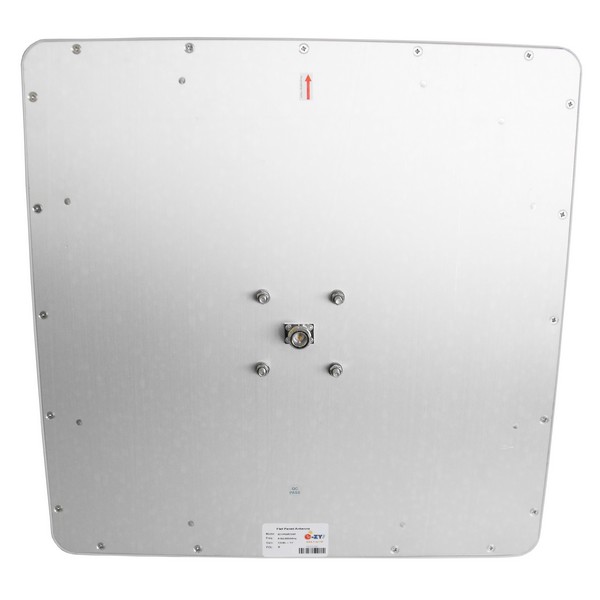

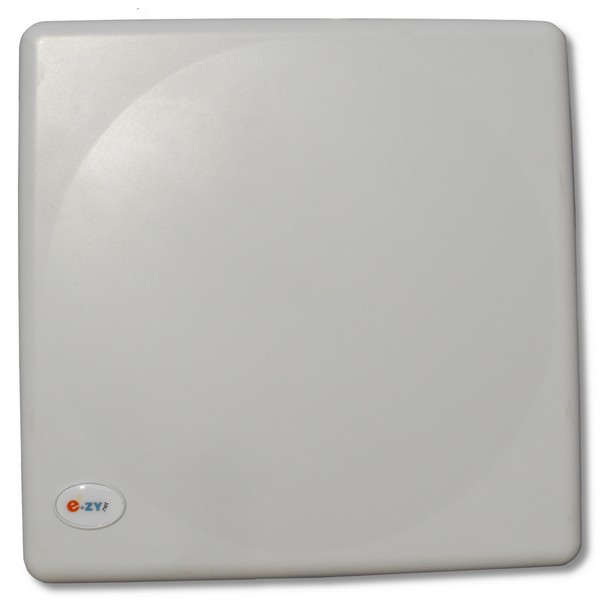

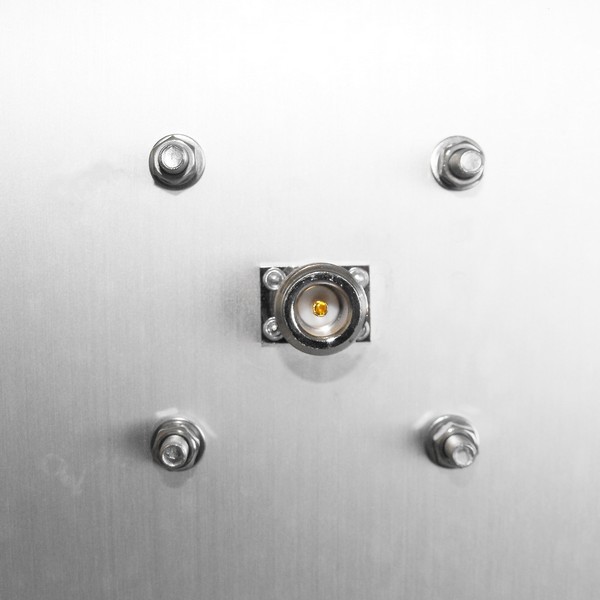

The antenna comes with an embedded N-Type Female connector standard and is constructed of a gray color UV Resistant ABS plastic radome with an aluminum back-plate.

The antenna can be installed in Vertical or Horizontal Polarization.

Product Links:
Datasheet

Specifications :
Freq. Range	5150-5850 MHz
Bandwidth	700MHz
Gain	23 dBi
V.S.W.R	<1.5
Horizontal Beamwidth	11º
Vertical Beamwidth	11º
Max Power	50 W
Polarization	Rotatable (Ver or Hor or 45o)
Impedance	50 ohm
Connector	N-Type Female (embedded)
Antenna Dimensions	370 x 370 x 35 mm
Weight	2 Kg
Radome Material	UV stabilized ABS
Color	Grey
Mounting mast diameter	Ø30 to 50mm

Package Contents:
1 x
1 x

Additional images:
