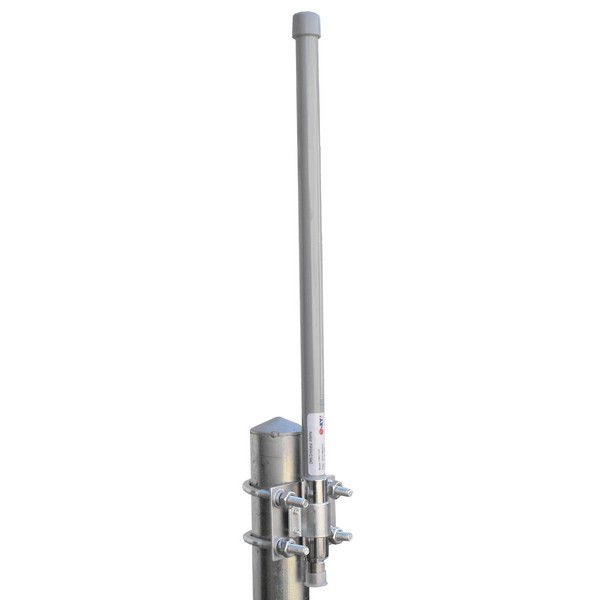

The new e-zy.net OM58V08INF OMNI Directional Antenna is made from sealed UV Stabilized Fiberglass with steel base terminated to an N-Type Female Connector.
The gain of this antenna is 8dBi and comes with 16o of Vertical BeamWidth.

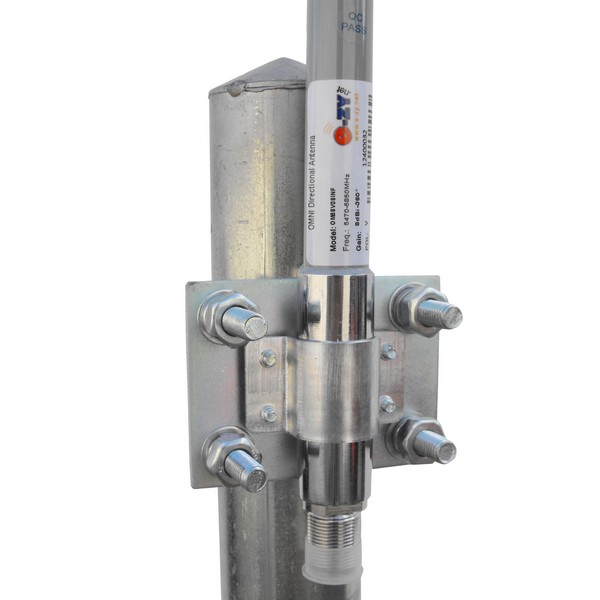

The antenna is supplied with steel mounting bracket and hardware for 1'' to 2'' OD pole.
The OM58V08INF is ideally suited for MultiPoint applications where wide coverage is desired.
|
Specifications |
|
Frequency |
5400-5850MHz |
|
Gain |
8dBi |
|
Polarization |
Vertical |
|
Vertical Beamwidth |
16o |
|
Horizontal Beamwidth |
360o |
|
Impedance |
50 Ohm |
|
Max Input Power |
100 Watts |
|
VSWR |
<1.5:1 avg. |
|
Weight |
0.50 Kg (with bracket) |
|
Body Length |
410mm |
|
Body Diameter |
19mm |
|
Radome Material |
UV-Inhibited Polymer |
|
Mounting Bracket |
25mm to 50mm |
|
Connector |
N-Type Female |
|
Rated Wind Velocity |
60m/s |
