Ubiquiti » UniFi Network » US-8-150W
Ubiquiti US-8-150W, UniFi Switch, 8-Port, 150W
[1836][US-8-150W]
Price: 185,11€
 Order or Qty  Price
 > 500€  5+   183,25€
 > 1000€  10+   181,40€
 > 2000€  20+   179,55€
 > 5000€  40+   177,70€
 > 10000€  100+   175,85€
Prices exclude VAT

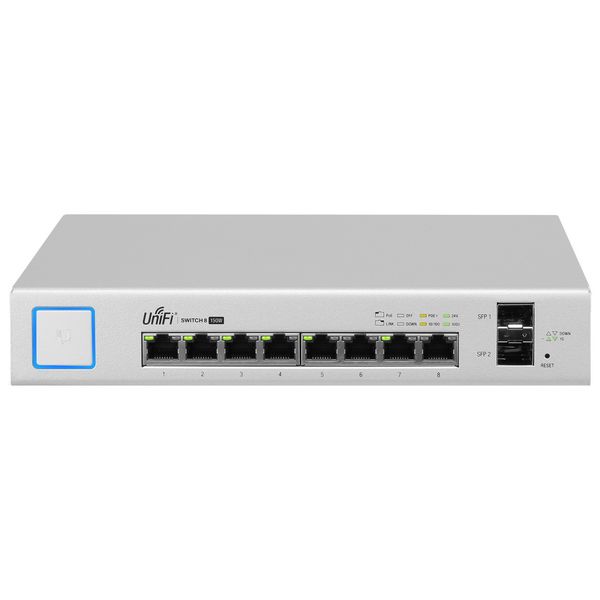

Ubiquiti US-8-150W, UniFi Switch, 8-Port, 150W

No Stock
Order Qty:
UPC:810354024467

Unifi Switch 8 150W

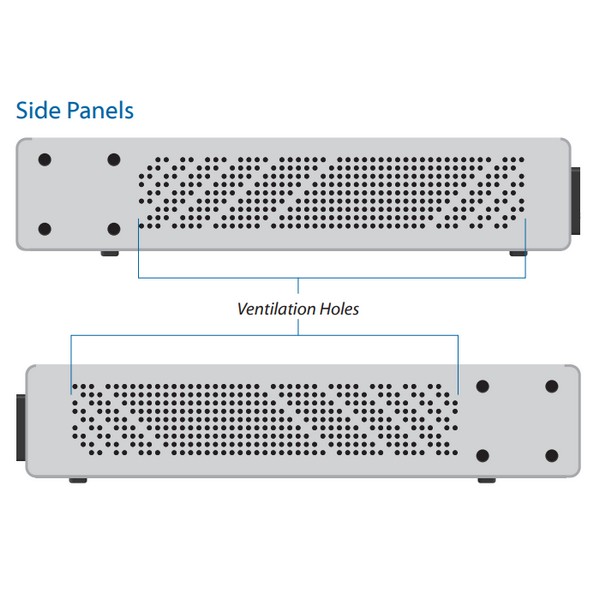

The fanless UniFi Switch delivers quiet yet powerful performance with its 10 independent switching ports.

Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.

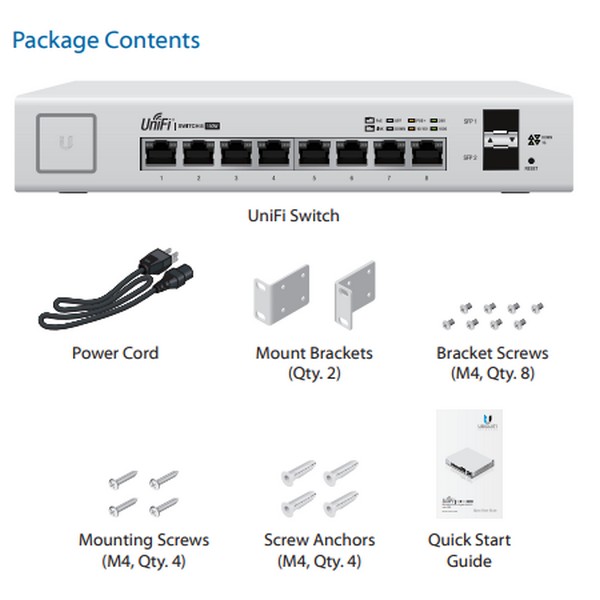

The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.

The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

Specifications:
Dimensions: 204 x 43 x 235 mm
Weight: 1.7 kg
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Max. Power Consumption:
Including PoE Output: 150W
Excluding PoE Output: 20W

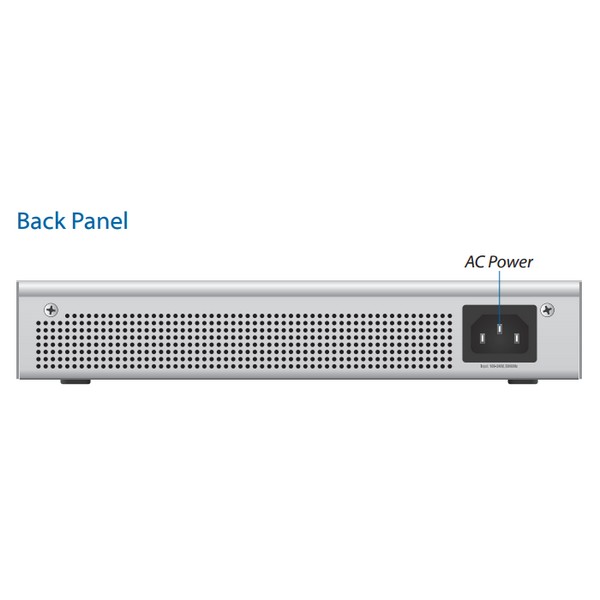

Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
LEDs Per Port:
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity

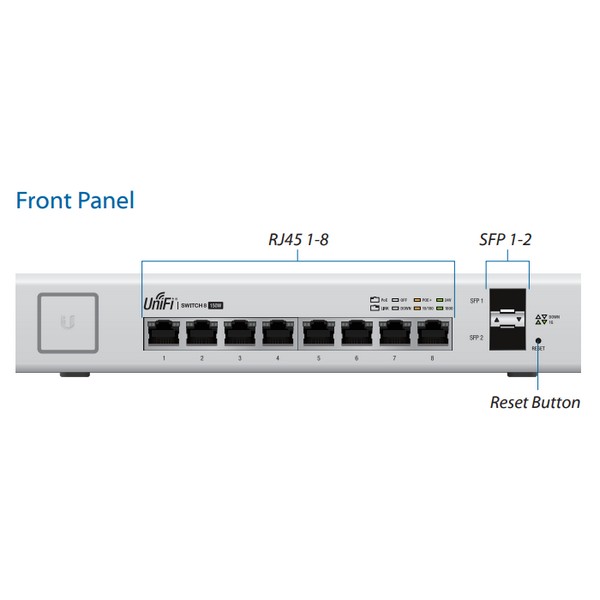

Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface: Ethernet In-Band
Certifications: CE, FCC, IC
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95%
Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port:
PoE Interfaces: POE+ IEEE 802.3af/at
24VDC Passive PoE
Max. PoE+ Wattage per Port by PSE:   34.2W
Voltage Range 802.3at Mode: 50-57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
