RF Elements » HG3-CC-A60-V2
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 17dBi, 60°, V2
[2813][HG3-CC-A60-V2]
Price: 121,51€
 Order or Qty  Price
 > 500€  5+   120,30€
 > 1000€  10+   119,08€
 > 2000€  20+   117,87€
 > 5000€  40+   116,65€
 > 10000€  100+   115,44€
Prices exclude VAT

RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 17dBi, 60°, V2

Ships in:
3-5 working days
Quantity: 20
Order Qty:

HG3-CC-A60-V2

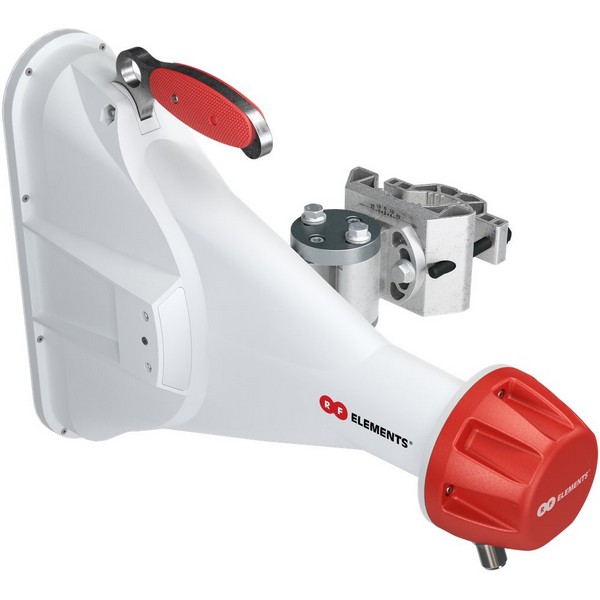

HG3-CC-A60-V2 is a 5GHz sector antenna of the "horn" type from the workshop RF elements and is characterized by 60° asymmetric beam angle, gain 17 dBi and 2x N-Female connectors. This antenna offers the perfect combination of features and functions that address the major weaknesses of today's mainstream sector antennas.

No side lobes

Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.

Coverage without dead zones

The coverage of traditional sector antennas has a specific shape - if the AP is too high, then clients who are close suffer from poor signal quality. As the saying goes: "there is the greatest darkness under the candlestick." Asymmetric sector antennas emit a signal with a circularly flat-shaped shaped beam. For this reason, signal coverage from asymmetric sector antennas is almost free of dead zones, and clients located close to the AP will be satisfied.

Excellent scalability

Unique radiation characteristics, minimal side lobes and extremely low back radiation allow the placement of multiple antennas at one point and the construction of multiple separate points, which will allow better distribution of load on individual APs and increase speeds to individual clients.

Innovative bracket

HG3-CC asymmetric antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.




Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
