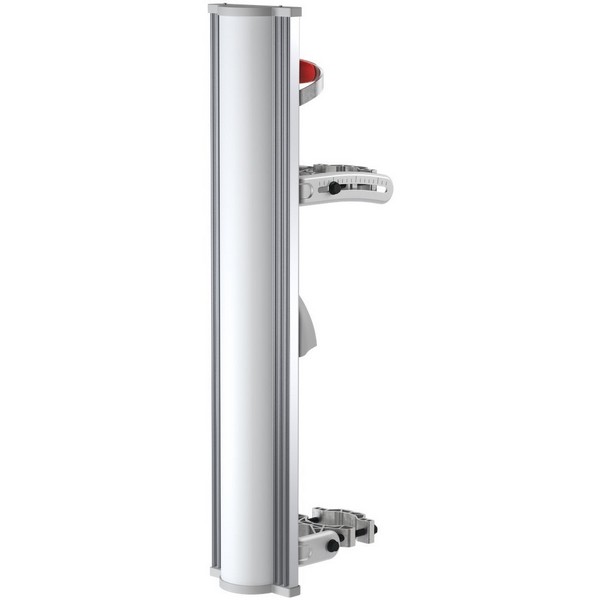

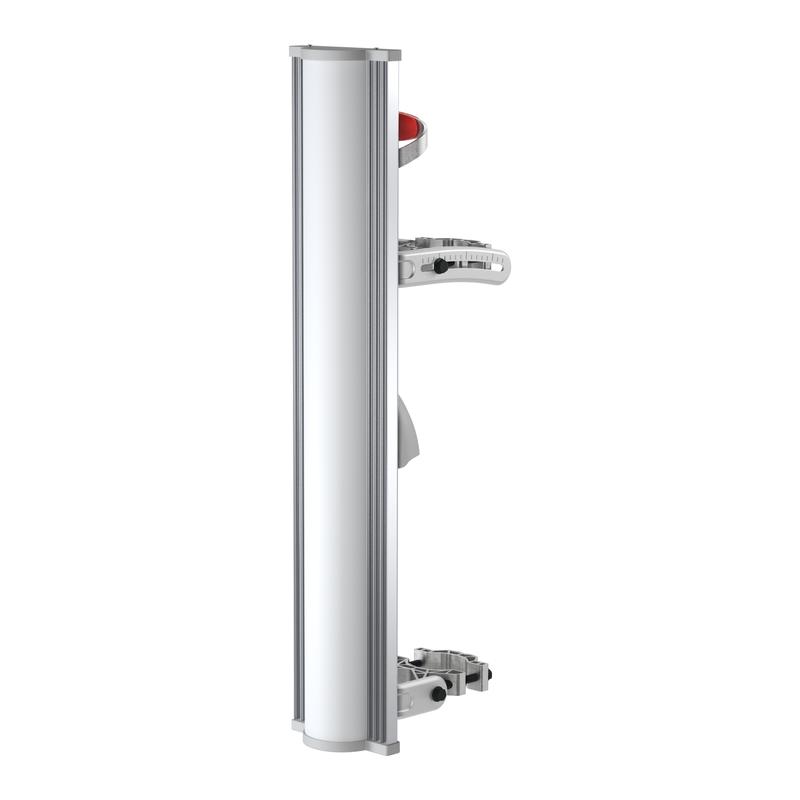

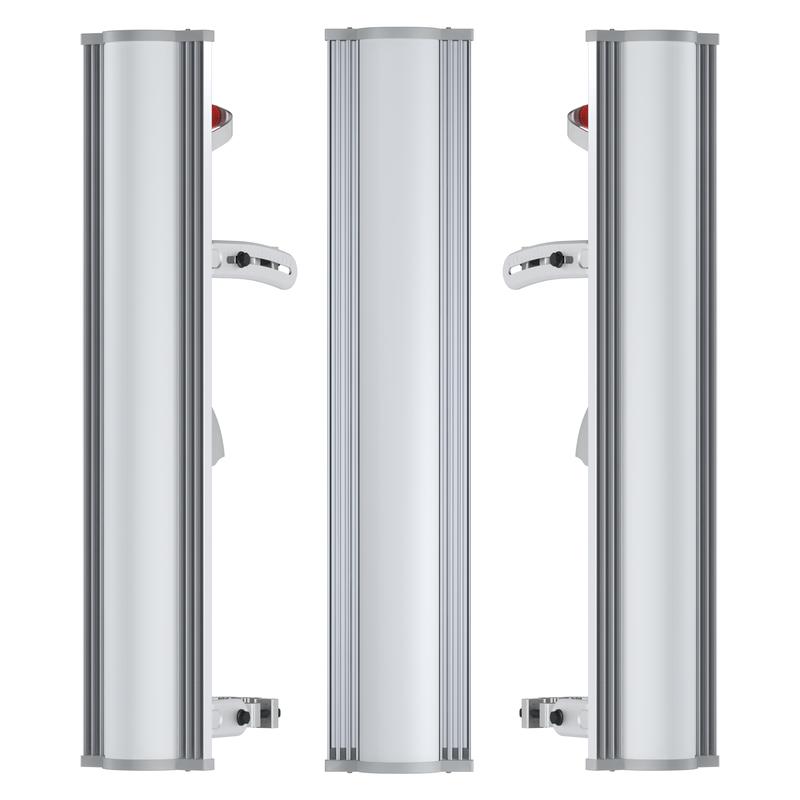

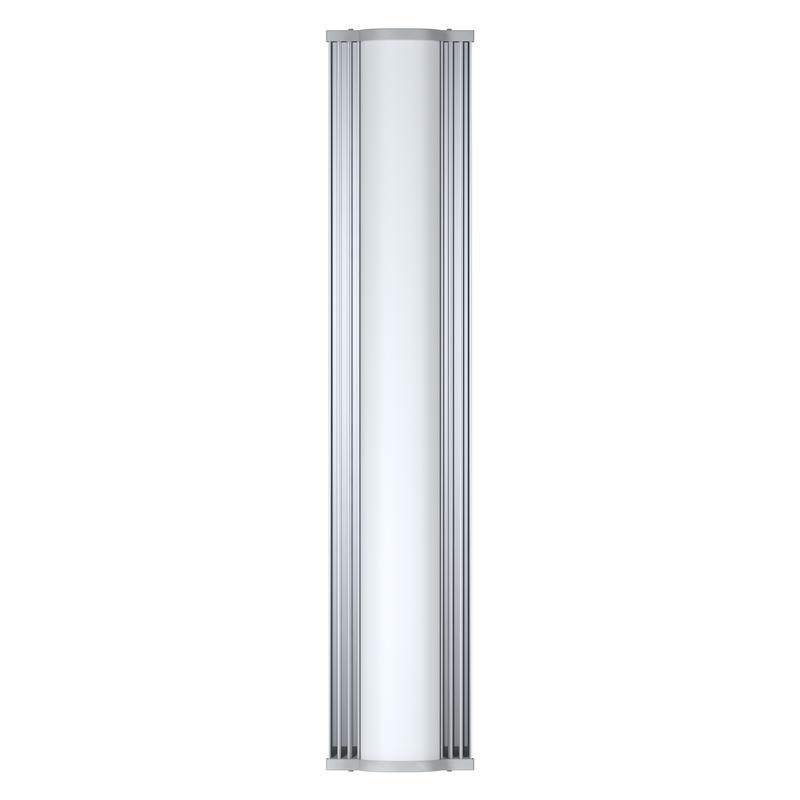

AS-2-14 - Array Sector 2-14
Premium sector antenna with integrated BackShieldTM for improved noise rejection.
The new Array Sector is a superior patch array antenna optimized for excellent performance in sectorial coverage and dense cluster applications.
Operating in the 2.4 GHz band with 14 dBi gain and a beam angle of 112°.
Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.
|
Technical Data |
|
|
Antenna Connection |
2 x RP-SMA on integrated semi-flex pigtails |
|
Antenna Type |
Patch Array Sector |
|
Enviromental |
IP55 |
|
Temperature |
-35°C to +60°C |
|
Wind Survival |
160 km/hour |
|

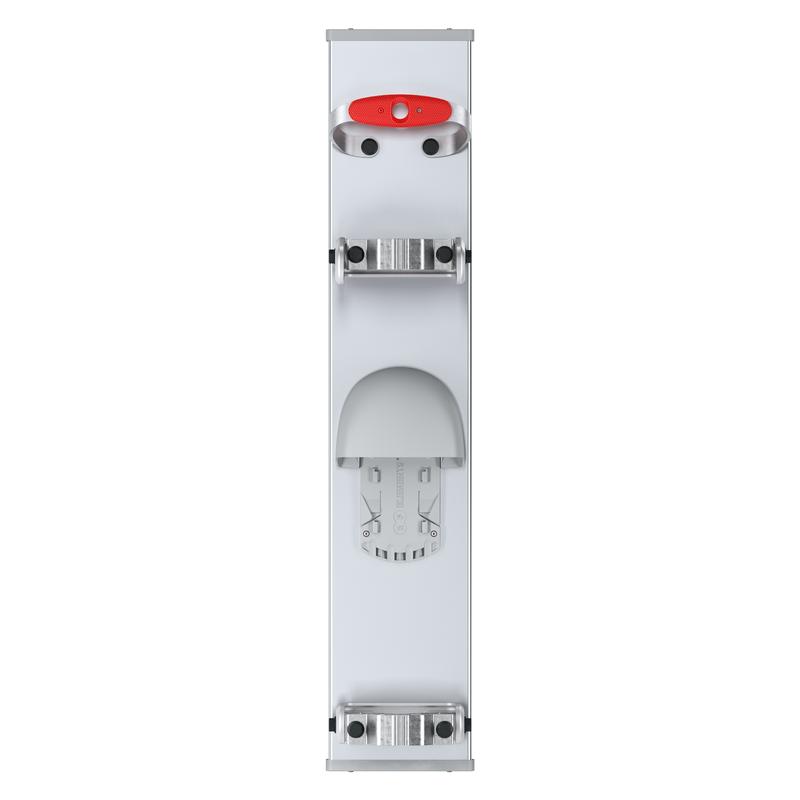

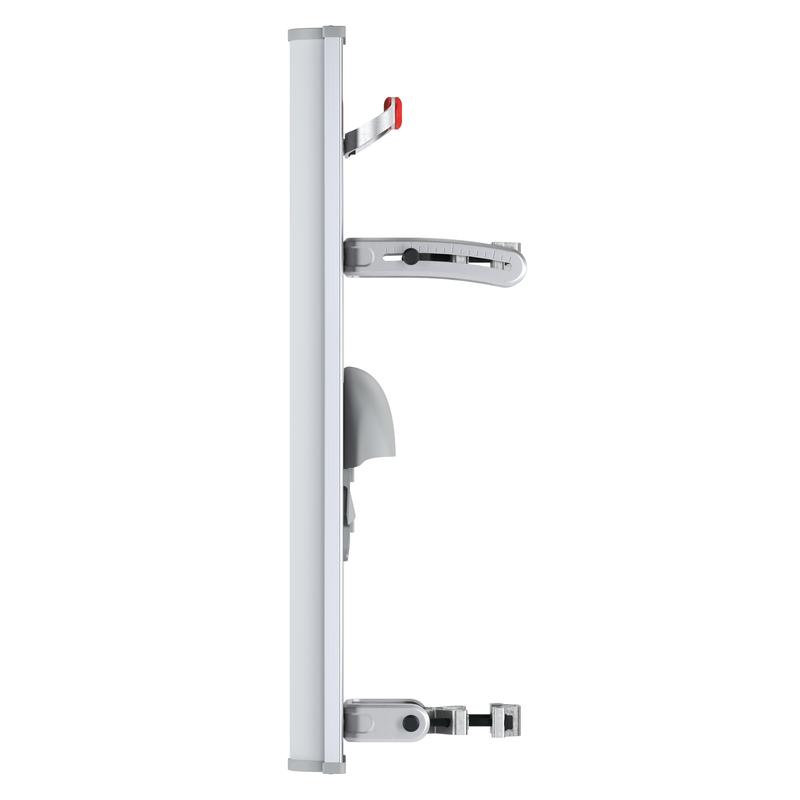

Pole Mounting |
40-80 mm
Recommend as close to 80 mm as possible |
|
Product ID |
AS-2-14 |
|
Frequency Range |
2400 - 2484 MHz |
|
Gain |
14 dBi |
