The plenum-rated cnPilot™ e410 with 2×2 MU-MIMO packs a max transmit power of 25 dBm and channels up to 80MHz wide on 5 GHz – offering more flexibility than ever for both coverage and capacity.
Future proof your indoor deployments with the compact, low profile 802.11ac Wave 2 Multi-user MIMO (MU-MIMO) beamforming, highspeed e410 Enterprise access point – perfect for schools, malls, hotels and resorts (Hospitality), coffee shops, Multi-dwelling units (MDUs), or any indoor environment that needsreliable, high performance access points.
CONTROLLER MANAGED + AUTONOMOUS
-
Managed by Cambium’s cnMaestro™ cloud controller or On-premises controller, the cnPilot e410 management includes:
-
Zero touch onboarding and configuration
-
Inventory tracking & Monitoring
-
Mass Configuration &Upgrade
-
Dashboard views with ει
-
Troubleshooting
-
Hierarchical device organization
CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY
The e410 supports seamless roaming for up to 2,048 clients without needing a controller in the network! Hotspot portal hosting on the AP itself offers controllerless simplicity.
MONETIZE: VOUCHERS. SOCIAL LOGIN
Monetize your Wi-Fi service with cnMaestro’s Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway. These features – along with the ability to create time, rate and volume-limited traffic profiles – make the e410 ideal for hotels, coffee shops, schools, campgrounds, and office guest Wi-Fi.
|
Specifications |
|
Connectors and Interfaces |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Physical characteristics |
|
Purpose: |
Indoor |
|
Operating temperature [°C]: |
0 up to 50 |
|
Weight [g]: |
380 |
|
Depth [mm]: |
170 |
|
Width [mm]: |
170 |
|
Height [mm]: |
41 |
|
Power |
|
Power over Ethernet: |
802.3af |
|
PoE type: |
PoE-In (only) |
|
Max. power consumption [W]: |
13 |
|
Software |
|
Operating mode: |
Access Point |
|
IPv6 support: |
Yes |
|
Default IP address: |
192.168.0.1, Dynamic from DHCP |
|
Default login and password: |
admin / admin |
|
Wireless features |
|
Wireless frequency: |
2.4 + 5 GHz (dual band) |
|
WiFi standards: |
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g |
|
MU-MIMO: |
Yes |
|
Hotspot 2.0: |
Yes |
|
Transmission speed - WiFi 2.4GHz [Mb/s]: |
400 |
|
Transmission speed - WiFi 5GHz [Mb/s]: |
866 |
|
Tx power 2.4GHz [dBm]: |
24 |
|
Tx power 5GHz [dBm]: |
25 |
|
2.4GHz MIMO: |
2 x 2 |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Built-in |
|
Roaming: |
Yes |
|
Antenna gain [dBi]: |
5 |

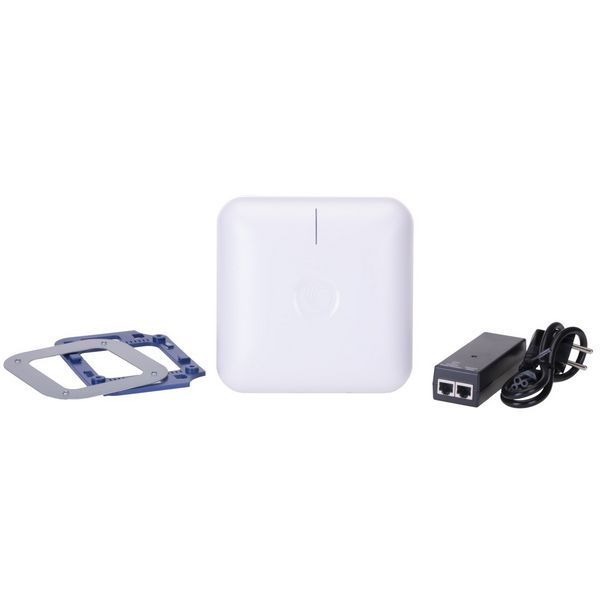

| Package Contents: |
|---|
| 1 x PL-E410PEUA-EU
|
| 1 x PoE Power adapter
|
| 1 x Wall Mounting |
