Mimosa » 100-00036
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
[100-00036]
Price: 1.359,06€
 Order or Qty  Price
 > 500€  5+   1.345,47€
 > 1000€  10+   1.331,88€
 > 2000€  20+   1.318,29€
 > 5000€  40+   1.304,70€
 > 10000€  100+   1.291,11€
Prices exclude VAT

Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)

Ships in:
3-5 working days
Order Qty:

B11, 1,5Gbps PtP backhaul

Mimosa’s B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements at the lowest cost per Mbps in the industry.

Just Add Fiber

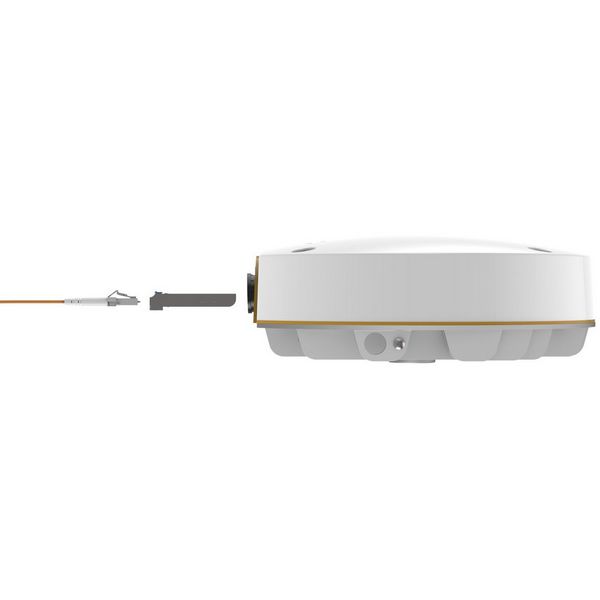

Fiber to wireless is the future of connectivity, and the B11 is ready for it. Simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you’re not quite ready for fiber, the B11 also offers a standard Gigabit Power-over-Ethernet connection.

Bandwidth Changes like Night & Day

During peak evening hours, downloads and video streaming now represent nearly 90% of traffic, while daytime symmetric services and prioritized upstream traffic are as critical as ever to businesses. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized. The B11, however, can dynamically adapt to bandwidth demand using Auto-TDMA technology, maximizing spectrum utilization throughout the day.

Precision Engineered for Reliability

Licensed spectrum has always been preferred for its increased link reliability. Now, with the precision engineering of the B11, you can enjoy spectrum efficiency, incredible industry-leading stability, and for the first time groundbreaking dynamic bandwidth control.

Right on Target

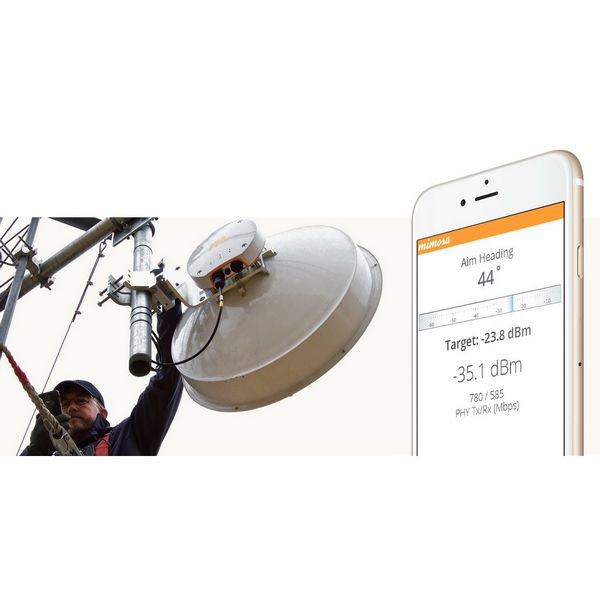

In the past, aiming your antenna to find the best signal was more art than science. We’ve taken the guesswork out of antenna aiming by adding 2.4 GHz Wi-Fi right in the radio, turning any smartphone into the most sophisticated aiming tool on the planet! Now installers can both view radio details and target signal levels instantaneously with the most precise aiming technology available in the industry.

Specifications
Connectors and Interfaces
LAN speed (1) 10/100/1000Mbps
Optical interfaces (1) 1000Mbps
Physical characteristics
Wind load [km/h] 200
Purpose Outdoor
Operating temperature [°C] -40 up to 55
Depth [mm] 70
Width [mm] 158
Height [mm] 260
Power
Power over Ethernet 802.3at, 48 .. 56V DC
Power type PoE
Max. power consumption [W] 30
Software
Management Web management
Operating mode Client, Access Point
IPv6 support Yes
Default IP address 192.168.1.20
Default login and password Is set by the user at the first startup
Wireless features
Sensitivity [dBm] -93
Frequency range [MHz] 10000 - 11700
Maximum modulation 256 QAM
MIMO, SISO 4 x 4
Channel bandwidth [MHz] 20, 40, 80
Wireless frequency 10 GHz, 11 GHz
Transmission speed - 10GHz [Mb/s] 1733
Transmission speed - 11GHz [Mb/s] 1733
Tx power 10GHz [dBm] 27
Security 128bit AES
Type of antenna Detachable


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
