Mimosa » 100-00066

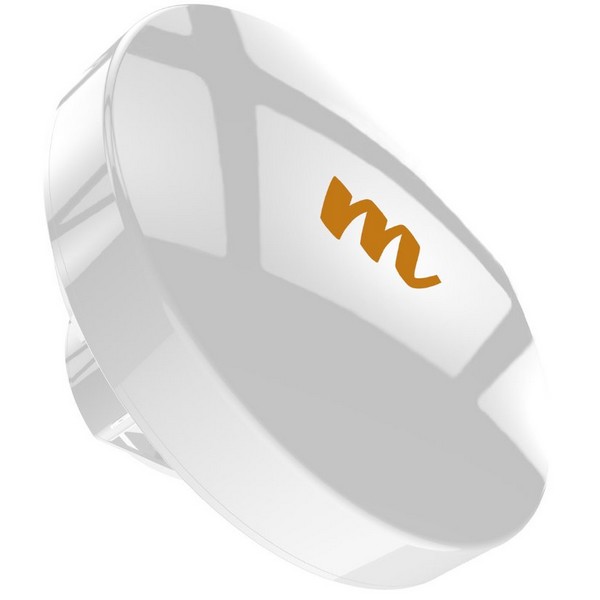

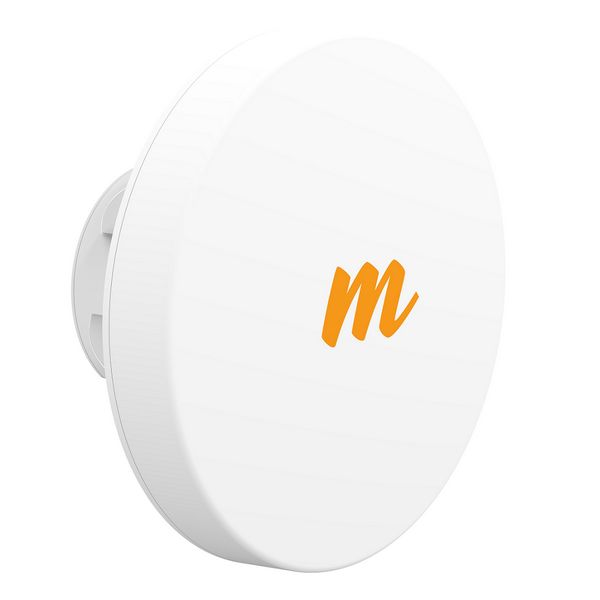

Mimosa C5, client unit, 866Mbps, 20dBi
Price: 110,32€
 Order or Qty  Price
 > 500€  5+   109,21€
 > 1000€  10+   108,11€
 > 2000€  20+   107,01€
 > 5000€  40+   105,90€
 > 10000€  100+   104,80€
Prices exclude VAT

Mimosa C5, client unit, 866Mbps, 20dBi

Ships in:
3-5 working days
Order Qty:

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.

Compact But Powerful

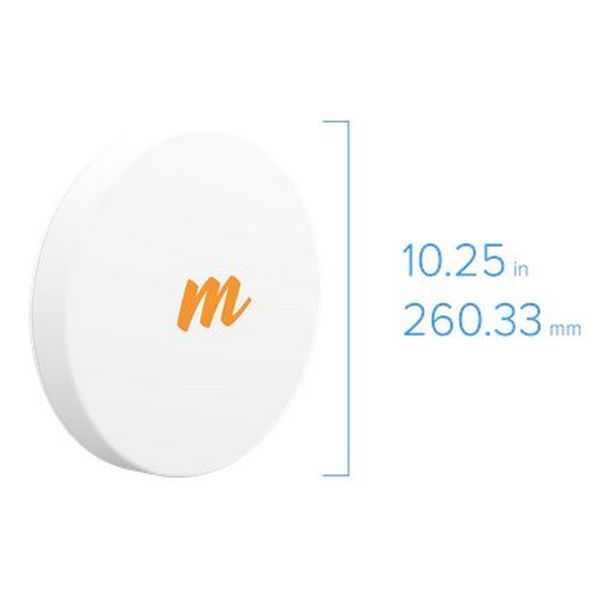

The attractive C5 design delivers incredible range with only a 10.25 in (260 mm) diameter integrated antenna. With cutting edge dual 45o slant polarization design and aperture efficiency of greater than 50%, the C5 delivers 20 dBi antenna gain in the smallest design possible.

TDMA GPS Sync Client

Client-side support for the Mimosa C5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point, and can dynamically request upstream bandwidth. As opposed to alternative reserved (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

Multi-User MIMO

Coming soon. A key component to scaling network efficiency is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum "spatially" via unique antenna beamforming. Each client device collaborates spatial geographic information with its associated Mimosa C5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

Rugged and Affordable

Protection from harsh environments now comes at an affordable cost. The C5 includes a unique cable boot environment protector and sealing gel, and accommodates installation practices for unterminated and pre-terminated RJ-45 cable connectors.

Connectors and Interfaces
LAN speed (1) 10/100/1000Mbps
Gigabit LAN Yes
GPS modul Yes
Physical characteristics
Purpose Outdoor
Collar Yes
Operating temperature [°C] -40 up to 55
Weight [g] 720
Depth [mm] 153
Width [mm] 260
Height [mm] 260
Power over Ethernet 48 .. 56V DC
PoE type PoE-In (only)
Max. power consumption [W] 7
Operating mode Client
Default IP address
Default login and password Is set by the user at the first startup
Wireless features
Sensitivity [dBm] -93
Cross-Pol Isolation [dB] 20
Maximum modulation 256 QAM
Wireless frequency 5 GHz
WiFi standards Mimosa SRS, WiFi Interop
Transmission speed - WiFi 5GHz [Mb/s] 866
Tx power 5GHz [dBm] 20
Security WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO 2 x 2
Azimuth beam width (-6dB) [°] 14, 14
Type of antenna Built-in
Internal antennas 2
Antenna gain [dBi] 20

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
