The product is
no longer available |
| Prices exclude VAT |
|
|
|
|

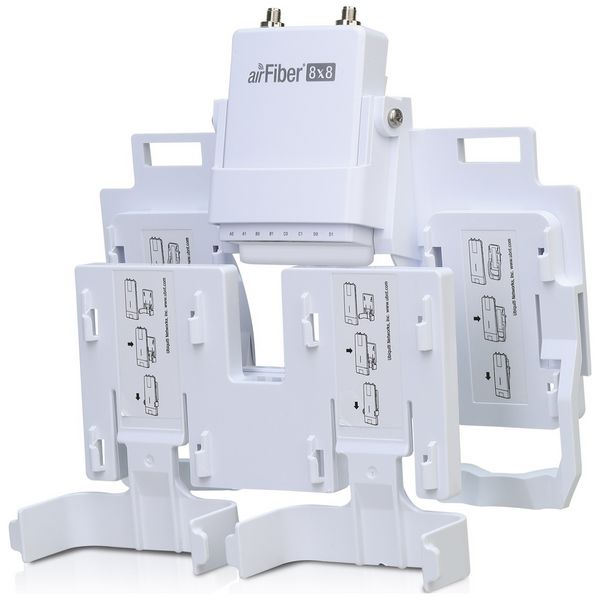

AF-MPX8
Combine multiple airFiber X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit Point-to-Point throughput.
Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.
You can use radio channels of different sizes – even adjacent channels with no guard band – and place them anywhere within the radio band.
The airFiber NxN Multiplexer can be attached to most 5 GHz airFiber X or RocketDish antenna models.
Mounting multiple airFiber X radios on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs.
|
Specifications: |
|
Dimensions: |
210.5 x 240.9 x 109 mm |
|
Weight: |
0.45 kg |
|
RF Connectors: |
(2) RP-SMA Weatherproof (CH0, CH1)
(8) RP-SMA Weatherproof
(A0, A1, B0, B1, C0, C1, D0, D1)
|
|
Cable Loss
5 GHz
4.7 GHz:
|
7.2 dB
7.9 dB
|
|
Multiplex MIMO: |
4 x (2x2) |
|
Mounting: |
airFiber X/Rocket Mount Compatible |

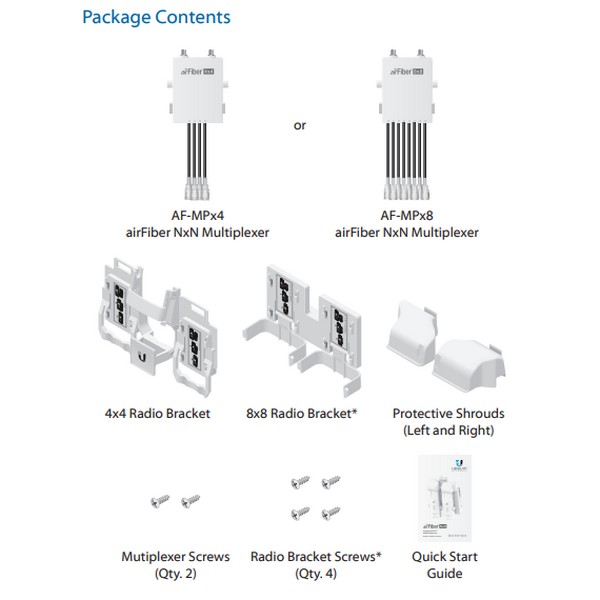

| Package Contents: |
|---|
| 1 x AF-MPX4
|
| 1 x Mounting Kit |
| Additional Images: |
|---|
 |
|
