| Product Details |
|---|
| PID: | 2263 |
| SKU: | UAP-IW-HD |
| UPC: | 817882025485 |
| Weight: | 392 g |
| Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Warranty: | 24 months |

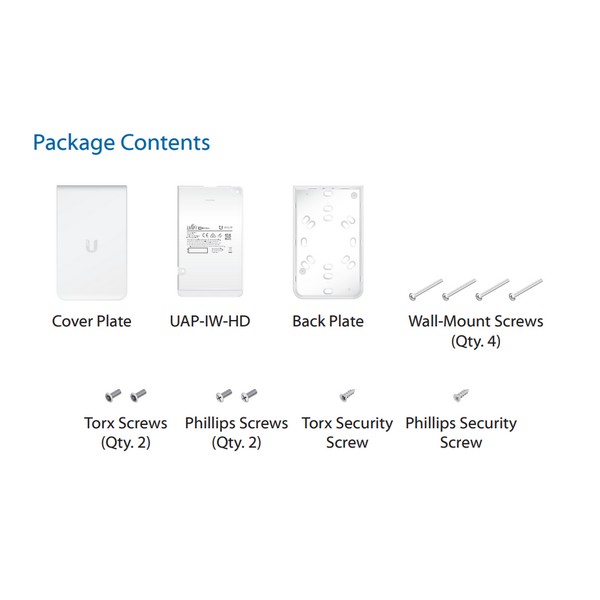

| Package Contents: |
|---|
| 1 x UAP-IW-HD |
| 1 x Wall Mounting Kit |
| ✕ Without PoE |
|

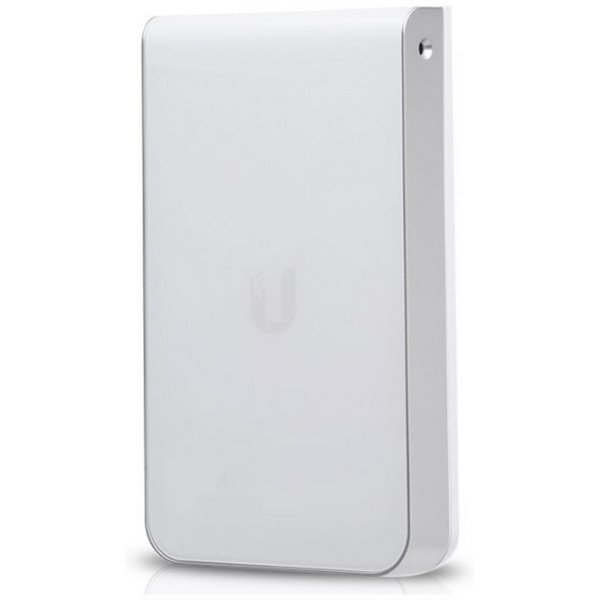

Ubiquiti UAP-IW-HD, UniFi UAP-IW-HD Access Point
UAP-IW-HD
It is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Also it can be conveniently powered by an 802.3af or 802.at compliant switch.
We recommend powering your UniFi devices with a UniFi PoE Switch.
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.
|
Specifications: |
|
Dimensions |
139.7 x 86.7 x 25.75 mm |
|
Weight |
210 g |
|
Buttons |
Reset |
|
Power Method |
802.3af PoE
802.3at PoE+ |
|
Supported Voltage Range |
44 to 57VDC |
|
Power Supply |
UniFi Switch (PoE) |
|
PoE Out |
48V Passthrough (Pins +1, 2; -3, 6) |
|
Power Save |
Supported |
|
Beamforming |
Supported |
|
Maximum Power Consumption with PoE Passthrough |
11W 23W* |
TX Power
2.4 GHz
5 GHz |
23 dBm
26 dBm |
|
Antennas
Dual-Band
Single-Band
|
(2) Single-Port, Single-Polarity Dual-Band Antennas,
2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
(2) Single-Port, Dual-Polarity, Single-Band Antennas,
5 GHz: 6 dBi Each |
|
Wi-Fi Standards |
802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
802.11w/PMF |
|
BSSID |
Up to 8 per Radio |
|
Mounting |
1-Gang Electrical Wall Box (Not Included) |
|
Operating Temperature |
-10°C to 60°C |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-User Rate Limiting |
|
Guest Traffic Isolation |
Supported |
|
WMM |
Voice, Video, Best Effort, and Background |
|
Concurrent Clients |
200+ |
|
Standard |
Data Rates |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
