HG4-TP-S30 - Symetrical Horn with TwistPort, 5GHz, 18dBi, 30°, Gen3

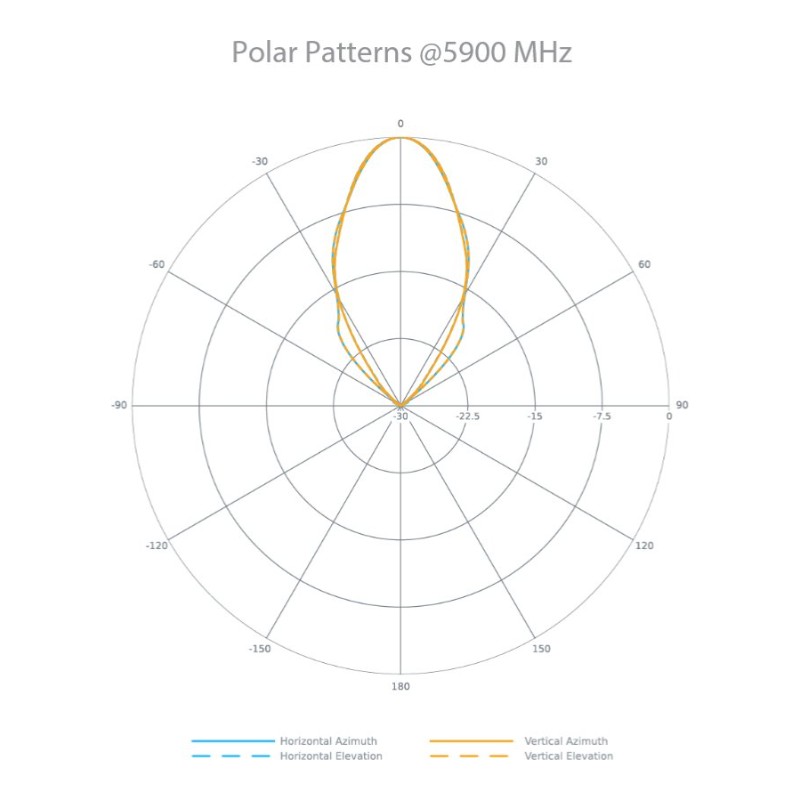

Symmetrical Horn™ 30° antennas deliver a symmetrical beam pattern with identical beam width in both azimuth and elevation planes.
The radiation pattern features heavily suppressed side lobes, providing excellent noise immunity and superior performance in dense wireless environments.
The 30° beam represents an optimal choice for balanced coverage, compact form factor, and exceptional scalability of wireless networks.
The new HG4 generation introduces a redesigned antenna body made from extruded aluminum, significantly improving corrosion resistance, and outdoor longevity.
The updated design also integrates the proven UBR mount, a robust and easy-to-install solution tested in tens of thousands of real-world deployments.
Enhanced materials and optimized construction deliver reduced weight, superior durability, and long-term reliability in all weather conditions
|
Specifications: |
|
Frequency Range |
5150 - 6400 MHz |
|
Gain |
17 dBi |
|
Azimuth Beam Width (-3 dB) |
H 31° / V 30° |
|
Elevation Beam Width (-3 dB) |
H 21° / V 20° |
|
Azimuth Beam Width (-6 dB) |
H 44° / V 45° |
|
Elevation Beam Width (-6 dB) |
H 30° / V 29° |
|
Beam Efficiency |
90 % |
|
Front-to-Back Ratio |
30 dB |
|
Hardware & Connectivity |
|
Antenna Connection |
TwistPort™ Waveguide Port |
|
Antenna Type |
Asymmetrical Horn |
|

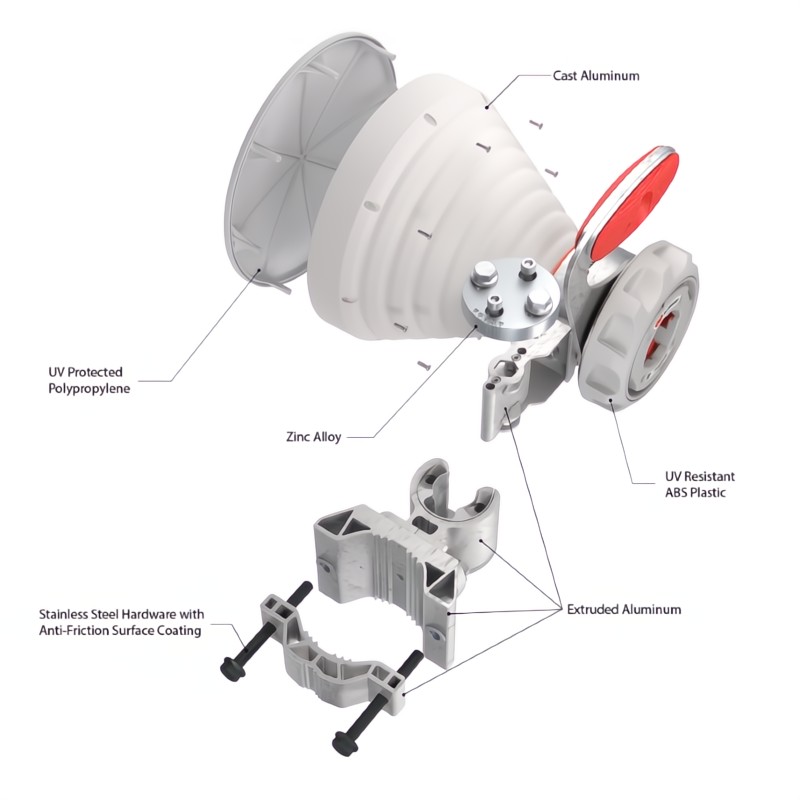

Mechanical & Environmental |
|
Materials |
UV Resistant ABS, Polyethylene, Aluminum, Stainless Steel |
|
Environmental Rating |
IP55 / UL 94 HB |
|
Mechanical Tilt |
± 25° |
|
Pole Mounting Diameter |
30 - 80 mm |
|
Temperature Range |
-30°C to +55°C |
|
Wind Survival |
180 km/h |
| Package Contents: |
|---|
| 1 x HG4-TP-S30
|
| 1 x Mounting bracket |
|
