RJ12 splitter, 3*I2C/1-Wire + 4*1-Wire
Splitter for 1-Wire and I2C bus. Works with DS18B20 and AM2320 sensors.

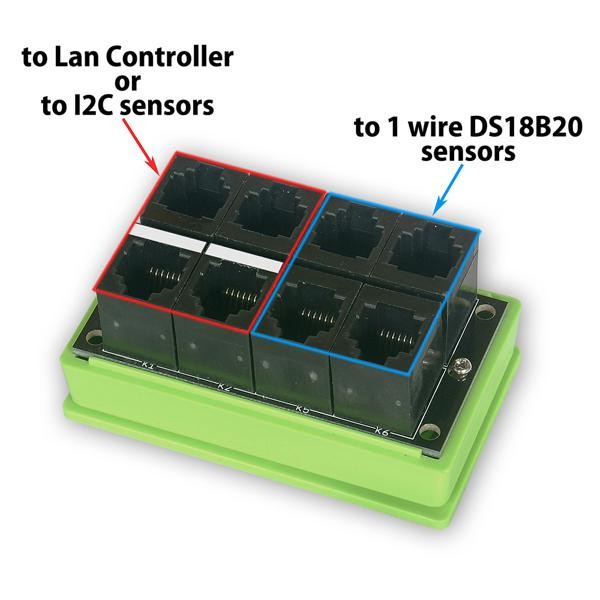

The color-coded sockets are universal (I2C/1-Wire), the others are only for 1-Wire bus (DS18B20).
The extension cord should be connected to the color-coded socket.
Spliter can support up to 3 devices via I2C, but please check the sensor description to see if they can work together.

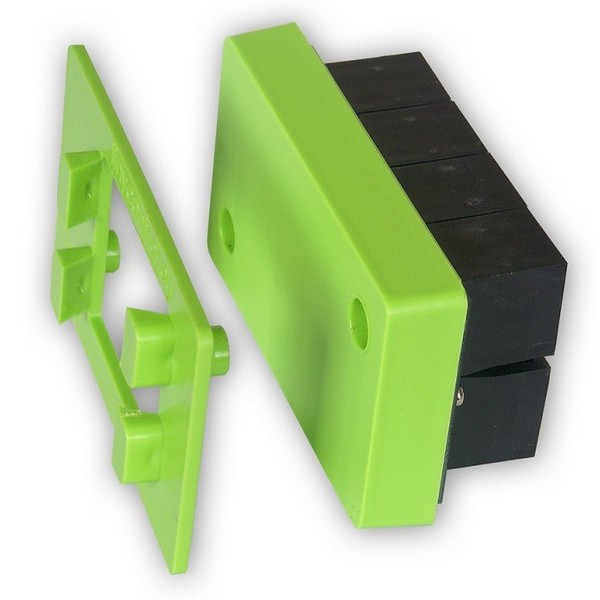

Possible mounting on DIN rail.
|
Specifications |
|
Dimentions |
66mm x 36mm x 18mm |
|
Ports |
8 x RJ12 |
