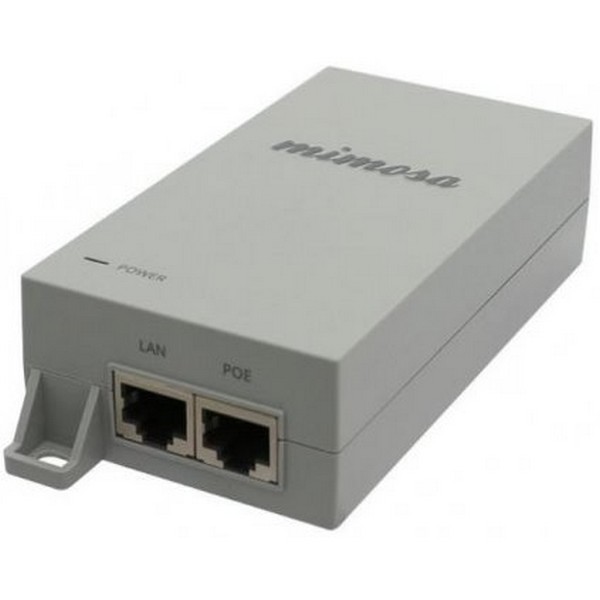

High quality original PoE adapter for Mimosa B24 with grounding, LED indication, output voltage 50V and max. Current 1.2A. The maximum output power is 60W. This is a Gigabit version with power supply in all 4 pairs. It is not backward compatible with 100Mbps devices, due to the power supply, which is routed through all 8 pins.
|
Specifications: |
|
Connectors and Interfaces |
|
Ethernet speed [Mbps]: |
10/100/1000 |
|
Gigabit LAN: |
Yes |
|
Physical characteristics |
|
Shielding: |
Yes |
|
Depth [mm]: |
115 |
|
Width [mm]: |
61 |
|
Height [mm]: |
32 |
|
Power |
|
Pin powering: |
1,2,4,5 (+), 3,6,7,8 (-) |
|
The input voltage [V]: |
230V AC |
|
Output Power [W]: |
60 |
|
LED indication: |
Yes |
|
PoE Out ports: |
1 |
|
Output Voltage [V]: |
50 |
|
Output Current [A]: |
1,2 |
|
Efficiency [%]: |
85+ |
| Package Contents: |
|---|
| 1 x B24-POE |
|
