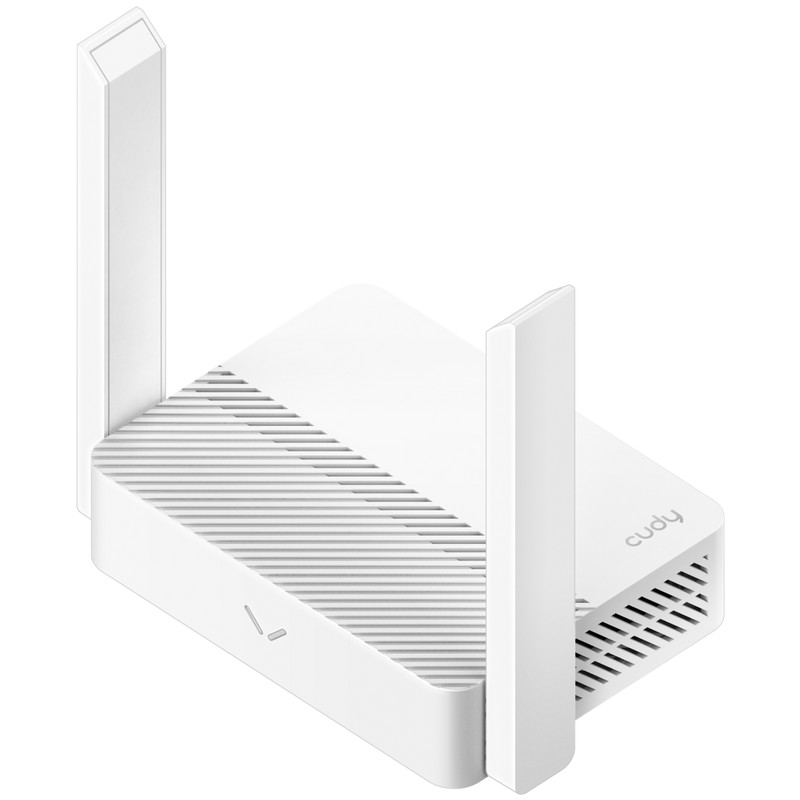

WR1200E - AC1200 Dual-Band Wi-Fi Router
A dual-band WiFi router with three Fast Ethernet ports allows smooth video playback, gaming, and a maximum of 100 Mbps internet access, featuring MU-MIMO.
-
4-Stream Dual-Band Wi-Fi 5
-
867 Mbps + 300 Mbps Wi-Fi 1
-
4× Fast Ethernet Ports
-
40 Connected Devices 2
-
Covers 100m²*
-
VPN Client of WireGuard, OpenVPN, etc
-
Router/AP/RE/WISP/Client Modes
-
Cudy App
|
WR1200E 1.0 |
|
Chipset |
MT7628 |
|
CPU Details |
580 MHz Single-Core, MIPS24KEC |
|
Flash/ROM |
8 MB (64 Mbit ) NOR |
|
DDR/RAM |
64 MB (512 Mbit) DDR2 |
|
5 GHz Wi-Fi Speed |
867 Mbps |
|
2.4 GHz Wi-Fi Speed |
300 Mbps |
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
2× Fixed |
|
5 GHz Antenna Gain Max |
4.93dBi |
|
2.4 GHz Antenna Gain Max |
3.49dBi |
|
FEM or PA/LNA |
5 GHz: 2× Internal
2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
Max: 170 m
Indoor WiFi range varies. |
|
Wall Performance |
One wooden walls with thickness < 10 cm
One concrete wall with thickness < 20 cm |
|

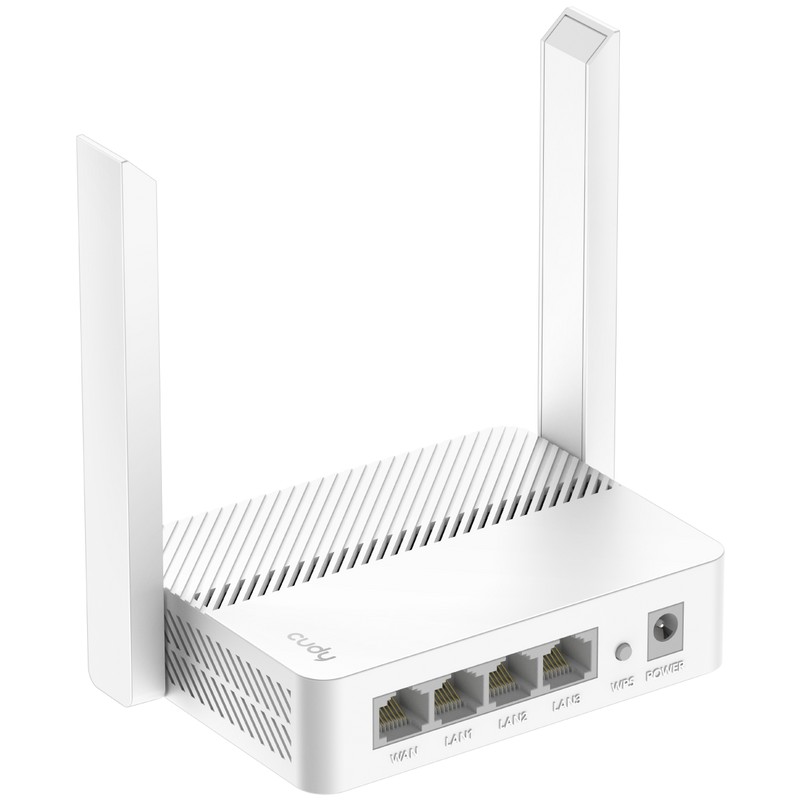

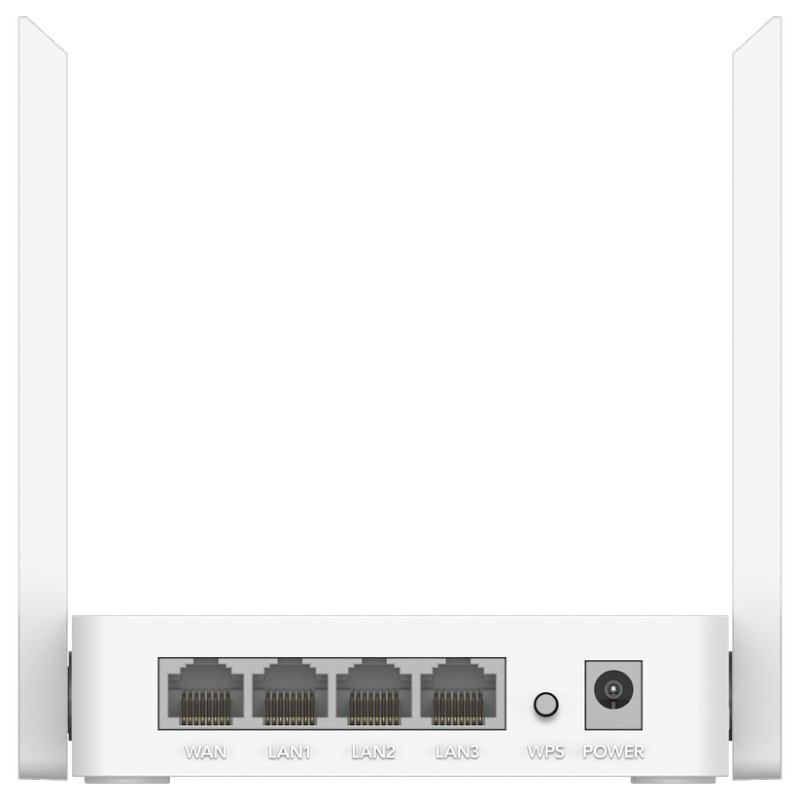

RJ45 Ports |
4 x 10/100 Mbps |
|
Ethernet Notes |
1× WAN port, 3x LAN ports |
|
LED |
System |
|
Physical Buttons |
WPS Button
Reset Button |
|
Power Input |
DC Jack |
|
Power Methods |
DC |
|
DC |
12V 1A |
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|
Max Power Consumption (W) |
8W |
|
Idle Power Consumption (W) |
3W |
|
Environment |
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications: |
FCC, CE |
