APC 2S-14
802.11N products

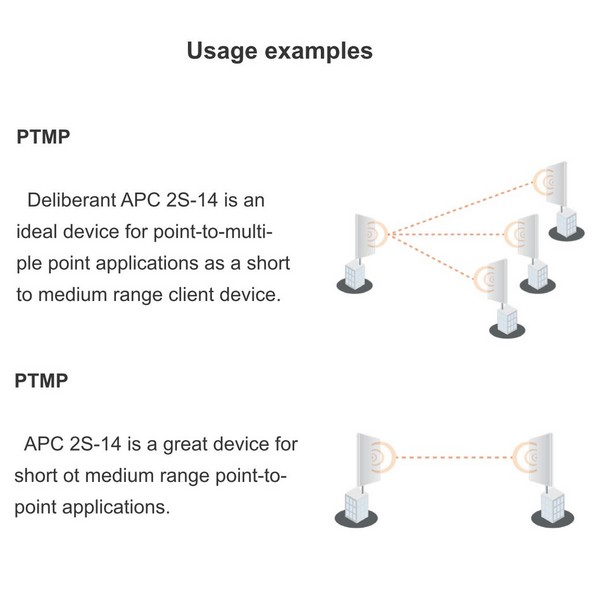

The APC 2S-14 presents a 2.4GHz CPE product with superior performance and flexibility. This product is equipped with an extreme output power (up to 31 dBm) 802.11n radio that was created with a unique hardware design and coupled with a reliable, feature-rich operating system. This small device also has a robust, IP-65 compliant enclosure which is combined with a medium gain corner reflector, and emits EIRP up to 10 W. The APC 2S-14 is generally designed for CPE applications but can also act as an access point thus allowing point to point and point to multipoint network applications.
The included, robust software engine allows the APC 2S-14 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

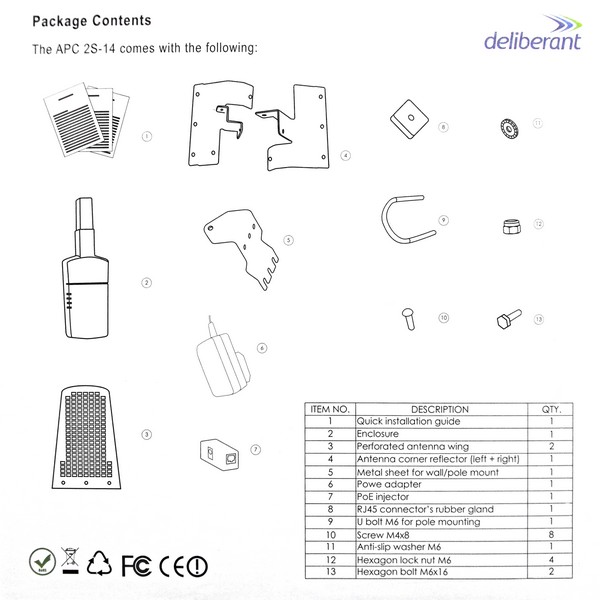

| Package Contents: |
|---|
| 1 x Quick installation Guide
|
| 1 x Enclosure
|
| 2 x Perforated antenna wing
|
| 1 x Antenna corner reflector (left+right)
|
| 1 x Metal sheet for wall/pole mount
|
| 1 x Power adapter
|
| 1 x PoE Injector
|
| 1 x RJ45 connector's rubber gland
|
| 1 x U Bolt M6 for pole mounting
|
| 8 x Screw M4x8
|
| 1 x Anti-slip washer nut M6
|
| 4 x Hexagon lock nut M6
|
| 2 x Hexagon bolt M6x16 |
|
