PoE » Passive Injector » EZ-POEPA01
EZ-POEPA01, Passive PoE Injector D-Shaped - White
[0030][EZ-POEPA01]
Price: 1,95€
 Order or Qty  Price
 > 500€  5+   1,91€
 > 1000€  10+   1,87€
 > 2000€  20+   1,83€
 > 5000€  50+   1,79€
 > 10000€  100+   1,76€
Prices exclude VAT

EZ-POEPA01, Passive PoE Injector D-Shaped - White

In Stock: 20
Order Qty:
UPC:728615667752

The EZ-POEPA01 is a low cost Power Over Ethernet (PoE) Injector to insert PoE power to a CAT5 Ethernet data cable on the unused Ethernet pins 4,5(+) and 7,8(-).

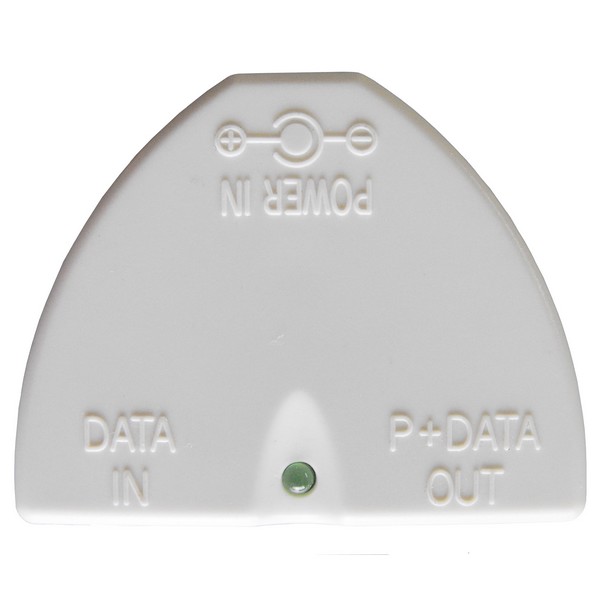

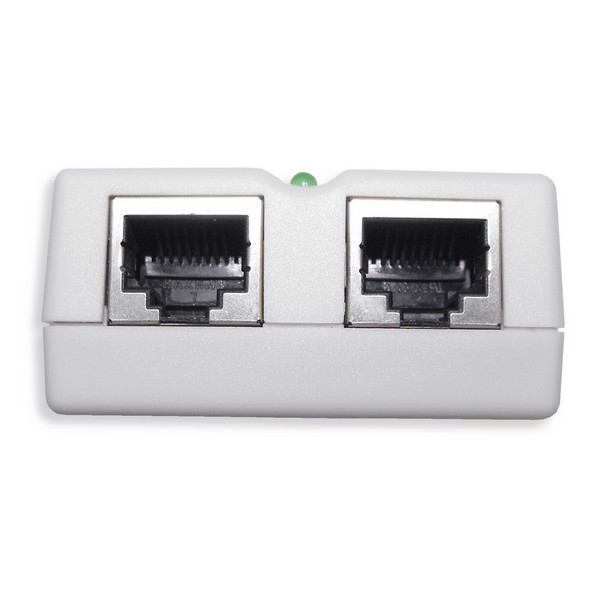

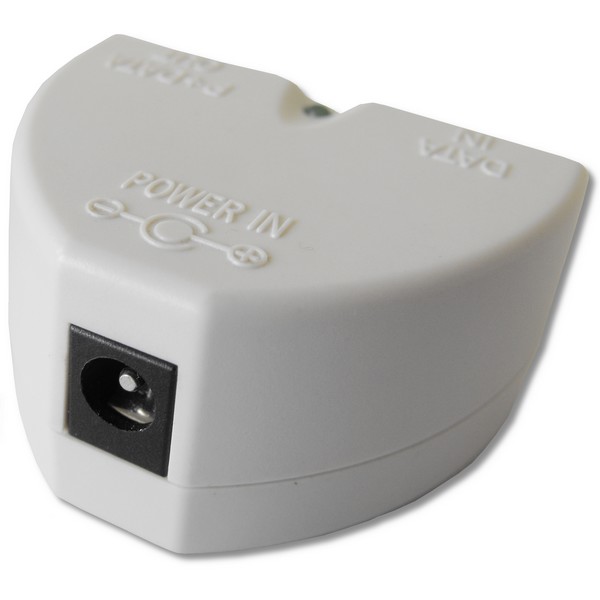

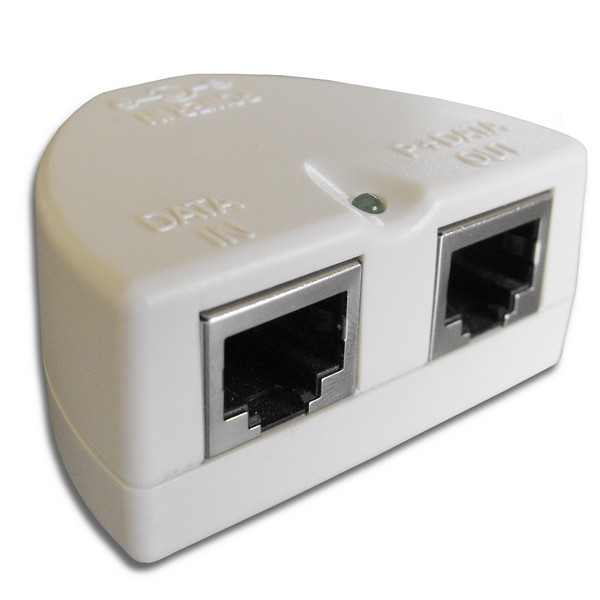

Is made of TPEE material in an aesthetic package and is available with one RJ45 plug to act as “Data-In”, one RJ45 port to act as “PoE+Data out” and one power supply jack.

Also allows you to use your space efficiently when installing your wireless equipment through its small size and high manageabillity.

Moreover, has a power on indicator LED showing when DC power (12V to 48V) is being supplied to the inserter through the DC jack.

Input / Output Specifications :
DC Input Voltage  48V ± 5 %
DC Output Voltage  48V ± 5 %
Max Output Current  0.4A Max.
General Specifications:
Operating Temperature  0oC ~ +50oC
Storage Temperature  -20oC ~ +70oC
Humidity  Up to 90%
Weight 30gr
Dimensions 54x42.6x26mm
LAN POE
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 N.C. V+ 4
5 N.C. V+ 5
6 Rx (-) Rx (-) 6
7 N.C. GND 7
8 N.C. GND 8


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
