Aerial.net :: 9dBi 2.4GHz Outdoor Directional Antenna RP-SMA

Antenna 2.4GHz » Panel » TL-ANT2409A

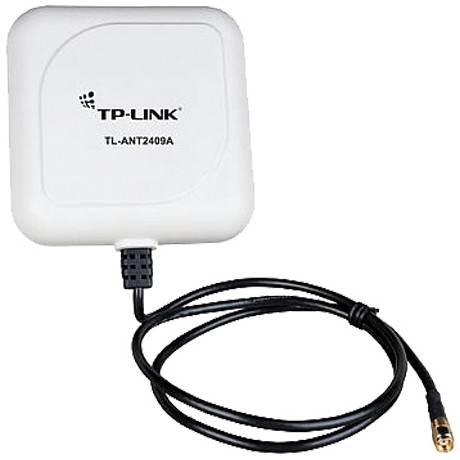

9dBi 2.4GHz Outdoor Directional Antenna RP-SMA
[0656][TL-ANT2409A]

The product is
no longer available

Prices exclude VAT

What This Product Does
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.

Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required.

Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

Features:
* Compliant with 802.11n/b/g (2.4GHz)
* 9dBi signal gain
* RP-SMA Female connector
* 100cm low loss CFD-200 cable

Product Links:
Product page	Datasheet

Specifications
Frequency Range	2.4GHz~2.4835GHz
Impedance	50 Ohms
Gain	9 dBi
VSWR	1.92 : 1 Max
Polarization	Linear, Vertical
Beamwidth (HPBW)	Horizontal: 60° Vertical: 76°
Connector	RP-SMA
Cable	100cm CFD-200 Coaxial Cable
Radiation	Directional
Application	Indoor / Outdoor
Mount Style	Pole Mount / Wall Mount
Dimensions (L x W x H mm)	120 x 120 x 40 mm
Operating Temperature	-10℃~60℃ (14℉~140℉);
Storage Temperature	-40℃~80℃ (-40℉~176℉)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
Safety, Emission and others	CE, FCC, Compliant with RoHS

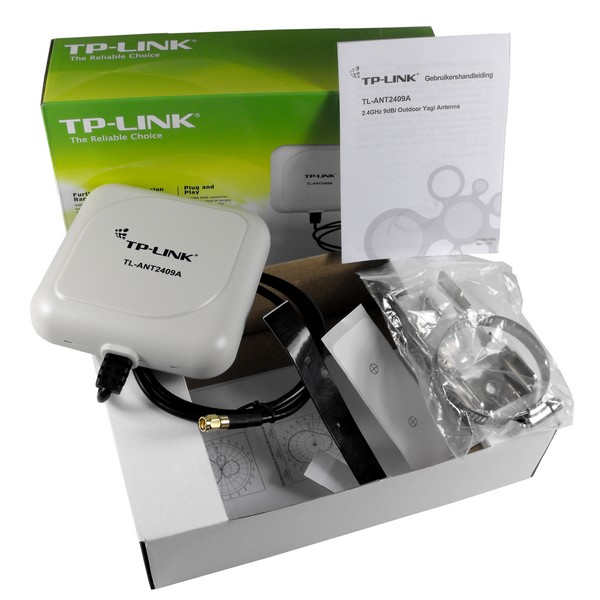

Package Contents:
1 x
1 x Mounting kit
1 x User's Guide

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
