Connector - Adapter » SMA Connector » EZ-SMAM195

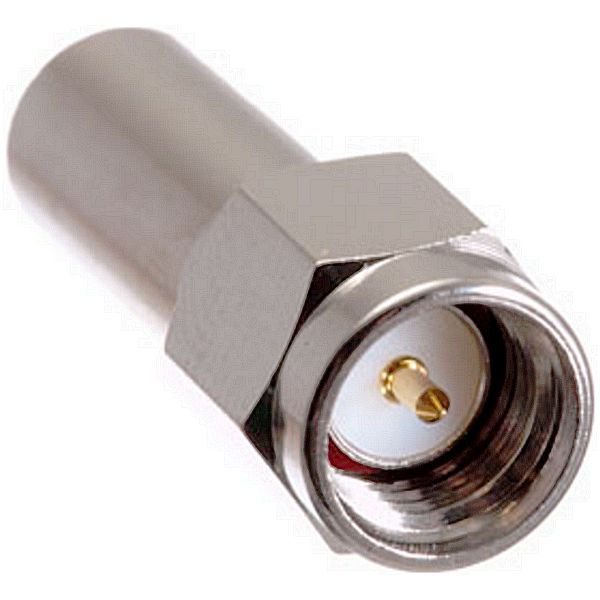

SMA Male Crimp connector for 195, RG-58 series cable
[EZ-SMAM195]
Price: 0,42€
 Order or Qty  Price
 > 500€  5+   0,41€
 > 1000€  10+   0,40€
 > 2000€  20+   0,39€
 > 5000€  50+   0,39€
 > 10000€  100+   0,38€

SMA Male Crimp connector for 195, RG-58 series cable

No Stock
Order Qty:

EZ-SMAM195

SMA Male Crimp connector for 195, RG-58 series cable.

Part Material Finish
Body Brass Nickel
Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a



Specifications:
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min



Connector
SMA
Female thread
Male center pin


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
