5.3GHz-5.8GHz, 24dBi Extreme Solid Dish with Radome
[1041][02-PR-MEX24]
The product is
no longer available
Prices exclude VAT

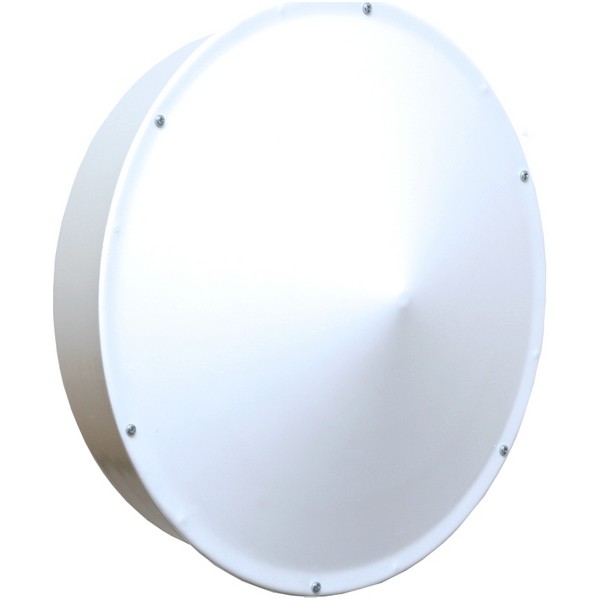

5.3GHz-5.8GHz, 24dBi Extreme Solid Dish with Radome

Description of product:

Professional parabolic antenna with 24dBi gain, it's directivity excels on suppression of rear and side lobes, the heart of the dish consists of a Pacific Wireless irradiator and the antenna mount is made of galvanized steel sheet with a 3mm thickness for maximum strength. Collar improves resistance to  multiple antenna interference at one location. The antenna's mounting range is 40 ° in the vertical plane. Each dish's VSWR is measured.

Technical Specifications:
Gain 24dBi
Frequency 5.3 to 5.8 GHz
Polarization Horizontal, Vertical
Front to Back Ratio >30 db

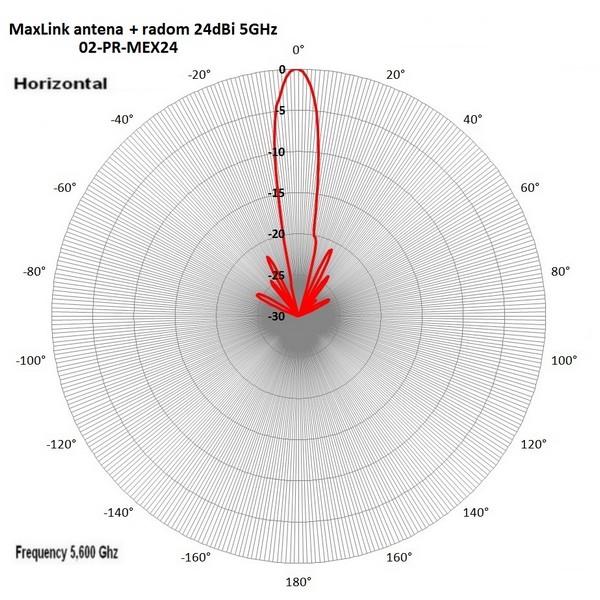

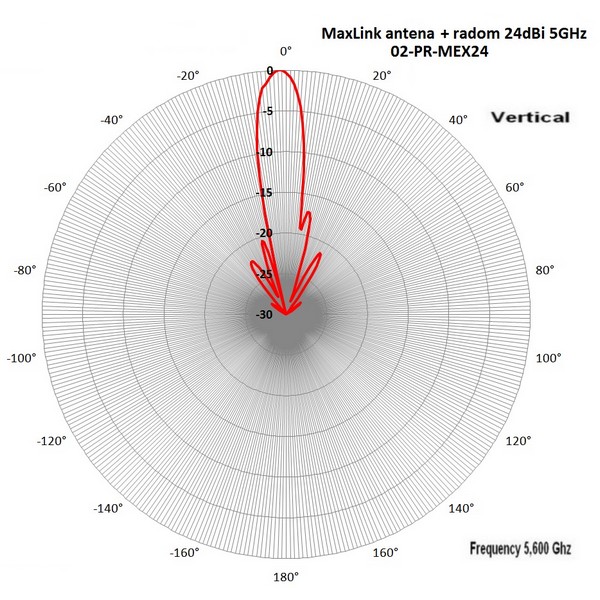

Beam Angle (H/V) 8°/8 °

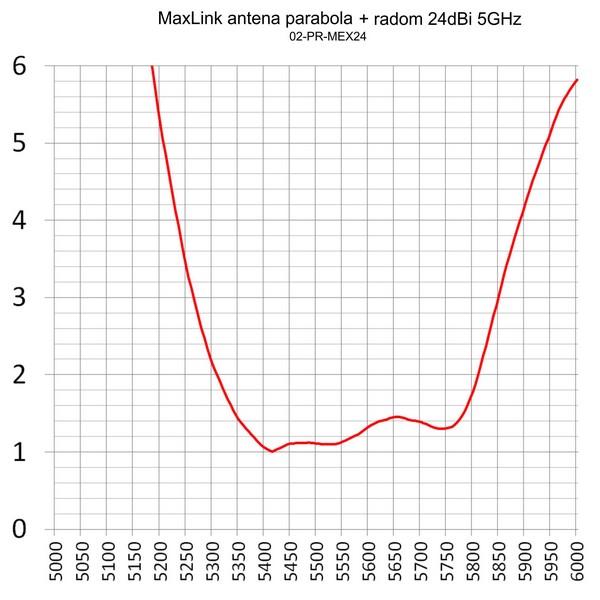

VSWR <1.5
Impedance 50ohm
Completion N-Female
Diameter 445mm
Weight 2.5 kg
Pole Diameter 28-66 mm

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
