 1 LAN + 802.11a/b/g mPCI + IkarusOS

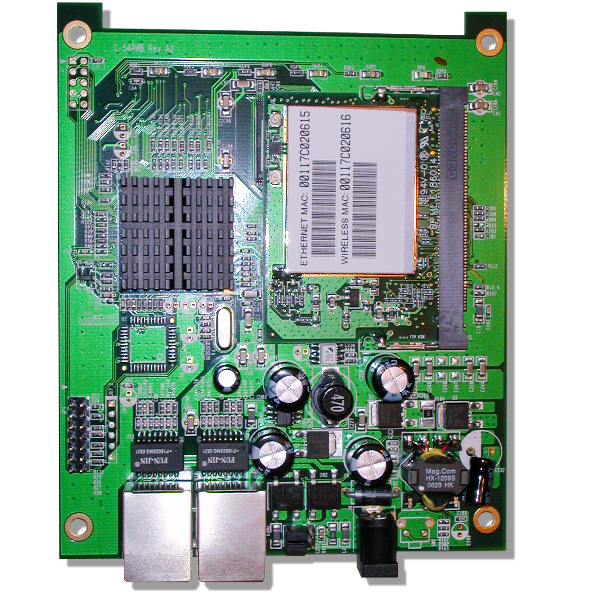

The e-zy.net EZ4 Access Point is a high-performance AP that is designed for enterprise and public access application. Embedded with Atheros chipset, it boasts network robustness, stability and wider coverage for network connectivity. Atheros AR5414 Super-AG technology provides EZ4 with higher throughput at 802.11a (5GHz) vs 802.11g’s congested 2.4GHz band and the ability to operate in more channels.
Bundled with IkarusOS unleashes the board's full potentials. Detailed information on the Operating System can be found here
Equipped with U.FL antenna connectors and Long Range Parameter Settings, EZ4 provides a wider coverage for your network.
Integrated Power over Ethernet (PoE), both passive and/or 802.3af allows EZ4 to be used in areas where power outlets are not readily available.
 IkarusOS Manual
Important : The second LAN port acts as a switch, not a secondary ethernet interface.
|
Output Power
|
| 802.11a |
18dBm@6Mbps, 17dBm@36Mbps, 16dBm@48Mbps, 13dBm@54Mbps |
| 802.11b |
20dBm@1-11Mbps |
| 802.11g |
20dBm@6-24Mbps, 18dBm@36Mbps, 17dBm@48Mbps, 15dBm@54Mbps |
| Receiver Sensitivity |
| 802.11a |
-92 dBm @ 6Mbps, -73 dBm @ 54Mbps |
| 802.11b |
-95 dBm @ 1Mbps, -90 dBm @ 11Mbps |
| 802.11g |
-92 dBm @ 6Mbps, -73 dBm @ 54Mbps |
| Standards |
| 802.11a: |
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps |
| 802.11b: |
11Mbps, 5.5Mbps, 2Mbps, 1Mbps |
| 802.11g: |
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps,1Mbps |
| Frequency range |
| 802.11b/g |
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan) |
| 802.11a |
5.15~5.35GHz, 5.725~5.850GHz (US & Canada)
5.15~5.35GHz, 5.47~5.725GHz (Europe)
4.90~5.00GHz, 5.03~5.091GHz, 5.15~5.25GHz (Japan) |
The EZ4 PCB can be powered by any of the following PoE devices:
|
