Antenna 2.4GHz » Grid » TL-ANT2424B
24dBi 2.4GHz Die Cast Grid, N-Female connector
[0729][TL-ANT2424B]
The product is
no longer available
Prices exclude VAT

24dBi 2.4GHz Die Cast Grid, N-Female connector

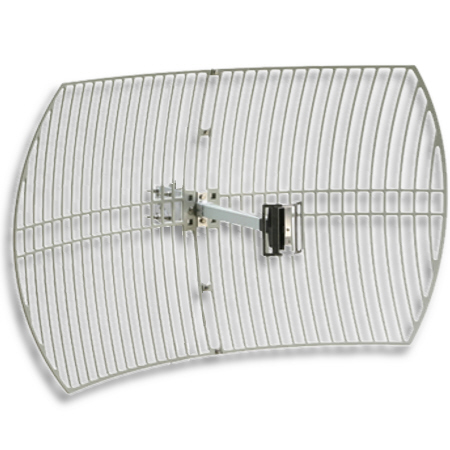

24dBi 2.4GHz Grid Parabolic Antenna

  • 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
  • Weather proof design, suitable for all weather conditions
  • N Female connector, applicable in most outdoor solutions
  • Provides easy installation mounting kits
Product Links:
Product page Product page

Frequency Range
Frequency Range
 2.4GHz~2.5GHz
Impedance 50 Ohms
Gain 24 dBi
VSWR ≤1.5
Polarization Vertical or Horizontal
Horizontal Beamwidth 14°
Vertical Beamwidth 10°
Connector N Female
Cable N/A
F/B Ratio
 >30dB
Application Outdoor
Mount Style Pole Mount
Maximum Input Power
 100W
Lighting Protection DC Ground
Antenna Dimension
 600×1000 mm
Weight
3.5  +/-0.15 KG
Mounting Mast Diameter
Ø30~Ø50 mm
Rated Wind Velocity
216 Km/h

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
